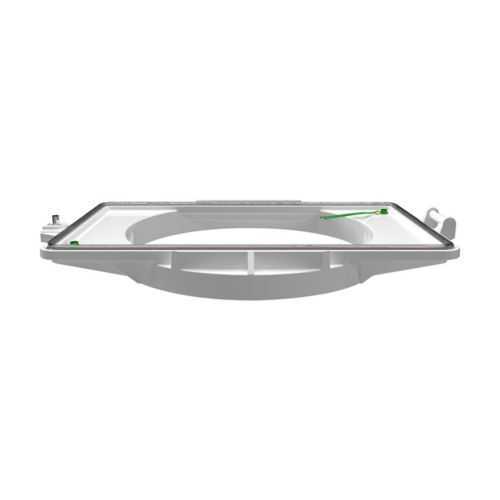

Eaton Crouse-Hinds CHMM4 Mounting Adapter - IP66 Rated
Part Number: CHMM4
Quick Summary
CHMM4 mounting adapter enables VMVL/PVML fixture retrofits in harsh industrial locations. Many users struggle with corrosion resistance and safe operation when upgrading aging lighting in hazardous areas. This adapter delivers IP66, NEMA 4X protection and NEC/CEC compliance for Hazardous/Classified Locations, ensuring a durable, code-compliant retrofit. By leveraging copper-free aluminum and a proven GE H2 Filtr-Gard retrofit path, it minimizes weight, simplifies procurement, and reduces maintenance cycles. engineers and procurement teams gain confidence from a robust, standards-aligned solution that scales across multiple facilities while preserving existing VMV mounting configurations and layout.
Product Information
Extended Description
CHMM4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL/PVML mounting module adapter, Copper-free aluminum, To retrofit to General Electric H2 Filtr-Gard fixtures
Product Name
Eaton Crouse-Hinds series Champ VMVL/PVML mounting module adapter
Catalog Number
CHMM4
Product Length/Depth
15.79 in
Product Height
2.25 in
Product Width
10.24 in
Product Weight
2.8 lb
UPC
662276962996
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Type
To retrofit to General Electric H2 Filtr-Gard fixtures
Material
Copper-free aluminum
Mounting Adapters for VMV and VMVL flyer
Crouse-Hinds series CHMM Mounting Adapters catalog page
IF 1922 - CHMM4 Top Hat Adapter
Eaton Specification Sheet - CHMM4
Copper-free aluminum construction provides excellent corrosion resistance and a lighter overall assembly, reducing installation effort and logistics costs while extending service life in challenging environments. This translates to lower maintenance frequency and fewer replacement parts, a tangible total-cost-of-ownership improvement for facilities with outdoor or damp locations. IP66 and NEMA 4X ratings protect internal components from dust, water ingress, and corrosive elements, delivering reliable performance in wash-down zones and harsh industrial settings. For hazardous locations, the NEC/CEC classifications Class I Division 2, Class II Division 1, and Class III ensure compliance with regulatory requirements, enabling safe retrofits without extensive enclosure changes. The CHMM4 is designed to retrofit General Electric H2 Filtr-Gard fixtures, simplifying inventory management and accelerating project timelines by leveraging existing mounting footprints. With VMVL/VMV compatibility, installation aligns with current Champ-series infrastructure, reducing the need for rework and enabling faster commissioning. Documentation and installation resources further shorten field time, supporting technicians with clear, standards-driven guidance, warranty protection, and consistent performance across deployments.
Get a Quick Quote for a Eaton Crouse-Hinds CHMM4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CHMM4?
Enquire Now
FAQs
CHMM4 is a mounting module adapter designed to retrofit Champ VMVL/VMV fixtures and is specified to work with General Electric H2 Filtr-Gard assemblies. Its copper-free aluminum housing matches the VMVL mounting footprint, enabling a straightforward upgrade path without reconfiguring existing brackets or electrical connections.
CHMM4 carries IP66 protection and a NEMA 4X enclosure rating, suitable for harsh environments. It also supports NEC/CEC hazardous-location classifications, including Class I Division 2, Class II Division 1, and Class III, enabling safe operation in hazardous/classified locations.
It serves as a retrofit mounting adapter that enables GE H2 Filtr-Gard fixtures to be installed on Champ VMVL/VMV systems in hazardous locations, ensuring compliance and trusted performance in areas classified as Hazardous/Classified Locations.
Installation follows the CHMM4 mounting adapter procedure outlined in Eaton’s CHMM literature. Refer to IF 1922 Top Hat Adapter instructions and the CHMM mounting adapters catalog page for step-by-step guidance, hardware compatibility, and safety notes to accelerate field commissioning.
By enabling a code-compliant retrofit with copper-free aluminum and familiar VMVL/VMV mounting, CHMM4 reduces project risk, material variance, and maintenance costs while shortening installation cycles and extending fixture service life in demanding environments.
