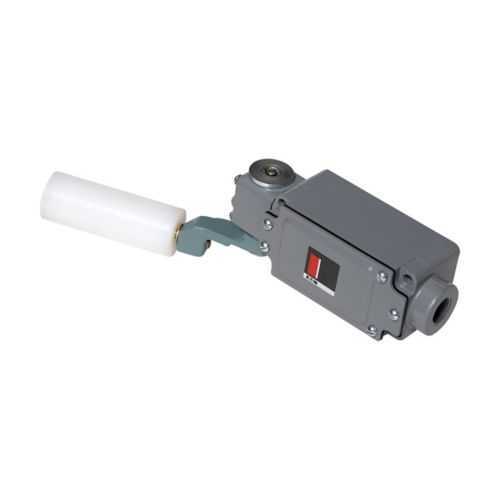

Eaton CHW93058 Conveyor Belt Alignment Switch - Zone 21/22
Part Number: CHW93058
Manufacturer
Eaton Crouse-Hinds
Part number
CHW93058
Quick Summary
The Eaton CHW93058 Conveyor Belt Alignment Switch provides reliable belt misalignment detection for industrial conveyors in hazardous locations. This addresses a common maintenance challenge where undetected skew accelerates belt wear, causes spine damage, and triggers costly downtime. It carries IEC-based certifications and Zone 21/22 hazardous location ratings, ensuring compliance and safe operation in demanding environments. With its two normally open and two normally closed contacts in a compact two-pole design, the switch integrates smoothly with existing safety circuits while delivering clear diagnostics. This combination translates to improved uptime, reduced maintenance costs, and greater overall reliability for belt-driven systems in challenging industrial settings.
Product Information
Extended Description
CHW93058 Eaton Crouse-Hinds: Eaton Crouse-Hinds series AFA IEC conveyor belt alignment switch, Two normally open, two normally closed, Two-pole
Product Name
Eaton Crouse-Hinds series AFA IEC conveyor belt alignment switch
Catalog Number
CHW93058
Product Length/Depth
320.5 mm
Product Height
100.5 mm
Product Width
61.5 mm
Product Weight
1.2 kg
UPC
662276524194
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 22
Number Of Poles
Two-pole
Contact arrangement
Two normally open, two normally closed
Feature → Business Impact → Application: The CHW93058 uses a two-pole configuration with four contacts (two normally open, two normally closed), enabling flexible control schemes and safer start/stop logic for conveyors operating in hazardous zones. This reduces wiring complexity and provides robust interlock capabilities, which translates to fewer wiring errors and quicker commissioning on site. Application: suited for IEC-based conveyor lines in chemical plants or mining operations where safety and reliability are critical. Feature → Business Impact → Application: Precise dimensions (320.5 mm length, 100.5 mm height, 61.5 mm width) and a compact footprint maximize mounting options in space-constrained enclosures, facilitating retrofit projects and minimizing enclosure modifications. Application: retrofits and new installations in limited-space switchgear areas. Feature → Business Impact → Application: Area classification of Hazardous/Classified Locations (Zone 21/22) ensures compliance with industry regulations, reducing regulatory risk and potential downtime due to nonconformant components. Application: installations in potentially explosive atmospheres where safety certification matters. Feature → Business Impact → Application: Durable, purpose-built design for AFA IEC conveyor switches improves service life and lowers maintenance costs by resisting environmental stressors typical of harsh plants. Application: continuous operation in outdoor or wet plant environments. Feature → Business Impact → Application: Quickly replaceable CO/NC contacts and clear diagnostic outputs shorten maintenance cycles and speed fault isolation. Application: field service scenarios aiming for minimal conveyor downtime.
