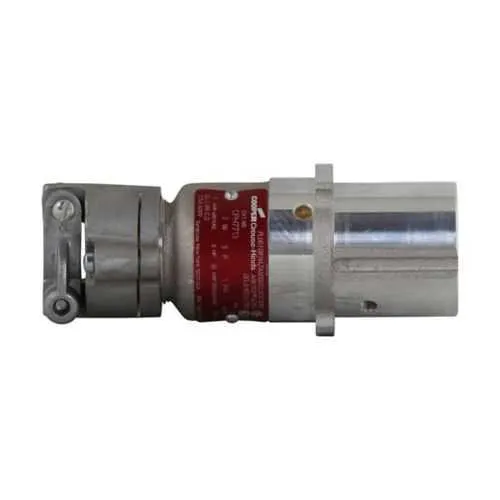

Eaton CPH7714 Arktite Plug - Class I Div 1 Hazardous
Part Number: CPH7714
Quick Summary
CPH7714 Arktite plug provides rugged, explosion-proof termination for hazardous locations in industrial control panels. Engineers often struggle with reliable sealing, cable retention, and quick, maintenance-friendly installs in harsh environments. It meets NEC/CEC standards and is rated for Class I, Division 1 and Division 2 hazardous locations, ensuring compliance across North American sites. The copper-free aluminum housing paired with brass-contact cores delivers durable performance while reducing weight and inventory complexity. This combination supports safer field workmanship and faster commissioning, aligning with procurement goals and long-term operational efficiency.
Product Information
Extended Description
CPH7714 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CPH plug, 7A/30A, 0.375-0.875" cable diameter, Three-wire, four-pole, Brass or copper contacts, Style 2, 1 HP/3 HP, Copper-free alum, 3-phase, Mechanical cable grip and neoprene bushing, 120-240/480 Vac
Product Name
Eaton Crouse-Hinds series Arktite CPH plug
Catalog Number
CPH7714
Product Length/Depth
6 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
1.23 lb
UPC
782274173306
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
Grounding style
Style 2
Configuration
Three-wire, four-pole
Phase
Three-phase
Horsepower
1 hp/3 hp
Amperage Rating
7A/30A
Voltage rating
120-240 Vac/480 Vac
Cable diameter
0.375-0.875 in
Material
Copper-free aluminum
Contact material
Brass Hand-drawn copper
Special features
Mechanical cable grip and neoprene bushing
Arktite CES and CPH Explosionproof Receptacles and Plugs catalog page
Arktite CES and CPH Explosionproof Receptacles and Plugs Canadian certification
Arktite CES and CPH Explosionproof Receptacles and Plugs Canadian certification
IF 1473 - Arktite CPH Plug - CPH7713, CPH7714
Eaton Specification Sheet - CPH7714
Three-wire, four-pole configuration with Style 2 grounding improves fault isolation and simplifies wiring in compact control panels. This reduces mis-wiring risk and speeds setup in harsh environments where failures are costly. Ideal for three-phase power distribution in hazardous locations such as chemical plants, oil refineries, and other industrial settings. Amperage rating of 7A/30A and horsepower ratings of 1 hp/3 hp deliver suitable overload tolerance for motor control and load switching without oversized hardware. The extended voltage range of 120-240 Vac/480 Vac supports mixed systems, reducing inventory complexity while ensuring code compliance. Copper-free aluminum housing keeps weight down and simplifies handling during field installation, while brass contacts ensure robust conductivity and reliability under vibration. This combination supports longer service life with fewer contact failures in demanding environments. Inclusive mechanical grip and neoprene bushing secure varying cable diameters (0.375-0.875 in) and resist dust, moisture, and chemicals, lowering maintenance costs and preventing loosened connections. Certification for Hazardous/Classified Locations and NEC/CEC compliance with Class I Div 1 and Div 2 ratings enables safe, compliant installations across North America. Its compact dimensions and 1.23 lb weight ease mounting in crowded panels and reduce panel space usage.
Get a Quick Quote for a Eaton Crouse-Hinds CPH7714
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPH7714?
Enquire Now
FAQs
The CPH7714 is designed for three-phase, three-wire four-pole connections with 120-240 Vac or 480 Vac and a cable diameter range of 0.375-0.875 inches. It supports three-phase motor loads up to 1 hp/3 hp and 7A/30A, enabling straightforward integration into common control panels without adapters.
It provides a 7A/30A current rating, 1 hp/3 hp horsepower rating, and a voltage rating of 120-240 Vac/480 Vac. The configuration is three-wire, four-pole with Style 2 grounding, suitable for multi-voltage, multi-horsepower industrial applications, including hazardous environments, while maintaining NEC/CEC compliance.
The CPH7714 is rated for Hazardous/Classified Locations with NEC/CEC standards and Class I, Division 1 and Division 2 ratings. It carries area classifications for hazardous locations, supporting safe operation in chemical plants, oil and gas facilities, and other demanding industrial settings.
Copper-free aluminum housing reduces weight for easier field handling, while brass contacts ensure reliable conductivity. Mechanical cable grip and neoprene bushing accommodate 0.375-0.875 in cables, delivering secure retention and improved ingress protection. The unit is compatible with Arktite CES and CPH plugs, simplifying sourcing, maintenance, and spares management.
Faster commissioning and reduced labor costs come from simplified wiring and a compact footprint. Durable construction and robust sealing minimize maintenance and downtime in hazardous locations, while NEC/CEC compliance reduces risk. Availability of datasheets and installation instructions accelerates procurement and onboarding, delivering a lower total cost of ownership over the product life cycle.
