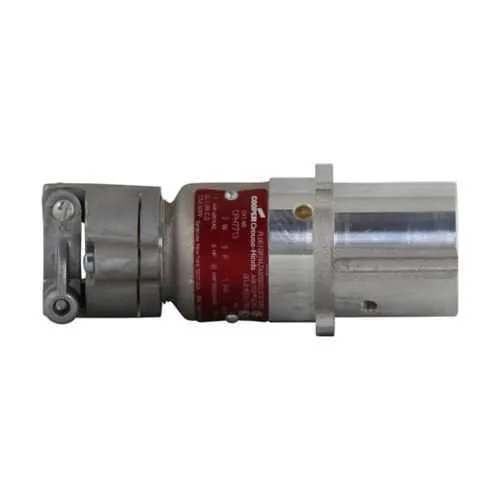

Eaton Crouse-Hinds CPH7913 Arktite Plug - Class I/Division 1
Part Number: CPH7913
Quick Summary
CPH7913 is an Eaton Crouse-Hinds Arktite plug used for secure, explosion-proof motor and equipment connections in hazardous locations. This plug addresses common field challenges with sealing, strain relief, and reliable contact under demanding conditions. With a copper-free aluminum housing, Style 2 grounding, and a two-wire, three-pole configuration, the unit supports single-phase motors up to 1.5 HP and accepts 0.875–1.375 in cable diameters. It is rated for 120–240 Vac or 480 Vac and meets NEC/CEC standards for Class I, Division 1 and Division 2 areas. The combination of robust construction and clearly defined ratings helps maintain uptime while reducing wiring complexity in rugged industrial environments. For procurement teams, the plug offers predictable performance, quick installation, and long service life in hazardous locations.
Product Information
Extended Description
CPH7913 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CPH plug, 7A/30A, 0.875-1.375" cable diameter, 2-wire, 3-pole, Brass or copper contacts, Style 2, 0.5 HP/1.5 HP, Copper-free alum, Single-phase, Mechanical cable grip and neoprene bushing, 120-240/480 Vac
Product Name
Eaton Crouse-Hinds series Arktite CPH plug
Catalog Number
CPH7913
Product Length/Depth
6.44 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
1.6 lb
UPC
782274173603
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
Grounding style
Style 2
Configuration
Two-wire, three-pole
Phase
Single-phase
Horsepower
0.50 hp, 1.50 hp
Amperage Rating
7A/30A
Voltage rating
120-240 Vac/480 Vac
Cable diameter
0.875-1.375 in
Material
Copper-free aluminum
Contact material
Hand-drawn copper Brass
Special features
Mechanical cable grip and neoprene bushing
Arktite CES and CPH Explosionproof Receptacles and Plugs catalog page
Arktite CES and CPH Explosionproof Receptacles and Plugs UL certification
Arktite CES and CPH Explosionproof Receptacles and Plugs UL certification
IF 1474 - Arktite CPH Plug - CPH7913, CPH7914
Eaton Specification Sheet - CPH7913
Feature copper-free aluminum housing with Style 2 grounding provides corrosion resistance and lighter weight for easier handling and installation in tough environments. Business impact: reduced maintenance costs and improved uptime in offshore, chemical, or mining facilities. Application: suited for single-phase motor control circuits in hazardous locations where robust enclosure integrity is critical. Feature 7A/30A amperage with a two-wire, three-pole configuration aligns with common motor sizes, enabling seamless integration with existing starters and drives. Business impact: lowers spare-part variety and simplifies procurement, while ensuring compliant power delivery for 0.5–1.5 HP equipment. Application: compact controls and small motors in Class I/Division 1 spaces. Feature mechanical cable grip and neoprene bushing deliver active sealing against dust, moisture, and vibration. Business impact: reduces leakage paths and extends service life, driving lower maintenance cycles. Application: high-vibration conveyors and pump systems in hazardous locations. Feature cable diameter compatibility of 0.875–1.375 in supports standard field cables, improving install speed and consistency. Application: straightforward replacement or-upgrade in established plant layouts. Feature NEC/CEC compliance with Hazardous/Classified Locations ratings ensures regulatory alignment and safer operation. Business impact: substantiates safety case, simplifies audits, and avoids process interruptions. Application: engineering specification for job bids and compliance documentation.
Get a Quick Quote for a Eaton Crouse-Hinds CPH7913
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPH7913?
Enquire Now
FAQs
Yes. The CPH7913 is specified for a two-wire, three-pole configuration in single-phase systems, making it compatible with typical motor starters and controllers used in hazardous locations. It supports 0.5 to 1.5 HP motors and accepts cables within the 0.875 to 1.375 inch diameter range, enabling straightforward field wiring and reliable connections under vibration and dust. Proper torque and sealing procedures should be followed to maintain enclosure integrity.
The CPH7913 carries NEC/CEC compliance with Hazardous/Classified Locations ratings and NEC hazardous ratings for Class I, Division 1 and Division 2. These certifications verify suitability for explosive atmospheres and ensure conformance to recognized safety standards. When specifying for a project, reference these ratings to satisfy regulatory and customer requirements, and maintain proper documentation for audits and inspections.
The plug is designed for cable diameters from 0.875 to 1.375 inches, supporting common field cables used in motor and control circuits. For mounting, ensure a secure mechanical grip and proper neoprene bushing seating to maintain environmental seal. Verify compatibility with single-phase feeds and confirm that the conduit or gland entries remain sealed to preserve explosion-proof integrity in hazardous locations.
Copper-free aluminum housing offers corrosion resistance and lighter weight without sacrificing mechanical strength, which is advantageous in corrosive environments like chemical plants or offshore facilities. The Style 2 grounding arrangement provides reliable earth continuity, while the material choice helps reduce weight on overhead or rotor-mounted assemblies, improving handling and installation time while maintaining符合 safety and regulatory expectations.
The Arktite CPH7913 plug reduces maintenance through robust sealing (neoprene bushing and mechanical cable grip) that minimizes ingress of dust and moisture, lowering cleaning and replacement needs. Its rugged build, combined with NEC/CEC compliance, streamlines maintenance planning, reduces unplanned downtime, and supports longer service life for motors and control systems in hazardous locations, yielding a favorable total cost of ownership over time.
