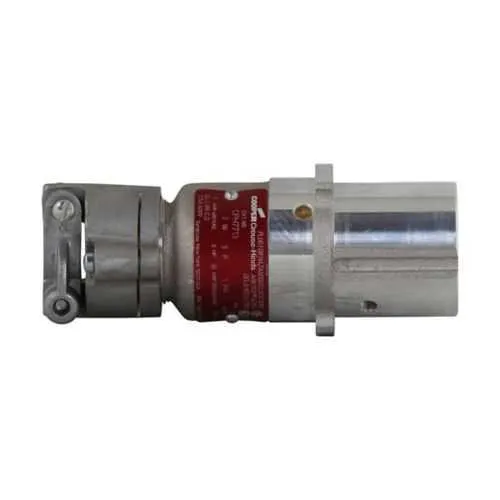

Eaton Crouse-Hinds CPH7914 Arktite Plug - HazLoc
Part Number: CPH7914
Quick Summary
The Eaton Crouse-Hinds CPH7914 Arktite plug is an explosion-proof, three-phase power connector designed for hazardous locations. This solution addresses the common challenge of maintaining safe, reliable power in environments with dust, moisture, or flammable atmospheres where standard plugs fail to meet code. It carries NEC/CEC classifications with Class I, Division 1 and 2 ratings, and Canadian certifications, providing robust compliance for global installations. The design blends a copper-free aluminum housing with a mechanical cable grip and neoprene bushing, delivering durable installation and long-term performance. With a versatile voltage range and motor compatibility, it supports standardized power distribution while reducing maintenance costs and downtime across industrial facilities.
Product Information
Extended Description
CPH7914 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CPH plug, 7A/30A, 0.875-1.375" cable diameter, Three-wire, four-pole, Brass or copper contacts, Style 2, 1 HP/3 HP, Copper-free alum, 3-phase, Mechanical cable grip and neoprene bushing, 120-240/480 Vac
Product Name
Eaton Crouse-Hinds series Arktite CPH plug
Catalog Number
CPH7914
Product Length/Depth
6.44 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
1.7 lb
UPC
782274173702
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
Grounding style
Style 2
Configuration
Three-wire, four-pole
Phase
Three-phase
Horsepower
1 hp/3 hp
Amperage Rating
7A/30A
Voltage rating
120-240 Vac/480 Vac
Cable diameter
0.875-1.375 in
Material
Copper-free aluminum
Contact material
Hand-drawn copper Brass
Special features
Mechanical cable grip and neoprene bushing
Arktite CES and CPH Explosionproof Receptacles and Plugs catalog page
Arktite CES and CPH Explosionproof Receptacles and Plugs Canadian certification
Arktite CES and CPH Explosionproof Receptacles and Plugs Canadian certification
IF 1474 - Arktite CPH Plug - CPH7913, CPH7914
Eaton Specification Sheet - CPH7914
Copper-free aluminum housing delivers corrosion resistance and lighter weight, which reduces handling costs and installation time while improving lifespan in harsh environments. This translates to lower total cost of ownership and fewer spare-part requirements on site. The three-wire, four-pole configuration with Style 2 grounding simplifies wiring, minimizes field wiring errors, and enhances fault tolerance for critical equipment such as pumps and fans in hazardous areas. In addition, the mechanical cable grip and neoprene bushing provide dependable strain relief and environmental sealing, reducing ingress and extending connector life in oily or dusty plants. A cable diameter range of 0.875 to 1.375 inches accommodates common field cables, enabling rapid field upgrades without rework or adapters. The comprehensive electrical ratings—7A/30A, 120–240 VAC, and 480 VAC for three-phase systems—support small to medium motor loads up to 1 HP/3 HP, delivering reliable performance across diverse line configurations. Compliance features include NEC/CEC standards and NEC hazardous ratings for Class I Div 1 and Div 2, along with area classification for hazardous/classified locations, ensuring procurement alignment with safety regulations while simplifying audits and inspections. These capabilities combine to reduce downtime, streamline installation, and improve overall plant safety and productivity for industries such as chemical processing, oil and gas, and mining.
Get a Quick Quote for a Eaton Crouse-Hinds CPH7914
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPH7914?
Enquire Now
FAQs
For installation, ensure a compatible three-wire, four-pole wiring scheme and connect to a three-phase supply up to 480 VAC. Use the mechanical cable grip and neoprene bushing to achieve proper strain relief and sealing. Confirm cable diameter falls within 0.875 to 1.375 inches and follow NEC/CEC wiring practices for hazardous locations.
The plug supports 7A/30A, with voltage ratings of 120-240 VAC and 480 VAC for three-phase systems. It is designed for 1 HP/3 HP motor loads, with Style 2 grounding and a three-wire, four-pole configuration, suitable for demanding industrial drives in hazardous environments.
Yes. The CPH7914 carries NEC hazardous ratings for Class I Division 1 and Division 2, and is intended for hazardous/classified locations. Its rugged construction and Sealing features align with industry requirements for dangerous-area installations, helping meet regulatory and safety expectations.
The plug adheres to NEC/CEC standards and NEC hazardous ratings for Class I Div 1/2. It also carries Canadian certification validation and UL/CSA recognition for hazardous locations, ensuring cross-border compliance and simplified procurement on multinational projects.
Its copper-free aluminum housing reduces corrosion-related maintenance and weight eases handling. The integrated mechanical grip and neoprene bushing protect against ingress, lowering repair frequency. Standardized electrical ratings and mounting footprint minimize downtime during motor changes or expansions, delivering longer service life and improved return on investment for plants with aggressive uptime targets.
