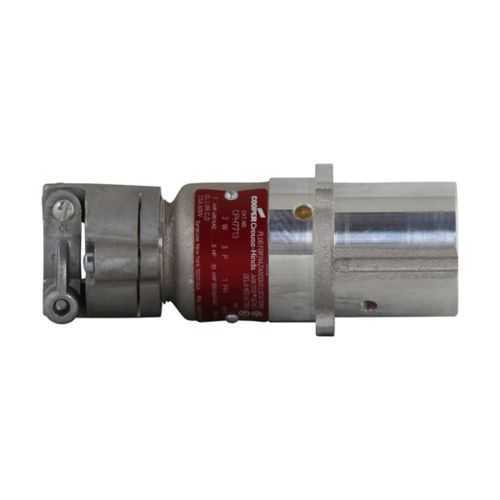

Eaton Crouse-Hinds CPH7934 Plug - Class I, Division 1
Part Number: CPH7934
Quick Summary
CPH7934 is a rugged explosion-proof plug for three-phase power in hazardous locations, designed for reliable motor start-up in demanding environments. End users often endure downtime from inadequate connectors in Class I, Division 1 facilities; the Arktite CPH7934 delivers rugged enclosure, mechanical cable grip, and neoprene bushing to resist vibration and seal against dust and moisture. UL certification for hazardous locations and NEC/CEC compliance—plus area classifications for Hazardous/Classified Locations—underscore its regulatory readiness. Copper-free aluminum housing reduces weight without compromising strength, while a three-wire, four-pole configuration teams with 120-240 Vac or 480 Vac supplies to deliver up to 5 hp reliably. This plug integrates with Arktite receptacles for streamlined installation and improved maintenance in industrial plants.
Product Information
Extended Description
CPH7934 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CPH plug, 30A/60A, 0.875-1.375" cable diameter, Three-wire, four-pole, Brass or copper contacts, Style 2, 5 HP, Copper-free alum, 3-phase, Mechanical cable grip and neoprene bushing, 120-240/480 Vac
Product Name
Eaton Crouse-Hinds series Arktite CPH plug
Catalog Number
CPH7934
Product Length/Depth
8.13 in
Product Height
3.06 in
Product Width
3.06 in
Product Weight
2.6 lb
UPC
782274173900
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
Grounding style
Style 2
Configuration
Three-wire, four-pole
Phase
Three-phase
Horsepower
5 hp
Amperage Rating
30A/60A
Voltage rating
120-240 Vac/480 Vac
Cable diameter
0.875-1.375 in
Material
Copper-free aluminum
Contact material
Hand-drawn copper Brass
Special features
Mechanical cable grip and neoprene bushing
Arktite CES and CPH Explosionproof Receptacles and Plugs catalog page
Arktite CES and CPH Explosionproof Receptacles and Plugs UL certification
Arktite CES and CPH Explosionproof Receptacles and Plugs UL certification
Eaton Specification Sheet - CPH7934
Feature: Copper-free aluminum housing provides a strong, lightweight enclosure. Business impact: Reduces total installed weight and maintenance costs, while resisting corrosion in damp or chemical-rich areas. Application: Suitable for outdoor installations and washdown-sensitive environments in automotive, chemical, and metal-processing plants. Feature: Three-wire, four-pole configuration for three-phase power. Business impact: Improves safety margins and speeds panel wiring during commissioning. Application: Ideal for three-phase motors up to 5 hp across manufacturing lines. Feature: Mechanical cable grip and neoprene bushing deliver vibration resistance and ingress sealing. Business impact: Minimizes loosening, reduces maintenance, and extends service intervals. Application: Harsh industrial settings with high vibration. Feature: Wide voltage rating of 120-240 Vac / 480 Vac provides flexible, cross-site compatibility. Business impact: Lowers inventory and procurement costs. Application: Plants with multi-voltage motors. Feature: UL hazardous-location certification and NEC/CEC compliance with area classifications ensure regulatory readiness. Business impact: Accelerates approvals and minimizes project delays. Application: Class I Div 1 and Div 2 installations in chemical, oil, and refining facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CPH7934
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPH7934?
Enquire Now
FAQs
The CPH7934 uses a mechanical cable grip and neoprene bushing to seal cables and resist vibration, with mounting provisions compatible with Arktite receptacles. Its 8.13-inch length and 3.06-inch square footprint support secure, tool-friendly installation in control cabinets or exterior enclosures while meeting NEC/CEC requirements. This reduces commissioning time and simplifies field wiring for technicians working in confined spaces.
Likewise, it is a three-wire, four-pole plug rated 30A/60A, with voltage options of 120-240 Vac or 480 Vac and a three-phase configuration. This enables clean, safe motor connections and straightforward integration with standard drives and starters. The dual-voltage capability helps reduce stocking requirements while maintaining performance across multiple plant sections.
Yes. The copper-free aluminum housing and neoprene sealing provide corrosion resistance and ingress protection against dust, moisture, and washdown environments in challenging industrial settings, while the Arktite line is specifically engineered for hazardous locations with reliable moisture seals and rugged cable management. This reduces field service calls and helps maintain uptime in oil, chemical, and manufacturing facilities.
UL certification for hazardous locations confirms suitability for Class I environments, while NEC/CEC compliance and clearly defined area classifications of Hazardous/Classified Locations support safe, compliant installations. The plug is designed to meet both national and cross-border electrical codes, enabling quick procurement and reducing risk during audits. Certified by UL and CSA as well further strengthens supplier credibility.
The rugged build and vibration-resistant grip reduce failed connections and downtime, lowering maintenance frequency and replacement costs. Its cross-volt compatibility minimizes inventory, while UL/NEC/CEC compliance reduces project delays and speeds commissioning across multi-site operations. Additionally, the plug's long service life and minimal rework lower lifecycle costs, while straightforward compatibility with Arktite receptacles reduces field wiring errors during expansion projects.
