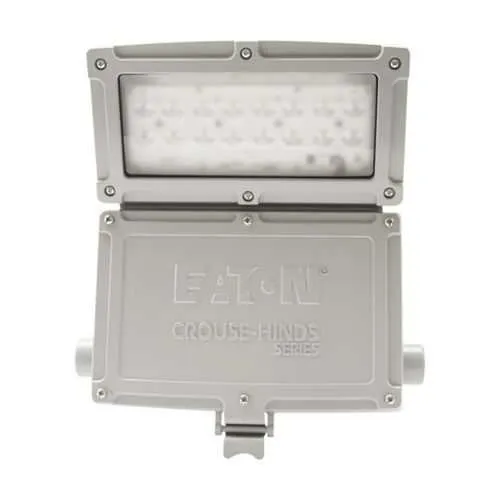

Eaton CPMV3L-UNV1 LED Wall Pack - IP66/NEMA 4X
Part Number: CPMV3L-UNV1
Quick Summary
The CPMV3L-UNV1 LED wall pack from Eaton Crouse-Hinds provides high-efficiency exterior illumination for hazardous locations. Engineers and procurement teams often wrestle with bulky, unreliable lighting in harsh environments that cause downtime and maintenance costs. It delivers robust protection with IP66, NEMA 4X, and NEC/CEC compliance for Class I, II, and III hazardous locations, ensuring safe, code-compliant operation. The fixture supports dimmable drivers, operates across 120–277 VAC (125–250 VDC), and delivers about 3000 lumens at 111 lm/W from a 30 W source. Compact yet durable, it enables easier mounting with a 3/4-inch entry and a yoke mount, offering energy efficiency alongside long-term cost savings for industrial facilities.
Product Information
Extended Description
CPMV3L-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.09A, Cool white, Dimmable driver, 3/4" entry, 70W equiv, 50/60 Hz, Tempered glass lens, 3000 lumens, 111 lm/W, Die cast alum, Yoke mount, 7x6 distribution, 120-277 Vac, 125-250 Vdc, 30W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV3L-UNV1
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276936232
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
3000
Lumens per watt
111
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
120-277 Vac, 125-250 Vdc
Frequency rating
50/60 Hz
Lens material
Tempered glass
Wattage
30W
Amperage Rating
0.09 A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
70W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV3L-UNV1
High-output efficiency: The CPMV3L-UNV1 delivers 3000 lumens at 111 lm/W from a compact 30 W driver, reducing energy consumption and cooling needs while maintaining bright, uniform exterior illumination for outdoor industrial spaces. This translates to lower operating costs and extended service life in petrochemical plants, refineries, and warehouses where reliability matters. Rugged build for harsh environments: Die-cast aluminum housing with tempered glass lens, combined with IP66 and NEMA 4X protection, withstands dust, water, and corrosive atmospheres, delivering predictable performance with minimal maintenance in offshore platforms and outdoor enclosures. Dimmable and versatile power: A dimmable driver supports 120–277 VAC and 125–250 VDC, enabling seamless integration with existing controls and smart lighting strategies, reducing energy waste and enabling precise site illumination control. Installation efficiency: A 3/4" entry and yoke mounting simplify alignment and mounting on walls or structures, accelerating commissioning in time-sensitive projects while maintaining robust seismic and mechanical stability. Hazardous-location readiness: With NEC/CEC compliance and area classifications covering Class I, II, and III, the CPMV3L-UNV1 provides a compliant lighting solution that minimizes risk, enhances safety, and supports ongoing regulatory adherence in risky industrial settings. Durability meets scale: The 14 lb, compact form factor accommodates tight spaces without compromising durability or light distribution, enabling scalable lighting plans across large industrial campuses while preserving energy efficiency and lifecycle value.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV3L-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV3L-UNV1?
Enquire Now
FAQs
The CPMV3L-UNV1 uses a yoke mount and a 3/4 inch entry, simplifying wall and structure installation. Its compact 9.16 in x 12.76 in x 12.6 in footprint and 14 lb weight allow easy positioning on vertical surfaces, while the die-cast aluminum housing tolerates outdoor industrial environments. This design supports quick alignment with existing lighting plans and fast commissioning.
The fixture provides 3000 lumens at 30W with a efficacy of 111 lm/W. It draws 0.09 A and operates at 50/60 Hz, with a voltage range of 120–277 VAC and 125–250 VDC. The dimmable driver enables integration with controls for adaptive lighting strategies in harsh environments.
Yes. It is rated for Hazardous/Classified Locations with NEC/CEC compliance and supports Class I, Class II, and Class III across Div 1 and Div 2 configurations. The IP66 and NEMA 4X protection further ensure suitability for harsh outdoor and industrial environments such as chemical plants and offshore facilities.
The fixture features IP66 ingress protection, NEMA 4X rating, and NEC/CEC compliance for hazardous locations. It is designed for Class I, II, and III environments, aligning with regulatory requirements to support safe operation and ergonomic installation in demanding industrial settings.
With a dimmable LED driver and robust housing, the CPMV3L-UNV1 reduces energy waste while delivering long service life and lower maintenance costs. The 30W draw replaces higher-wrawage legacy fixtures, delivering reliable ROI through energy savings, reduced downtime, and simplified retrofits in outdoor hazardous-area lighting deployments.
