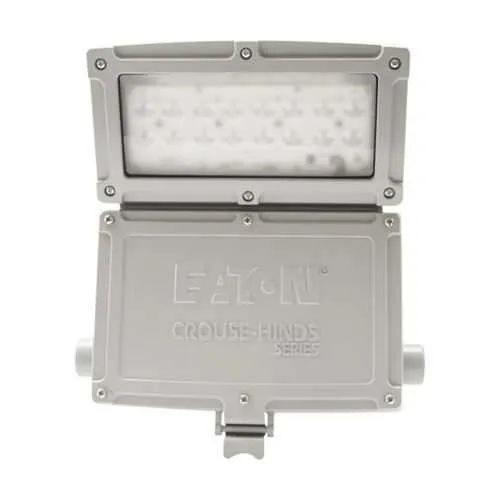

Eaton CPMV3L-UNV1-S903D LED Wall Pack Light Fixture - IP66
Part Number: CPMV3L-UNV1-S903D
Quick Summary
CPMV3L-UNV1-S903D is a rugged LED wall-pack light fixture for hazardous locations. Facility managers often struggle with maintenance and reliability in harsh environments. It meets NEC/CEC standards, IP66 ingress protection, NEMA 4X enclosure, and hazardous location classifications (Class I, Division 2; Class II, Division 1) to support safe, compliant operation. Designed for hazardous area lighting in industrial environments, it delivers energy efficiency and reliable performance for long-term cost savings. With a 30 W design and 3000 lumens, it provides bright, uniform illumination across a 7x6 distribution in outdoor or indoor hazardous spaces. The dimmable driver and 50/60 Hz compatibility simplify integration with existing controls and grid configurations.
Product Information
Extended Description
CPMV3L-UNV1-S903D Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.09A, Cool white, Dimmable driver, 3/4" entry, 70W equiv, 50/60 Hz, Diffused polycarb lens, 3000 lumens, 111 lm/W, Die cast alum, Yoke mt, 7x6 distribution, 120-277 Vac, 125-250 Vdc, 30W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV3L-UNV1-S903D
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276891463
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
3000
Lumens per watt
111
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
120-277 Vac, 125-250 Vdc
Frequency rating
50/60 Hz
Lens material
Diffused polycarbonate
Wattage
30W
Amperage Rating
0.09 A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
70W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures Canadian certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures Canadian certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV3L-UNV1-S903D
Feature: 30 W LED lumen output delivering 3000 lumens with a high efficiency of 111 lm/W and a power factor greater than 0.90. Business Impact: Substantial energy savings and reduced cooling load for facilities operating at scale, supporting lower total cost of ownership. Application: Ideal for hazardous location wall-pack lighting in industrial campuses where reliable brightness and efficiency are essential. Feature: 0.09 A current at typical operation and a wide voltage range of 120-277 Vac or 125-250 Vdc with a dimmable driver. Business Impact: Flexible integration with existing power infrastructure and controls, enabling dimming strategies that reduce peak demand. Application: Utilities-scale plants and outdoor installations with building automation systems. Feature: Die-cast aluminum housing with a diffused polycarbonate lens and a 7x6 optical distribution. Business Impact: Robust enclosure resists corrosion and impact while delivering uniform light distribution, reducing maintenance calls. Application: Outdoor facades, platforms, and hazardous area perimeters. Feature: Yoke mounting and 3/4 inch entry simplify retrofits and field installation. Business Impact: Faster commissioning, lower install labor, and easier alignment in tight or constrained spaces. Application: Retrofit projects in aging facilities and new-builds requiring hazardous-location lighting. Feature: IP66 ingress protection and NEMA 4X enclosure with area classifications for Hazardous/Classified Locations. Business Impact: Enhanced reliability in rain, dust, and chemical exposure environments, with compliance to NEC/CEC and industry standards. Application: Oil & gas facilities, chemical plants, and processing yards where harsh conditions are common. Feature: 3000K cool white LED with diffused polycarbonate lens and 70W equivalent performance. Business Impact: Natural color rendering for safety-critical tasks and straightforward cross-compatibility with existing LED inventories. Application: Hazardous area wall packs in maintenance zones and outdoor work areas.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV3L-UNV1-S903D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV3L-UNV1-S903D?
Enquire Now
FAQs
Installation should follow the OEM mounting pattern using the provided yoke bracket and 3/4 inch entry. Verify ingress protection and enclosure rating before mounting. Connect to a suitable 120-277Vac or 125-250Vdc power source, enable dimming as needed, and ensure proper grounding per NEC guidelines. Use the 50/60 Hz compatibility to align with site power. This minimizes commissioning time and enhances operator safety.
Key specs include a 30 W LED driver delivering 3000 lumens with a luminous efficacy of 111 lm/W, PF > 0.90, 0.09 A current draw, and a voltage range of 120-277 Vac or 125-250 Vdc. The fixture is dimmable and operates at 50/60 Hz, providing flexible control options and reliable performance across typical industrial power systems.
Yes. The IP66 ingress protection and NEMA 4X enclosure are designed for harsh outdoor and chemical plant environments. The die-cast aluminum housing, diffused polycarbonate lens, and 7x6 distribution ensure durable, uniform lighting with resistance to dust, water, and chemical exposure, making it well-suited for outdoor perimeters, walkways, and hazardous-area exteriors.
The fixture complies with NEC/CEC standards and is rated for Hazardous/Classified Locations (Class I Division 2; Class II Division 1). It features IP66 ingress protection and a NEMA 4X enclosure, providing robust protection in hazardous-industrial environments and helping ensure regulatory compliance for installation in restricted zones.
With a 30 W design delivering 3000 lumens and a durable IP66/NEMA 4X enclosure, long life and low maintenance are core benefits. The dimmable driver reduces energy use through controlled lighting levels, while reliable operation in hazardous locations minimizes downtime. Over time, energy savings and reduced maintenance translate to a favorable ROI in facilities with continuous operation requirements.
