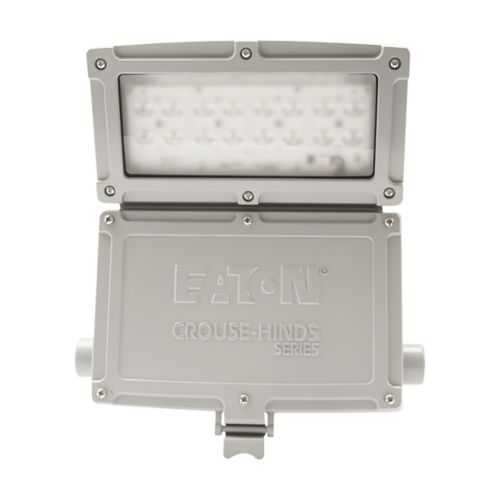

Eaton CPMV3L-UNV34 LED Wall Pack - HazLoc IP66
Part Number: CPMV3L-UNV34
Quick Summary
Eaton CPMV3L-UNV34 LED wall pack provides rugged, high-output lighting for hazardous-area exterior walls. Facility teams often struggle with unreliable illumination, limited protection ratings, and difficult maintenance in harsh locations. It delivers IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC hazardous-location compliance for Class I, Division 2 and Class II, Division 1 environments. Designed for 347–480 VAC operation with a dimmable driver and 3000 lumens at 111 lm/W, it also features a durable die-cast aluminum housing and tempered glass lens, offering robust performance while reducing energy use and maintenance costs across outdoor perimeter applications.
Product Information
Extended Description
CPMV3L-UNV34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.09A, Cool white, Dimmable driver, 3/4" entry, 70W equiv, 60 Hz, Tempered glass lens, 3000 lumens, 111 lm/W, Die cast aluminum, Yoke mount, 7x6 distribution, 347-480 Vac, 30W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV3L-UNV34
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276891470
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
3000
Lumens per watt
111
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
60 Hz
Lens material
Tempered glass
Wattage
30W
Amperage Rating
0.09 A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
70W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV3L-UNV34
Feature: High-efficiency LED output (30W, 3000 lumens, 111 lm/W) → Business Impact: Lower energy consumption and longer service life reduce operating costs and replace-the-lamp events. Application: Ideal for outdoor hazardous-area walls in refineries and chemical plants, where dependable illumination is critical. Feature: Dimmable driver with wide voltage range (347–480 VAC, 60 Hz) → Business Impact: Flexible integration with existing controls and reduced glare or over-illumination, improving safety and visual comfort. Application: Perimeter and dock lighting in industrial facilities requiring precise lighting control. Feature: IP66 and NEMA 4X protection → Business Impact: Superior protection against dust, water, and corrosive exposure extends fixture life in harsh environments, lowering maintenance cycles. Application: Outdoor walls near marine facilities, wastewater treatment, and heavy manufacturing. Feature: Die-cast aluminum housing, tempered-glass lens, yoke mounting → Business Impact: Durable construction and easy installation speed up project timelines and reduce labor costs. Application: Exterior wall-pack installations with versatile mounting on vertical surfaces. Feature: 7x6 optical distribution → Business Impact: Wide, uniform coverage reduces number of fixtures needed for site-wide illumination. Application: Industrial plant perimeters and outdoor work zones where consistent visibility is essential. Industry context: This CPMV3L-UNV34 aligns with NEC/CEC hazardous-location standards, delivers reliable performance in hazardous/classified locations, and supports ongoing compliance and safety programs while enabling scalable, energy-efficient lighting upgrades.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV3L-UNV34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV3L-UNV34?
Enquire Now
FAQs
CPMV3L-UNV34 supports a yoke mounting configuration with a 3/4 inch entry for flexible installation on exterior walls. Electrical requirements are 347–480 VAC at 60 Hz with a dimmable driver, enabling integration into existing control schemes and variable lighting levels to meet site-specific safety and energy targets.
The fixture provides 3000 lumens at 111 lumens per watt, with a 30W rating. This combination delivers bright, uniform illumination while minimizing energy consumption, reducing operating costs over the product life and improving overall site visibility in hazardous areas.
Yes. The CPMV3L-UNV34 is designed for hazardous/classified locations with NEC/CEC compliance, including Class I, Division 2 and Class II, Division 1 environments. It also features IP66 protection and a NEMA 4X enclosure to withstand harsh industrial conditions.
This wall pack carries IP66 ingress protection and a NEMA 4X rating, along with NEC/CEC hazardous-location compliance. It is built for hazardous-area outdoor use, providing reliable performance in challenging environments such as refineries, chemical plants, and outdoor industrial campuses.
Expect longer service life from a robust die-cast aluminum housing and tempered-glass lens, which reduces maintenance intervals. The dimmable driver and efficient 30W/3000 lm output lower energy bills, delivering a favorable return on investment through energy savings and reduced replacement costs in hazardous outdoor lighting upgrades.
