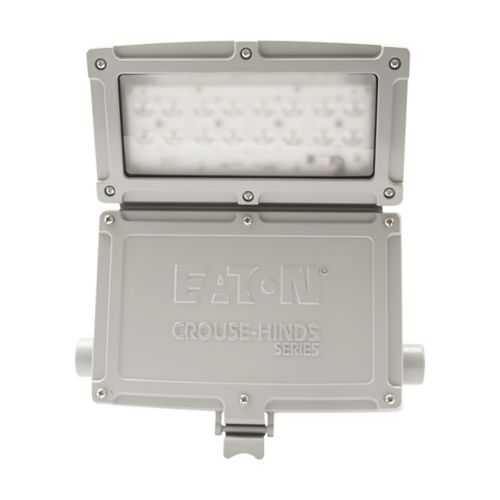

Eaton CPMV5L-UNV1 Champ CPMV LED Wall Pack - IP66 NEMA 4X
Part Number: CPMV5L-UNV1
Quick Summary
CPMV5L-UNV1 LED wall pack lighting is designed for reliable, energy-efficient industrial illumination in hazardous locations. Facilities struggle with frequent maintenance, difficult access, and regulatory risk from noncompliant fixtures in tough environments. It carries NEC/CEC hazardous area ratings with Class I, Division 2; Class II, Division 1; Class III, plus IP66 and NEMA 4X protection for rugged, wet or dusty settings. Operational flexibility comes from 120-277 VAC or 125-250 VDC input, a dimmable driver, 50/60 Hz, and a 5000-lumen output. That combination delivers lower energy costs, extended service life, easier maintenance, and dependable performance for mission-critical workflows.
Product Information
Extended Description
CPMV5L-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.15A, Cool white, Dimmable driver, 3/4" entry, 100W equiv, 50/60 Hz, Tempered glass lens, 5000 lumens, 116 lm/W, Die cast alum, Yoke mount, 7x6 distribution, 120-277 Vac, 125-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV5L-UNV1
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276936249
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
5000
Lumens per watt
26W
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
120-277 Vac, 125-250 Vdc
Frequency rating
50/60 Hz
Lens material
Tempered glass
Wattage
45W
Amperage Rating
0.088A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
100W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV5L-UNV1
Rugged enclosure with IP66 and NEMA 4X ratings protects internal components from water, dust, and corrosive washdowns, reducing unscheduled downtime in chemical plants and offshore facilities. The 5000 lumens output with high efficacy and a dimmable driver delivers bright coverage while minimizing energy use and cooling load, lowering operating costs over the fixture’s life. Universal voltage operation of 120-277 VAC and 125-250 VDC, with 50/60 Hz support, simplifies stocking and integration with existing power systems, reducing installation time and wiring errors. Durable die-cast aluminum housing, tempered glass lens, 3/4-inch entry, and yoke mounting enable easy installation in confined spaces while delivering consistent light distribution via a 7x6 optical spread. Compliance to NEC/CEC hazardous-location standards and UL certifications reduces risk, accelerates approvals, and supports maintenance programs across regulated industries such as chemical processing, oil & gas, and mining.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV5L-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV5L-UNV1?
Enquire Now
FAQs
CPMV5L-UNV1 supports a 3/4 inch entry and a yoke mounting system for quick, flexible installation. The housing is die-cast aluminum with a tempered glass lens, designed for 120-277 VAC or 125-250 VDC input and a dimmable driver. It meets NEC/CEC hazardous-location ratings (Class I Division 2, Class II Division 1, Class III) and carries IP66/NEMA 4X protection. Always follow NEC wiring methods and local codes when routing power and control signals.
CPMV5L-UNV1 delivers about 5000 lumens with a 45 W power draw and a current draw of roughly 0.088 A. It achieves a power factor greater than 0.90 and operates at 50/60 Hz. The luminaire is dimmable and rated for 120-277 VAC or 125-250 VDC, with the 7x6 optical distribution and tempered-glass lens enabling broad, uniform coverage.
Best suited for hazardous and classified locations such as chemical plants, oil and gas facilities, mining operations, and offshore platforms, CPMV5L-UNV1 provides durable exterior and interior illumination where washdown, heat, and dust are common. The IP66/NEMA 4X ratings support tough environments and the yoke mount allows mounting on walls, ceilings, or brackets in constrained spaces.
The fixture is certified for NEC/CEC hazardous locations with Class I Division 2, Class II Division 1, and Class III ratings, plus IP66 ingress protection and a NEMA 4X enclosure. UL certification resources are available, and the design aligns with installation instructions and specification sheets to streamline regulatory approvals and site compliance.
The LED design provides a long service life, reducing maintenance cycles and replacement costs in hard-to-reach areas. With 5000 lumens at 45 W and high efficiency, energy costs are minimized compared with legacy lighting. Added benefits include dimmable control, universal voltage compatibility, and a rugged enclosure that minimizes downtime and maximizes total cost of ownership.
