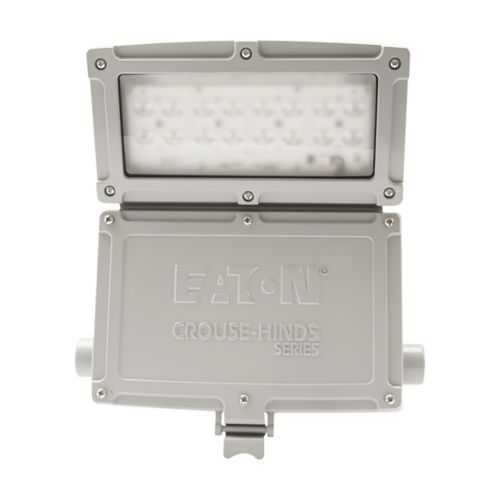

Eaton CPMV5L-UNV1-S903D LED Wall Pack - IP66
Part Number: CPMV5L-UNV1-S903D
Quick Summary
CPMV5L-UNV1-S903D is a high-efficiency LED wall pack light fixture designed for hazardous areas and industrial facilities. In demanding plants, maintenance cycles and lamp replacements drive costly downtime; this luminaire minimizes outages with a long service life and rugged construction. It combines IP66 protection, NEMA 4X enclosure, and NEC/CEC compliance for Class I Division 2 and Class II Division 1 locations, ensuring safe operation in harsh environments. Designed for reliable, low-maintenance illumination, it supports energy-efficient strategies in oil & gas, chemical processing, and heavy manufacturing while delivering consistent performance across 50/60 Hz systems and a wide voltage range.
Product Information
Extended Description
CPMV5L-UNV1-S903D Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.15A, Cool white, Dimmable driver, 3/4" entry, 100W equiv, 50/60 Hz, Diffused polycarb lens, 5000 lumens, 116 lm/W, Die cast alum, Yoke mt, 7x6 distribution, 120-277 Vac, 125-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV5L-UNV1-S903D
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276892057
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
5000
Lumens per watt
26W
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
120-277 Vac, 125-250 Vdc
Frequency rating
50/60 Hz
Lens material
Diffused polycarbonate
Wattage
45W
Amperage Rating
0.088A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
100W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV5L-UNV1-S903D
Feature: High-output LED with 5000 lumens at 45W and an efficiency of roughly 116 lm/W. Business Impact: Lower energy costs per fixture and reduced fixture lifecycle costs due to longer life. Application: Perimeter and wall-pack lighting for hazardous-area installations in refineries and chemical plants. Feature: Dimmable driver and broad voltage tolerance (120-277 Vac, 50/60 Hz; 125-250 Vdc). Business Impact: Flexible integration with existing controls and power systems, enabling precise illumination and reduced wiring changes. Application: Retrofit projects and new builds in variable electrical environments. Feature: Rugged die-cast aluminum housing with IP66 and NEMA 4X protection. Business Impact: Superior durability against washdowns, dust, and moisture, lowering maintenance cycles. Application: Outdoor yards, plant perimeters, and offshore facilities. Feature: Diffused polycarbonate lens and 7x6 optical distribution. Business Impact: Uniform light coverage with fewer fixtures, improving safety and reducing capital expenditure. Application: Wall-pack installations in constrained spaces or high-traffic zones. Feature: Yoke mounting and 3/4" entry for conduit connections. Business Impact: Easy installation and flexible mounting orientations, shortening commissioning time. Application: Retrofit upgrades and new construction in restricted or complex layouts. Feature: NEC/CEC compliance and hazardous-location ratings (Class I Division 2, Class II Division 1, Class III). Business Impact: Regulatory risk reduction and streamlined acceptance in safety audits. Application: Hazardous-location lighting across oil, gas, chemical, and pharmaceutical facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV5L-UNV1-S903D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV5L-UNV1-S903D?
Enquire Now
FAQs
This CPMV LED wall pack uses a versatile yoke mounting and includes a 3/4 inch conduit entry. It is designed for 120-277 Vac operation with 50/60 Hz input and supports a broad voltage range for retrofit projects, enabling straightforward installation in constrained industrial spaces.
The fixture delivers 5000 lumens at 45 watts, achieving approximately 116 lumens per watt with a power factor greater than 0.90. It operates on 120-277 Vac (and 125-250 Vdc) across 50/60 Hz, providing robust, efficient illumination for hazardous locations.
Yes. The luminaire is rated for Hazardous/Classified Locations with NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X enclosure. Its ratings cover Class I Division 2, Class II Division 1, and Class III, making it appropriate for oil, gas, and chemical processing environments.
Plan for a canopy or wall-pack installation using the yoke mount, with a 3/4" conduit entry for power and control wiring. The dimmable driver supports integration with control systems, and the diffused polycarbonate lens provides uniform coverage, reducing glare while enabling easier maintenance access.
The 5000-lumen LED with a long-design life minimizes maintenance cycles and reduces replacement frequency in harsh environments. Energy efficiency (45W input, PF >0.90) lowers operating costs, while rugged housing and IP66/NEMA 4X protection withstand washdowns and outdoor exposure, delivering reliable ROI in hazardous-area facilities.
