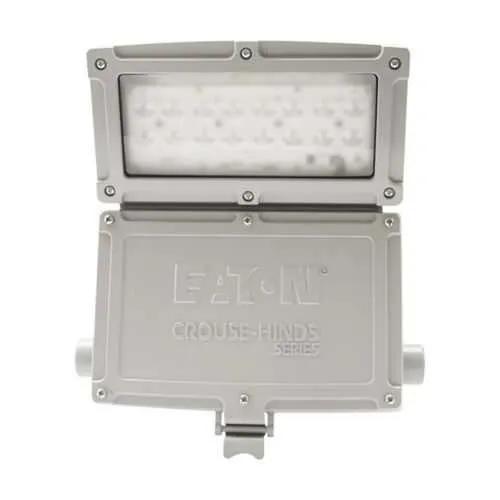

Eaton CPMV5L-UNV34 LED Wall Pack Light - IP66
Part Number: CPMV5L-UNV34
Quick Summary
CPMV5L-UNV34 LED Wall Pack Light fixture delivers high-output illumination for hazardous-area applications such as industrial plants and refineries. Engineers and maintenance teams often confront unreliable lighting in Class I Division 2 and other hazardous locations, where downtime translates to safety risk and cost. This luminaire is built for demanding environments, offering a universal UNV input and 347-480 Vac operation with a rugged die-cast aluminum housing and tempered glass lens. It meets NEC/CEC hazardous-location standards and IP66/NEMA 4X protection, providing robust reliability. Designed for easy retrofits and flexible mounting, it supports dimmable operation and quick installations, delivering energy efficiency and predictable performance to keep critical processes illuminated with minimal maintenance.
Product Information
Extended Description
CPMV5L-UNV34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.15A, Cool white, Dimmable driver, 3/4" entry, 100W equiv, 60 Hz, Tempered glass lens, 5000 lumens, 116 lm/W, Die cast aluminum, Yoke mount, 7x6 distribution, 347-480 Vac, 45W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV5L-UNV34
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276892064
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class III Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
5000
Lumens per watt
26W
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
60 Hz
Lens material
Tempered glass
Wattage
45W
Amperage Rating
0.088A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
100W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures Canadian certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures Canadian certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV5L-UNV34
Feature: Universal voltage and dimmable driver. Business Impact: Reduces inventory complexity and energy waste, enabling seamless integration into existing control systems. Application: Hazardous-area projects that require flexible power options and adjustable output. Feature: 347-480 Vac operation and 60 Hz frequency. Business Impact: Ensures compatibility with industrial power standards across sites, minimizing electrical work and safeguarding uptime. Application: Large facilities and mixed-voltage campuses needing reliable lighting across zones. Feature: IP66, NEMA 4X, and NEC/CEC hazardous-location ratings. Business Impact: Delivers proven protection against dust, water ingress, and corrosive atmospheres, lowering maintenance costs and extending service life. Application: Class I, Division 2/Class II, Division 1 installations in refineries and chemical plants. Feature: 5000 lumens at a high efficiency (~116 lm/W) with cool white light. Business Impact: Maximizes visibility and safety while reducing energy consumption per fixture compared with legacy systems. Application: Perimeter and yard illumination, crosswalks, and work zones in hazardous areas. Feature: 7x6 optical distribution and tempered glass lens. Business Impact: Improves uniformity and reduces glare, enhancing worker safety and inspection accuracy. Application: Wide-area wall-pack lighting for complex layouts and equipment corridors. Feature: Die-cast aluminum housing with yoke mounting and 3/4" entry. Business Impact: Durable construction simplifies installation and provides versatile mounting options, lowering installation time and labor costs. Application: Rooftop and wall-mounted installations in outdoor, hazardous environments.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV5L-UNV34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV5L-UNV34?
Enquire Now
FAQs
Install CPMV5L-UNV34 using the 3/4" conduit entry and secure the unit with its yoke mount to ensure proper alignment. The IP66/NEMA 4X housing protects against dust and water ingress, while the Class I, Division 2 ratings guide safe placement in hazardous zones. Verify 347-480 Vac supply and implement a dimmable driver setup if dynamic lighting control is required for operation schedules.
Yes. The luminaire is rated for 347-480 Vac operation at 60 Hz and features a dimmable driver. This enables seamless integration with site controls and power distribution systems, reducing energy consumption during off-peak periods and improving visual comfort in hazardous areas.
The CPMV5L-UNV34 carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X protection, along with NEC hazardous ratings for Class I Division 2 (and related groups). These certifications validate safe operation in classified locations and help simplify regulatory approvals for installation in hazardous environments.
Key specs include 5000 lumens with an efficient output around 116 lm/W, cool white light, 347-480 Vac input at 60 Hz, a 45 W nominal power with 0.088 A current draw, and a 7x6 optical distribution. The unit uses tempered glass lens and a die-cast aluminum housing with a yoke mounting arrangement for flexible positioning.
The luminaire reduces maintenance through a rugged, corrosion-resistant enclosure and long service life, while offering energy savings through high efficacy and dimmable operation. Its universal voltage and compact form factor streamline retrofits, minimize spare parts, and improve facility uptime in challenging environments.
