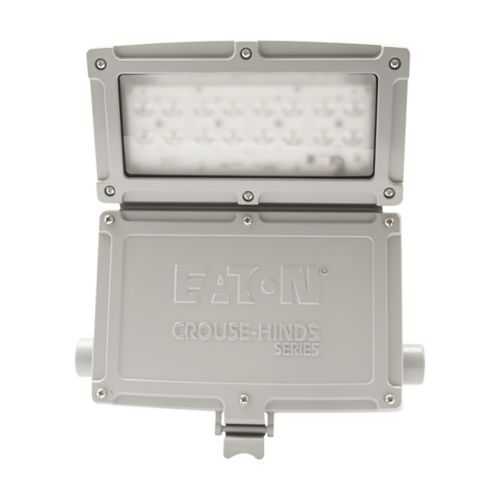

Eaton CPMV7L-UNV34-S903D LED Wall Pack - IP66
Part Number: CPMV7L-UNV34-S903D
Manufacturer
Eaton Crouse-Hinds
Part number
CPMV7L-UNV34-S903D
Category
Quick Summary
CPMV7L-UNV34-S903D LED wall pack is a durable lighting fixture designed for hazardous locations and industrial facilities. Engineers struggle with safe, reliable illumination amid harsh environments and difficult wiring constraints. This fixture combines IP66 protection, NEMA 4X enclosure, and NEC/CEC hazardous classifications to deliver compliant, long-life operation. Its LED efficiency (7000 lumens, 115 lm/W) along with a broad UNV voltage range enables lower energy costs and simpler procurement for industrial projects. Designed for yoke mounting and 3/4" entry, it adapts to varied mounting heights and spacing while maintaining glare control with a diffused polycarbonate lens. This combination supports rapid deployment and scalable lighting strategies across facilities. It also aligns with energy-efficiency goals and maintenance budgets.
Product Information
Extended Description
CPMV7L-UNV34-S903D Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ CPMV LED wall pack, 0.21A, Cool white, Dimmable driver, 3/4" entry, 150-175W equiv, 60 Hz, Diffused polycarbonate lens, 7000 lumens, 115 lm/W, Die cast aluminum, Yoke mount, 7x6 distribution, 347-480 Vac, 59W
Product Name
Eaton Crouse-Hinds series Champ CPMV LED wall pack light fixture
Catalog Number
CPMV7L-UNV34-S903D
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
UPC
662276892170
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class III Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
7000
Lumens per watt
115
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
60 Hz
Lens material
Diffused polycarbonate
Wattage
59 W
Amperage Rating
0.21 A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
150-175W
SP3D Design Package - Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series CPMV LED brochure
Crouse-Hinds series Champ CPMV LED catalog page
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
Champ CPMV LED Hazardous Area Wallpack Light Fixtures UL certification
IF 1892 - Champ-Pak CPMVL LED Wall Pack
Eaton Specification Sheet - CPMV7L-UNV34-S903D
Feature: High lumen output and efficiency (7000 lm at 115 lm/W) → Business Impact: Bright, efficient lighting reduces energy consumption and operating costs while maintaining high visibility in critical zones → Application: Chemical plants, refineries, and oil/gas facilities needing reliable hazardous-location illumination. Feature: IP66 ingress protection and NEMA 4X enclosure → Business Impact: Superior protection against dust, water, and washdowns lowers maintenance cycles and extends service life → Application: Harsh outdoor and washdown environments. Feature: Universal UNV voltage range (347-480 Vac) with 60 Hz operation and dimmable driver → Business Impact: Flexible deployment across existing control architectures and lighting controls, simplifying procurement and integration → Application: Large industrial sites with diverse power systems. Feature: Die-cast aluminum housing with yoke mounting and 3/4" entry → Business Impact: Robust, heat-dissipating construction plus easy installation and aiming versatility → Application: Surface-mounted wall packs in constrained spaces. Feature: Diffused polycarbonate lens with 7x6 optical distribution → Business Impact: Uniform light distribution with glare control reduces maintenance complaints and improves worker safety → Application: Hazardous-area perimeter illumination and access corridors. Industry context note: The CPMV7L-UNV34-S903D is designed to support uptime targets while meeting NEC/CEC requirements and industry best practices for hazardous-location lighting.
Get a Quick Quote for a Eaton Crouse-Hinds CPMV7L-UNV34-S903D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CPMV7L-UNV34-S903D?
Enquire Now
FAQs
CPMV7L-UNV34-S903D is a LED wall pack designed for hazardous locations by Eaton Crouse-Hinds. It operates from 347 to 480 VAC at 60 Hz and delivers 7000 lumens with a 59 W power draw. Its IP66/NEMA 4X protection and diffused lens make it suitable for chemical plants, refineries, and other harsh environments requiring reliable, compliant illumination.
This fixture features NEC/CEC compliance with hazardous classifications (Class I, Division 2; Class II, Division 1; Class III) and Area Classification for Hazardous/Classified Locations. It also carries IP66 ingress protection and a NEMA 4X enclosure, ensuring robust protection and meeting industrial safety standards.
The unit operates at 347-480 Vac, 60 Hz, consuming 59 W and drawing 0.21 A. It offers a power factor better than 0.90 and includes a dimmable driver, enabling compatible lighting control networks and smoother dimming performance for energy savings and process lighting requirements.
The fixture uses a yoke mounting arrangement with a 3/4" entry for wiring. It measures 9.16 in (length) by 12.76 in (height) by 12.6 in (width) and weighs 14 lb. The rugged die-cast aluminum housing and diffused polycarbonate lens support reliable installation in constrained or washdown environments.
Expect 7000 lumens at 115 lm/W with cool white light for clear visibility, uniform 7x6 optical distribution, and durable, low-maintenance operation via IP66/NEMA 4X protection. The UNV voltage range and dimmable driver provide flexible integration with existing controls, delivering energy savings and extended maintenance intervals in hazardous-site applications.
