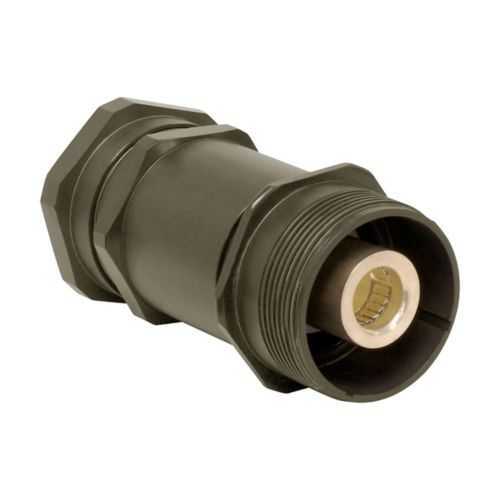

Eaton Roughneck CRIG-C24-386-SN insert kit - 1000V
Part Number: CRIG-C24-386-SN
Quick Summary
Roughneck CRIG insert kit delivers high-current, socket-style connectivity for 1000V industrial power systems. In harsh plants, mismatched components slow startup and inflate lifecycle costs; this kit uses a precise CRIG C24 shell with 777 kcmil contacts to ensure reliable, field-ready performance. It is certified for Ordinary/Non-Hazardous locations and designed to handle up to 1135A at 1000V, aligning with safety and reliability standards. By leveraging Roughneck series compatibility and a compact form factor, it simplifies procurement and installation, while reducing spares diversity and repair time. This makes it a strong fit for electrical teams pursuing robust power connectors and streamlined maintenance in automation and heavy industry.
Product Information
Extended Description
CRIG-C24-386-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CRIG insert kit, 1135A, Female, 777 kcmil, Socket, C24 shell, 1000V
Product Name
Eaton Crouse-Hinds series Roughneck CRIG insert kit
Catalog Number
CRIG-C24-386-SN
Product Length/Depth
2.42 in
Product Height
3 in
Product Width
3 in
Product Weight
1.6 lb
UPC
662276428751
Area classification
Ordinary/Non-Hazardous Locations
Shell size
C24
Contact size
777 kcmil
Amperage Rating
1135A
Voltage rating
1000 V
Connector gender
Female
Contact type
Socket
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CRIG Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CRIG Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CRIG-C24-386-SN
Eaton Specification Sheet - CRIG-C24-386-SN
Feature: Amperage Rating 1135A and voltage rating 1000V; Business Impact: supports high-current loads with a single connector, reducing the number of terminations and potential fault points; Application: used in heavy industrial power distribution and machine wiring. Feature: Shell size C24 and 777 kcmil contact; Business Impact: ensures compatibility with CRIG insert kits in the Roughneck family; Application: enables direct termination for large conductors without adapters. Feature: Female socket contact; Business Impact: simplifies mating and improves retention; Application: mating with standard Roughneck male contacts in CRIG assemblies. Feature: Compact footprint—2.42 in length, 3 in height and width; Weight 1.6 lb; Business Impact: easier handling and on-site installation; Application: field service and panel mounting. Feature: Documentation and certifications; Business Impact: procurement traceability and regulatory compliance; Application: reference to official datasheets, installation instructions, and catalog pages for design validation.
Get a Quick Quote for a Eaton Crouse-Hinds CRIG-C24-386-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CRIG-C24-386-SN?
Enquire Now
FAQs
Follow the installation directions in the Roughneck instruction sheets (e.g., IF 1688) and the CRIG data pages. Ensure proper alignment of the socket contacts, use the correct crimp tooling for 777 kcmil conductors, and verify the 1000 V rating is maintained across all mating interfaces. The process minimizes mis-mates and ensures reliable continuity in high-current applications.
Key specs are amperage rating of 1135A, voltage rating of 1000V, shell size C24, contact size 777 kcmil, connector gender Female, and contact type Socket. These ratings support heavy industrial power distribution and large conductor terminations within the Roughneck CRIG family.
Yes. It is part of the Roughneck CRIG family and designed for use with CRIG series multi-pin connectors in a C24 shell. For broader compatibility, consult the Roughneck Heavy Industrial Multi-pin Connectors catalog page and verify mating interfaces with your existing Roughneck components.
This insert kit is classified for Ordinary/Non-Hazardous Locations, making it appropriate for non-explosive industrial environments. It supports 1000V operation, aligning with safety requirements for high-voltage connector deployments in controlled facility settings.
Using the CRIG-C24-386-SN consolidates power connections by delivering high current in a single assembly, reducing spare parts and installation time. Coupled with official Eaton datasheets and installation guides, it enhances traceability, simplifies maintenance planning, and lowers total cost of ownership in long-cycle industrial projects.
