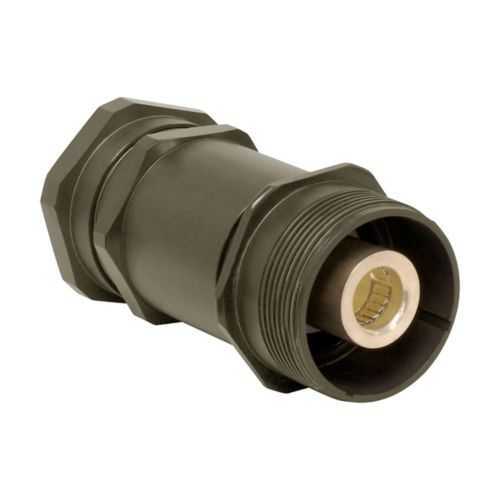

Eaton CRIG-C24-535-PN Roughneck insert kit - 1000V
Part Number: CRIG-C24-535-PN
Quick Summary
CRIG-C24-535-PN Roughneck insert kit enables high-current, 898 A, 1000 V pin-and-socket connections for heavy industrial equipment. Engineers often contend with downtime and unreliable terminations in demanding environments. UL certification for the Roughneck CRIG series and area classifications for ordinary/non-hazardous locations reinforce safety and compliance. With a C24 shell, 535 kcmil contacts, and a 2.42 in depth, 3 in width, and 3 in height, this insert kit delivers robust, scalable connections. Designed to integrate with existing Roughneck assemblies, it reduces setup time while improving reliability and overall system uptime. In addition to core performance, the kit aligns with installation guides and literature for trouble-free field service.
Product Information
Extended Description
CRIG-C24-535-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CRIG insert kit, 898A, Male, 535 kcmil, Pin, C24 shell, 1000V
Product Name
Eaton Crouse-Hinds series Roughneck CRIG insert kit
Catalog Number
CRIG-C24-535-PN
Product Length/Depth
2.42 in
Product Height
3 in
Product Width
3 in
Product Weight
1.6 lb
UPC
662276428799
Area classification
Ordinary/Non-Hazardous Locations
Shell size
C24
Contact size
535 kcmil
Amperage Rating
898 A
Voltage rating
1000 V
Connector gender
Male
Contact type
Pin
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CRIG Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CRIG Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
High-current capability ensures reliable motor terminations in demanding settings. Impact: 898 A at 1000 V supports large drive loads with fewer connection points, reducing heat and fault risk. Application: Ideal for heavy machinery, pumps, and conveyors where uptime drives throughput. 535 kcmil pin contacts in a C24 shell deliver low contact resistance and robust mechanical integrity. Impact: Improved current carrying capacity and vibration resistance translate to longer service life and fewer field repairs. Application: Suitable for heavy-duty power distribution and large-diameter feeder cables in industrial plants. Compact 2.42 in length, 3 in width, and 3 in height keeps a small footprint within Roughneck assemblies. Impact: Simpler panel design and easier stocking improve logistics and reduce obsolete inventory costs. Application: Fits standard CRIG/C24 configurations across rugged facilities. UL certification for the CRIG series plus ordinary/non-hazardous area classification provide regulatory assurance. Impact: Supports compliance during audits, easing procurement and risk management. Application: Widely used in manufacturing, processing, and facilities with strict safety requirements. Comprehensive field installation resources, including installation instructions and spec sheets, support rapid deployment. Impact: Reduces training time, lowers installation labor costs, and improves consistency across sites. Application: Field service teams benefit from clear guidance during connector assembly and maintenance. Broad compatibility with Roughneck series and related CRIG shells ensures seamless integration. Impact: Minimizes redesigns when upgrading power terminations and simplifies spare-part strategies. Application: Asset-rich industry environments where standardization lowers total cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds CRIG-C24-535-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CRIG-C24-535-PN?
Enquire Now
FAQs
What you need to know: CRIG-C24-535-PN uses 535 kcmil pins in a C24 shell, rated for 898 A and 1000 V. It fits standard Roughneck CRIG assemblies and aligns with installation sheets like IF 1688. Ensure the mating shell is clean, the conductors are properly sized, and torque specifications from the spec guide are followed to maintain current capability and可靠 mating.
The 535 kcmil contact size reduces contact resistance and supports robust current transfer under vibration and thermal cycling. In practice, this means lower heat buildup, fewer hot spots, and longer service intervals for heavy motors and feeders. Pair this with the C24 shell and 898 A rating to meet demanding process or manufacturing line requirements.
Yes. With an 898 A rating at 1000 V and a 2.42 in × 3 in footprint, the CRIG-C24-535-PN is designed for large-motor drives and bulk power distribution in rugged industrial settings. Its UL CRIG certification and ordinary/non-hazardous location suitability support compliance across plant floors while delivering reliable terminations.
Key certifications include UL certification for the Roughneck CRIG series and area classification indicating Ordinary/Non-Hazardous Locations. These markings help with safety audits, procurement approvals, and regulatory adherence in non-hazardous industrial environments. Always consult the UL pages referenced in the product downloads for the latest certification scope.
You can leverage installation sheets, catalogs, and spec guides listed in the downloads to streamline field work. These resources reduce training time, ensure consistent assembly, and shorten downtime during upgrades or terminations. The model’s documented compatibility with standard Roughneck shells simplifies inventory management and long-term maintenance planning.
