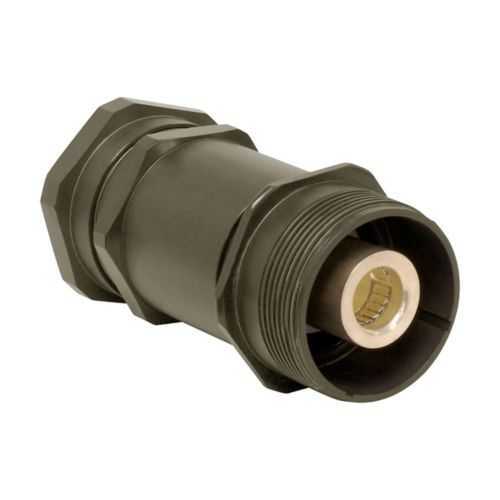

Eaton CRIG-C24-535-SN Roughneck insert kit - 1000 V
Part Number: CRIG-C24-535-SN
Quick Summary
CRIG-C24-535-SN is a Roughneck insert kit designed for high-current, 1000 V multi-pin connectors used in heavy industrial wiring. Engineers often struggle to precisely match shell sizes and ensure safe, reliable field connections in harsh environments. This kit aligns with UL-listed Canadian certification for the CRIG Series and supports ordinary/non-hazardous location classification, while delivering a robust 898 A rating on a C24 shell. By providing a compact, all-in-one solution, it reduces downtime, simplifies procurement, and speeds installation for electrical contractors and OEMs. In practice, the combination of a socket contact and a female CRIG shell streamlines replacements and minimizes spare-part inventories in demanding facilities.
Product Information
Extended Description
CRIG-C24-535-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CRIG insert kit, 898A, Female, 535 kcmil, Socket, C24 shell, 1000V
Product Name
Eaton Crouse-Hinds series Roughneck CRIG insert kit
Catalog Number
CRIG-C24-535-SN
Product Length/Depth
2.42 in
Product Height
3 in
Product Width
3 in
Product Weight
1.6 lb
UPC
662276428805
Area classification
Ordinary/Non-Hazardous Locations
Shell size
C24
Contact size
535 kcmil
Amperage Rating
898 A
Voltage rating
1000 V
Connector gender
Female
Contact type
Socket
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CRIG Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CRIG Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature → Business Impact → Application: High voltage capability with a 1000 V rating minimizes insulation stress and arc-risk in plant-wide power distribution, boosting system reliability and uptime on mission-critical lines. Application: Heavy manufacturing and process industries where high-voltage multi-pin connections are routine. Feature → Business Impact → Application: Large conductor accommodation with 535 kcmil contact size enables direct connections for heavy feeders, reducing the need for splices and related resistance losses. Application: Main feeders and switchgear interconnects in steel, chemical, and mining environments. Feature → Business Impact → Application: C24 shell and socket contact design deliver a secure, low-impedance path and straightforward field replacement, lowering maintenance costs and downtime. Application: Backplane assemblies and service loops in rugged facilities. Feature → Business Impact → Application: Compact 2.42 in length and 3 in width/height provide space-efficient mounting and faster installation in crowded panels. Application: Panel boards and junction boxes with limited depth. Feature → Business Impact → Application: UL Canada certification and ordinary/non-hazardous location compliance reduce regulatory risk and simplify procurement in Canadian operations. Application: cross-border projects and multi-site deployments. Feature → Business Impact → Application: Lightweight 1.6 lb form factor reduces on-site handling fatigue and improves worker productivity during assemblies. Application: Field replacements and satellite installations.
Get a Quick Quote for a Eaton Crouse-Hinds CRIG-C24-535-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CRIG-C24-535-SN?
Enquire Now
FAQs
The CRIG-C24-535-SN uses a C24 shell with 535 kcmil contact size, rated for 898 A and 1000 V. It is designed for socket/female configurations in Roughneck multi-pin connectors and is suitable for ordinary/non-hazardous locations. Ensure the mating shell and conductors are of compatible size and meet local electrical codes before installation.
Its compact form factor (2.42 in length, 3 in width/height) and integrated Roughneck design reduce assembly time by minimizing on-site fitting steps. The single insert kit approach lowers the number of separate components, decreases spares inventory, and speeds field replacement when high-current connections are required.
Yes. The CRIG Series has UL-listed Canadian certification, aligning with regulatory expectations for multi-pin Roughneck connectors. In addition, the product supports ordinary/non-hazardous location classifications, helping maintain compliance across cross-border projects.
High-current feeders and service interconnections in heavy industrial plants, substations, and process facilities benefit most. The 535 kcmil contact size handles large conductor runs with reduced resistance, while the 1000 V rating ensures safe operation in elevated voltage environments common to C&I and mining applications.
Plan for compatible mating shells and conductors, confirm non-hazardous location suitability, and use the included installation instructions. The kit’s rugged design reduces downtime and maintenance costs, while UL Canada certification supports regulatory compliance, lowering procurement risk in Canada and globally for two-site or multi-site deployments.
