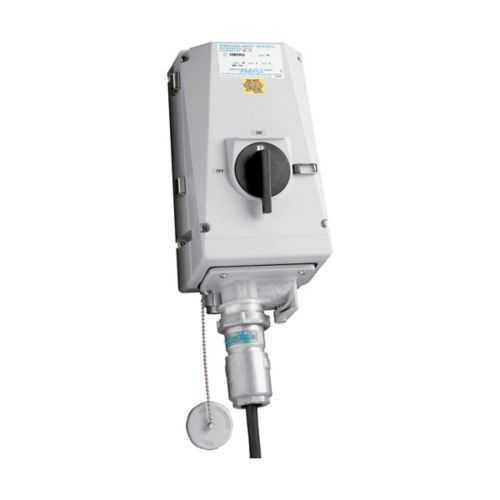

Eaton Crouse-Hinds CSR33542 Interlocked Receptacle - IP66
Part Number: CSR33542
Quick Summary
CSR33542 interlocked receptacle from Eaton Crouse-Hinds protects machine power in automation systems. Maintenance teams face accidental energization and costly downtime, which this interlock helps prevent during servicing. With IP66 protection, NEMA 3/4/4X/12 compatibility, and NEC/CEC compliance, CSR33542 is ready for ordinary/non-hazardous locations in harsh environments. Coupled with Krydon fiberglass-reinforced polyester housing and brass contacts, it integrates with wiring devices and connectivity across industrial automation applications.
Product Information
Extended Description
CSR33542 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CSR interlocked receptacle, 30A, Brass contacts, Non-fused, Style 2, 10 HP/20 HP/25 HP, Krydon fiberglass-reinforced polyester, 1", 250-600 Vac
Product Name
Eaton Crouse-Hinds series Arktite CSR interlocked receptacle
Catalog Number
CSR33542
Product Length/Depth
7.87 in
Product Height
18.26 in
Product Width
7.78 in
Product Weight
16.25 lb
UPC
782274215440
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4 4X 12
Ingress protection (IP) ratings
IP66
Amperage Rating
30A
Trade size
1"
Fusing
Non-fused
Voltage rating
250-600 Vac
Horsepower
10 hp/20 hp/25 hp
Grounding style
Style 2
Material
Krydon fiberglass-reinforced polyester
Contact material
Brass
Arktite CSR Nonmetallic Interlock Receptacles catalog page
Arktite CSR Nonmetallic Interlock Receptacles Canadian certification
Arktite CSR Nonmetallic Interlock Receptacles Canadian certification
IF 1440 - CSR 30A and 60A Interlocked Receptacle with Bussmann Fuses
IF 1440 - CSR 30A and 60A Interlocked Receptacle with Bussmann Fuses
IF 1440 - CSR 30A and 60A Interlocked Receptacle with Bussmann Fuses
Eaton Specification Sheet - CSR33542
The Krydon fiberglass-reinforced polyester enclosure delivers exceptional weather, chemical, and impact resistance, reducing maintenance costs and extending service life in outdoor or wash-down environments. This translates to fewer field failures and more reliable uptime for conveyors, pumps, and machinery. The 30A, 250–600 Vac rating supports a broad range of motor loads, enabling standardization of supply interfaces across multiple lines while minimizing spare parts and wiring complexity. Its non-fused design reduces protection device inventory and simplifies installation, speeding up commissioning and reducing total cost of ownership. The interlock mechanism delivers a true safety function, preventing restart until the handle is confirmed safe, which lowers risk during servicing and changeovers. IP66 protection, plus NEMA 3 4 4X 12 compatibility, ensures dependable operation in ordinary or non-hazardous locations, even in dusty or wet environments. The 1" trade size and brass contacts provide robust wiring reliability and straightforward retrofit with existing CSR series components, enhancing overall system compatibility and installation efficiency.
Get a Quick Quote for a Eaton Crouse-Hinds CSR33542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CSR33542?
Enquire Now
FAQs
CSR33542 is a 1" trade size, non-fused interlocked receptacle rated 30A at 250–600 Vac with brass contacts and Krydon housing. It supports IP66 sealing and is compatible with NEMA configurations 3, 4, 4X and 12 for ordinary/non-hazardous locations. Dimensions align with standard CSR series mounting, enabling straightforward panel or enclosure integration.
CSR33542 supports up to 30A and is suitable for motor HP ranges of 10 hp, 20 hp, and 25 hp. With a voltage rating of 250–600 Vac and a 1" trade size, it accommodates typical industrial drives and conveyors. The non-fused design simplifies wiring and reduces protection-device fatigue, improving drive reliability in automation systems.
Yes. The receptor features IP66 ingress protection and a Krydon fiberglass-reinforced polyester housing, providing resistance to dust, water, and chemical exposure. Its NEMA 3/4/4X/12 compatibility supports safe operation in ordinary and non-hazardous outdoor or wash-down environments, making it suitable for outdoor equipment, industrial washdown areas, and exposed machinery.
CSR33542 complies with NEC/CEC safety standards and is designed for Ordinary/Non-Hazardous locations as indicated by its area classification. The IP66 rating and NEMA 3 4 4X 12 compatibility further support regulatory alignment for industrial equipment in non-hazardous settings, while UL Canadian certification references in the product data underscore traceability and compliance for cross-border deployments.
The safety interlock reduces the risk of accidental energization, lowering incident costs and downtime during maintenance. The non-fused design simplifies wiring and reduces spare parts, while the durable Krydon housing extends service life in harsh environments. Combined, this yields faster commissioning, safer maintenance windows, and lower lifecycle costs for automation panels.
