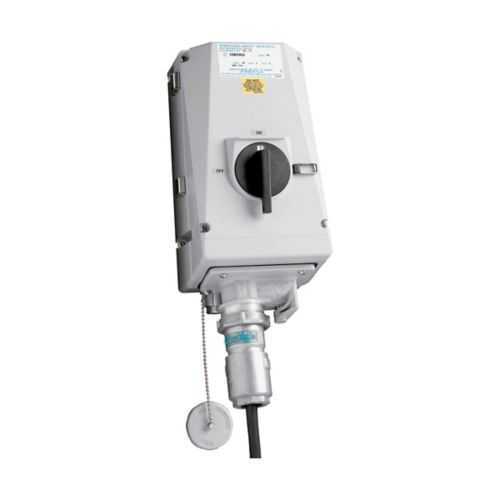

Eaton CSR6352 Arktite Interlocked Receptacle - IP66
Part Number: CSR6352
Quick Summary
CSR6352 interlocked receptacle is a rugged power connection designed for industrial motors and equipment. This solution addresses the common challenge of accidental energization and unreliable housings in harsh environments. It earns strong protection with IP66, and complements NEMA ratings 3, 4, 4X, and 12 under NEC/CEC standards. Built for reliability, it leverages Krydon fiberglass-reinforced polyester housing and brass contacts to withstand demanding washdowns and wide temperature ranges. With 60 A capacity at 250–600 VAC and a 1-1/4" trade size, it delivers safer, faster wiring and longer service life across Eaton and Crouse-Hinds interlock systems, improving uptime and total cost of ownership for industrial facilities.
Product Information
Extended Description
CSR6352 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CSR interlocked receptacle, 60A, Brass contacts, Fused, Style 2, 20 HP/40 HP, Krydon fiberglass-reinforced polyester, 1-1/4", 250-600 Vac
Product Name
Eaton Crouse-Hinds series Arktite CSR interlocked receptacle
Catalog Number
CSR6352
Product Length/Depth
8 in
Product Height
19.26 in
Product Width
7.78 in
Product Weight
20.15 lb
UPC
782274229836
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4 4X 12
Ingress protection (IP) ratings
IP66
Amperage Rating
60A
Trade size
1-1/4"
Fusing
Fused
Voltage rating
250-600 Vac
Horsepower
20 hp/40 hp
Grounding style
Style 2
Material
Krydon fiberglass-reinforced polyester
Contact material
Brass
Arktite CSR Nonmetallic Interlock Receptacles catalog page
Arktite CSR Nonmetallic Interlock Receptacles Canadian certification
Arktite CSR Nonmetallic Interlock Receptacles Canadian certification
IF 1440 - CSR 30A and 60A Interlocked Receptacle with Bussmann Fuses
IF 1440 - CSR 30A and 60A Interlocked Receptacle with Bussmann Fuses
IF 1440 - CSR 30A and 60A Interlocked Receptacle with Bussmann Fuses
Eaton Specification Sheet - CSR6352
Feature → Business Impact → Application: Fused interlock protection reduces the risk of accidental start-up during maintenance, improving worker safety and regulatory compliance; this translates to lower incident rates and fewer shutdowns in conveyor, pump, and motor-control panels. Application: Use CSR6352 on 60 A circuits to safeguard motor starters and control circuits while enabling predictable shutdown sequences. Feature → Business Impact → Application: Krydon fiberglass-reinforced polyester housing provides excellent chemical resistance and high durability in washdown environments, extending service life and reducing repaint or enclosure replacement costs. Application: Ideal for food processing, water/wastewater, and packaging lines where moisture and chemicals are present. Feature → Business Impact → Application: IP66 rated enclosure with brass contacts delivers dependable conductivity and protection against ingress, increasing equipment reliability and reducing maintenance frequency. Application: Suitable for outdoor or damp locations and harsh plants. Feature → Business Impact → Application: NEMA 3, 4, 4X, 12 compatibility ensures broad regulatory acceptance and quick integration with existing CSR interlocked receptacles. Application: Industrial automation cabinets and machine control panels. Feature → Business Impact → Application: 20 hp/40 hp horsepower range supports common motor loads, enabling streamlined selection for varied applications. Application: Control mechatronic systems and motor drives with one standardized interlocked receptacle.
Get a Quick Quote for a Eaton Crouse-Hinds CSR6352
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CSR6352?
Enquire Now
FAQs
CSR6352 is designed for a 1-1/4" trade size and fits within Eaton Crouse-Hinds Arktite interlock systems. Its 60 A rating at 250–600 VAC and fused interlock provides a straightforward upgrade path for existing panels, ensuring consistent electrical performance and safety interlocks without reconfiguring control wiring. Always consult the installation instructions for fuse type and clearances.
CSR6352 carries IP66 ingress protection and multiple compatible NEMA ratings: 3, 4, 4X, and 12. It is evaluated under NEC/CEC standards and is suitable for ordinary/non-hazardous locations. This combination supports safe operation in a wide range of industrial environments while aligning with common regulatory requirements.
Yes. The Krydon fiberglass-reinforced polyester housing and IP66 enclosure rating are specifically engineered for washdown and outdoor or damp environments. This makes CSR6352 a dependable choice for food processing, water treatment, and packaging facilities where moisture, chemicals, and rinse-downs are routine.
CSR6352 supports up to 60 A and is suitable for motors up to 20 hp at 250 VAC or 40 hp at 480–600 VAC, within the 1-1/4" trade size. This provides flexibility for common motor-control applications in industrial automation while maintaining safe interlock operation and fuse protection.
Maintenance focuses on fuse replacement and ensuring the interlock mechanism remains unobstructed. Consult the installation sheets (IF 1440/IF1334/IF1439) for fuse types and replacement procedures. Routine checks should confirm IP66 seals, grounding paths (Style 2), and contact integrity to prevent downtime and ensure continued safety in high-cycle environments.
