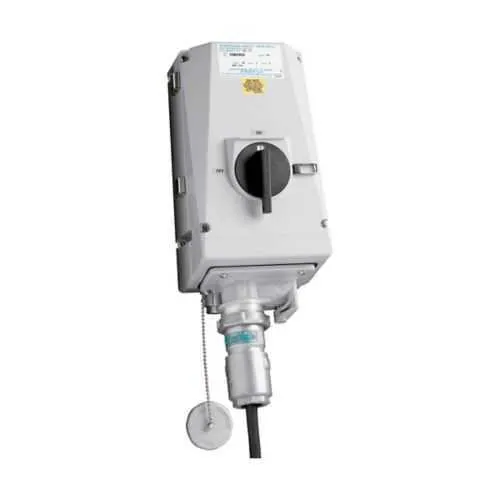

Eaton CSR63542 Interlocked Receptacle - IP66
Part Number: CSR63542
Quick Summary
CSR63542 is an Eaton interlocked receptacle designed for heavy-duty industrial motor control and disconnects in control panels. It addresses safe maintenance by preventing energization during servicing, reducing incident risk and unplanned downtime. With IP66 protection and NEMA ratings 3, 4, 4X, and 12, it meets rigorous environmental and safety requirements. This solution also delivers reliability and compliance for modern automation, while supporting cost-effective installation and lifecycle management in wiring and connectivity applications.
Product Information
Extended Description
CSR63542 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite CSR interlocked receptacle, 60A, Brass contacts, Non-fused, Style 2, 20 HP/40 HP, Krydon fiberglass-reinforced polyester, 1-1/4", 250-600 Vac
Product Name
Eaton Crouse-Hinds series Arktite CSR interlocked receptacle
Catalog Number
CSR63542
Product Length/Depth
7.87 in
Product Height
19.26 in
Product Width
7.78 in
Product Weight
17.55 lb
UPC
782274215457
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4 4X 12
Ingress protection (IP) ratings
IP66
Amperage Rating
60A
Trade size
1-1/4"
Fusing
Non-fused
Voltage rating
250-600 Vac
Horsepower
20 hp/40 hp
Grounding style
Style 2
Material
Krydon fiberglass-reinforced polyester
Contact material
Brass
Arktite CSR Nonmetallic Interlock Receptacles catalog page
Arktite CSR Nonmetallic Interlock Receptacles Canadian certification
Arktite CSR Nonmetallic Interlock Receptacles Canadian certification
IF 1334 - CSR Interlocked Receptacle
IF 1334 - CSR Interlocked Receptacle
IF 1334 - CSR Interlocked Receptacle
Eaton Specification Sheet - CSR63542
Interlocked design prevents energization during maintenance, boosting operator safety and reducing restart-related downtime in drive systems and conveyors. This CSR63542 supports 60A load with a 1-1/4" trade size and a wide voltage range of 250–600 VAC, enabling high-horsepower applications such as material handling, pumps, and processing lines with fewer components and simpler wiring. The Krydon fiberglass-reinforced polyester housing provides exceptional durability in washdown and harsh environments, while IP66 and NEMA 3/4/4X/12 ratings ensure reliable service in outdoor or damp locations, minimizing enclosure corrosion and failure risk. Brass contacts offer robust conductivity and longevity, while the non-fused configuration simplifies maintenance and replacement procedures. NEC/CEC compliance and ordinary/non-hazardous area classification support nationwide code adherence for facility automation projects. The solution remains compatible with the Arktite CSR interlocked receptacles family, streamlining spare parts and upgrade paths in existing installations.
Get a Quick Quote for a Eaton Crouse-Hinds CSR63542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CSR63542?
Enquire Now
FAQs
CSR63542 is ideal for motor control centers, control panels, conveyors, and automated lines where a robust, interlocked nonmetallic receptacle is required to safely disconnect power and prevent accidental energization during maintenance.
Yes. It features IP66 ingress protection and NEMA ratings 3, 4, 4X, and 12, making it suitable for outdoor installations, washdown environments, and other harsh industrial locations.
The unit complies with NEC/CEC standards and is listed for Ordinary/Non-Hazardous locations, with Canadian certification references available in UL documentation for motor controllers and related equipment.
The interlock prevents energization during door or cover removal, reducing the risk of shock or unintended startup. This improves safety during servicing and simplifies lockout/tagout compliance in industrial facilities.
Plan for a 7.87 in length, 7.78 in width, and 19.26 in height footprint, with a 1-1/4" trade size and 60A rating. Use Krydon housing and brass contacts for reliable operation in 250–600 VAC systems, and reference NEC/CEC compliance for proper panel integration.
