Eaton Crouse-Hinds CZP-12-310-PN - 30A 12 Shell
Part Number: CZP-12-310-PN
Quick Summary
CZP-12-310-PN is a Roughneck CZ insert kit for 30A power and signal connections in industrial control panels. In the field, engineers often battle unreliable mating and inconsistent crimps that lead to downtime and costly repairs. This model carries UL Canada certification for the CZ Series and is rated for Ordinary/Non-Hazardous Locations, providing compliance confidence in data, signal, and power applications. The compact 12 shell and #12 AWG contact size streamline enclosure design, while crimp termination delivers durable, vibration-resistant connections. By standardizing on this insert kit, you can shorten assembly time, improve reliability, and reduce field rework across manufacturing and process environments. The Roughneck compatibility and predictable maintenance cycles add measurable business value over time.
Product Information
Extended Description

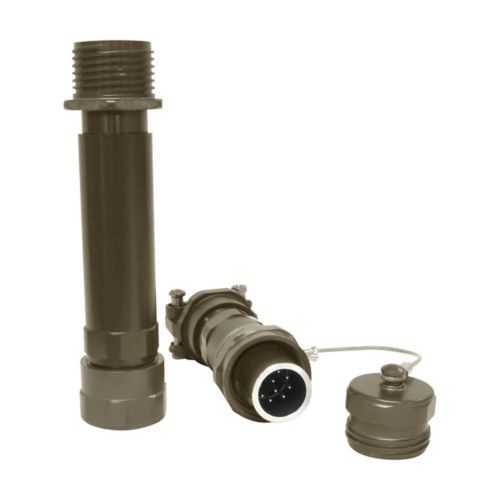

CZP-12-310-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-310-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428812
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating enables robust power distribution to heavy equipment, reducing thermal stress and improving overall circuit reliability. Business Impact: Higher tolerance for short surges and smoother operation of pumps, motors, and actuators in demanding environments. Application: Ideal for factory automation panels and process control nodes where dependable power delivery is critical. Feature: Shell size 12 with #12 AWG contact size standardizes wiring and mating across CZ insert families. Business Impact: Reduces cable misfit, simplifies stocking, and speeds up panel builds. Application: Common in control cabinets requiring compact, high-density terminations. Feature: Connector gender is Male with Pin contacts and crimp termination. Business Impact: Facilitate quick field assembly with common crimp tools while maintaining secure, low-impedance connections. Application: Data and control circuits in rugged environments. Feature: Area classification Ordinary/Non-Hazardous Locations plus Canadian CZ Series certification. Business Impact: Provides regulatory confidence and safer deployment in standard factory floors. Application: Industrial facilities with non-hazardous location requirements. Feature: Compatibility with Roughneck multi-pin and single-pole connectors and documented installation guidance. Business Impact: Streamlines inventory, training, and maintenance planning. Application: OEMs and integrators pursuing repeatable, scalable panel assemblies. Feature: Lightweight, compact footprint (2.06 in L, 1.41 in H/W) supports dense enclosures. Business Impact: Reduces panel size, improves airflow, and lowers shipping costs.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-310-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-310-PN?
Enquire Now
FAQs
Yes. CZP-12-310-PN uses the 12-shell size and #12 AWG crimp contacts that align with Roughneck CZ insert families, enabling straightforward mating with compatible CZ housings and ensuring consistent termination methods across multi-pin and single-pole configurations.
The insert kit supports up to 30A with #12 AWG conductors. It uses crimp terminations on a male pin contact, shell size 12, and is designed for reliable, vibration-resistant connections suitable for industrial control panels and equipment wiring.
It is ideal for data, signal, and power connections within ordinary/non-hazardous locations in control panels, automation cabinets, and motor control centers where compact, high-density connectors are needed and field serviceability matters.
CZP-12-310-PN references UL Canada certification for the CZ Series and is rated for Ordinary/Non-Hazardous Locations. These certifications support regulatory compliance, safer operation in typical industrial facilities, and smoother integration in North American projects.
Use the correct crimp tool for #12 AWG, verify connector alignment before mating, and follow the IF 1688 instructions for Roughneck multi-pin assemblies. Standardizing on this kit reduces field rework, shortens assembly time, and simplifies maintenance planning across multiple lines.
