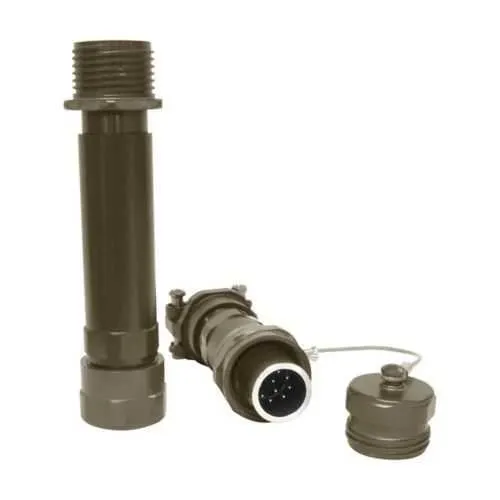

Eaton Crouse-Hinds CZP-12-310-SN Roughneck insert kit - 30A
Part Number: CZP-12-310-SN
Quick Summary
CZP-12-310-SN is a Roughneck insert kit used to connect #12 AWG conductors in industrial power distribution. Engineers and maintenance teams often wrestle with reliable, easy-to-mate connectors that withstand harsh environments and minimize downtime. This CZ insert kit delivers a robust 30 A, female socket, crimp termination for quick field assembly in ordinary/non-hazardous locations, with compatible shell size 12. UL-listed for Canada and supported by Eaton/Crouse-Hinds documentation, it helps your panel builds meet regulatory expectations while reducing rework. By choosing a standard, field-proven option, you can shorten installation time, simplify spares management, and improve overall panel reliability in automation and process control applications.
Product Information
Extended Description
CZP-12-310-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-310-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428829
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-310-SN
Eaton Specification Sheet - CZP-12-310-SN
Feature: 30A amperage rating with #12 AWG contact size; Business Impact: supports reliable, high-current firmware and motor control connections without oversized hardware; Application: electrical panels and machine enclosures in automation. Feature: Socket contact with crimp termination; Business Impact: reduces field assembly time and improves connection integrity, lowering rework and warranty calls; Application: quick-mount power distribution in rugged environments. Feature: Shell size 12 compatibility for Roughneck CZ series; Business Impact: ensures seamless integration with existing CZ connectors, minimizing part variety and procurement costs; Application: retrofit and new-build automation panels. Feature: Ordinary/Non-Hazardous Location area classification; Business Impact: simplifies compliance and prevents over-engineering for non-hazardous sites; Application: data, signal, and power applications in standard industrial facilities. Feature: Documentation and certifications including Canadian UL listings; Business Impact: accelerates approval cycles and supplier qualification; Application: regulated manufacturing environments and maintenance programs. Feature: Compact dimensions and light weight (2.06 in L, 1.41 in H/W, 0.25 lb); Business Impact: eases panel layout and reduces install time; Application: space-constrained control cabinets and serviceable machinery.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-310-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-310-SN?
Enquire Now
FAQs
CZP-12-310-SN is a 12-shell insert kit with a female socket for #12 AWG conductors, designed to mate with Roughneck CZ series multi-pin and single-pole connectors. It fits ordinary/non-hazardous locations and suits power, signal, and control panel assemblies, simplifying part numbers and spares management.
Key specs include a 30A amperage rating, shell size 12, contact size #12 AWG, and crimp termination for a secure, field-terminable connection. These specs translate to reliable high-current performance in standard industrial panels and reduced risk of contact fatigue or mis-mating during assembly.
Yes, it is suited for automation panels, robotics, and motor control within ordinary/non-hazardous locations. Its 30A capacity with 12 AWG conductors provides a balance of performance and compact footprint ideal for space-constrained control cabinets in manufacturing and process industries.
The CZP-12-310-SN supports area classification for Ordinary/Non-Hazardous Locations and has UL Canadian certification coverage for the CZ Series, as documented in the provided certification and datasheet resources. This helps streamline regulatory approvals for panel builds in Canada and similar regions.
Expect faster installation, easier spares management, and improved connection reliability due to crimped socket terminations and standardized CZ compatibility. Reduced downtime and lower field repair costs typically translate to faster project turnaround and lower lifecycle costs in automation and control environments.
