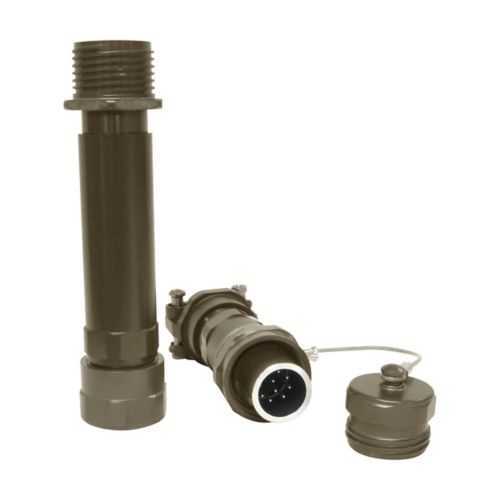

Eaton CZP-12-314-PN Roughneck CZ Insert Kit for 12 Shell
Part Number: CZP-12-314-PN
Quick Summary
CZP-12-314-PN is a Roughneck CZ insert kit for high-current, multi-pin connections in harsh industrial environments. Engineers often face connection failures, moisture ingress, and slow field replacements in dense control panels. UL certification for the CZ Series (US and Canada) ensures reliable performance in data, signal, control, and power applications; the product is classified for Ordinary/Non-Hazardous Locations. This kit also delivers value through compact dimensions, compatibility with #10 AWG crimp pins, and a 40A rating, enabling quicker installs and reduced spare parts in demanding industrial environments.
Product Information
Extended Description
CZP-12-314-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 40A, Male, #10 AWG, Crimp, Pin, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-314-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428836
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#10 AWG
Amperage Rating
40A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-314-PN
Eaton Specification Sheet - CZP-12-314-PN
Feature: 40A amperage rating with a 12-shell design. Business Impact: Supports high-current power and signal integrity in demanding applications, reducing overheating and contact resistance. Application: Industrial motor control panels and heavy equipment where reliable power delivery is critical. Feature: Pin contact with crimp termination for #10 AWG conductors. Business Impact: Proven, jam-free assembly that lowers field rework and improves install speed. Application: Quick-mount connections in tight panel layouts. Feature: Male connector configuration within the Roughneck CZ insert family. Business Impact: Ensures clear mating orientation and reduces mis-wiring risk in dense wiring harnesses. Application: Data/Control lines alongside power feeds in process automation. Feature: Compact footprint with 2.06 in length and 1.41 in width/height. Business Impact: Saves panel space and allows more efficient cable routing. Application: Enclosures with limited mounting area in heavy industrial environments. Feature: UL certifications for CZ Series US and Canada. Business Impact: Compliance assurance for safety standards and regulatory alignment. Application: Global deployment in data, signal, control, and power networks. Feature: Ordinary/Non-Hazardous area classification. Business Impact: Aligns with non-hazardous location requirements, simplifying risk management. Application: Standard industrial facilities with non-hazardous environments.
