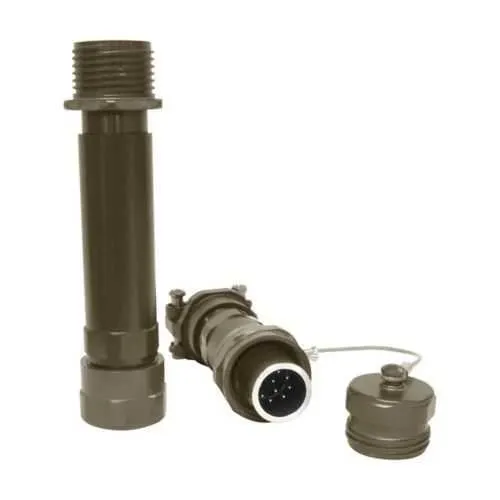

Eaton CZP-12-314D-SN Roughneck CZ Insert Kit - Special polarity
Part Number: CZP-12-314D-SN
Quick Summary
CZP-12-314D-SN is a Roughneck CZ insert kit for 40A power connections in rugged industrial environments. Engineers often grapple with unreliable mating, polarity errors, and costly field rework in harsh locations. This kit aligns with the Roughneck CZ family and supports ordinary/non-hazardous locations, backed by Canadian certification documentation for the CZ Series. With 12-shell design, #10 AWG crimp sockets, and a focus on special polarity, it streamlines installation and reduces downtime in automation panels while enabling safer, more reliable interconnects for control systems and motors.
Product Information
Extended Description
CZP-12-314D-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 40A, Female, #10 AWG, Crimp, Socket, 12 shell, Special polarity
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-314D-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276460089
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#10 AWG
Amperage Rating
40A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Special features
Special polarity
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-314D-SN
Eaton Specification Sheet - CZP-12-314D-SN
40A current rating delivers reliable power for control panels, reducing nuisance trips and component stress, which translates to lower maintenance costs and increased line availability in manufacturing environments. Feature → Business Impact → Application: The 40A rating paired with #10 AWG termination supports robust, long-life connections for heavy equipment and automation drives, minimizing rework and field visits in motor controllers and power distribution blocks. The socket contact with crimp termination enables quick, tool-free field assembly, reducing commissioning time and improving first-pass installation accuracy in conveyor systems and packaging lines. The 12 shell size ensures compatibility with Roughneck multi-pin housings, enabling modular upgrades and inventory consolidation while lowering total cost of ownership for spare parts. Special polarity reduces mis-wiring risk, reinforcing safety compliance in complex control networks and data/power interfaces in process automation. All features work together to improve efficiency, traceability, and uptime in non-hazardous environment applications.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-314D-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-314D-SN?
Enquire Now
FAQs
The insert kit uses a 12-shell housing with #10 AWG sockets terminated by crimp. Ensure power is off, use compatible CZP receptacles, apply the correct crimp tool per spec, and verify polarity. This delivers a secure, field-serviceable connection well-suited for control panels and industrial cabinets.
A 40A rating indicates the maximum continuous current capability per circuit. Paired with #10 AWG conductors, it supports high-load devices while minimizing conductor heating and connector stress. Use appropriate protection devices to maintain safe operation in automation equipment and motors within non-hazardous environments.
Yes, in ordinary/non-hazardous locations. The socket contact and crimp termination provide a reliable interconnect for both data and power in control panels, robotics, and automated lines. The 12-shell format supports modular, scalable connector assemblies in rugged manufacturing environments.
The product is specified for Ordinary/Non-Hazardous Locations, and Canadian certification documentation for the CZ Series is available. Additional UL-related Canadian certification references are provided in the product literature, ensuring compliance for industrial installations and regulated environments.
The insert kit enables quick field replacement with crimped, socket contacts, reducing downtime and maintenance labor. Its robust 40A rating and compatibility with existing Roughneck CZ housings support longer service life for heavy equipment and automation panels, delivering lower total cost of ownership and faster return on investment.
