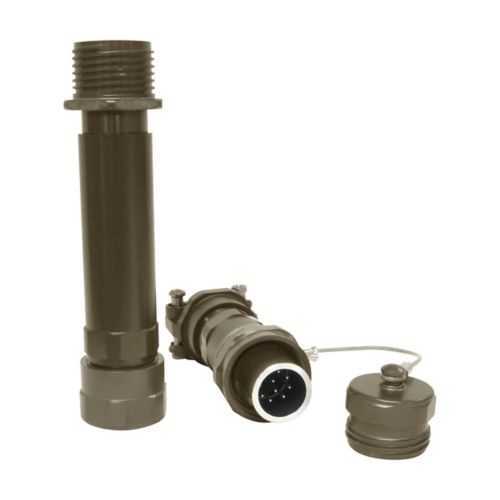

Eaton CZP-12-316-SN Roughneck CZ Insert Kit - UL Certified
Part Number: CZP-12-316-SN
Quick Summary
CZP-12-316-SN is a Roughneck CZ insert kit for 40A, 600V multi-pin connections in industrial electrical panels. This solution addresses the common pain point of securing reliable, vibration-tolerant terminations in harsh environments. UL certifications across CZ Series (US and Canada) and an Ordinary/Non-Hazardous Location rating provide confidence for compliance and field deployment. The kit integrates seamlessly with other Roughneck components, while offering clear installation documentation. By standardizing on this model, engineering teams can reduce wiring complexity, shorten commissioning times, and improve panel consistency across facilities. Secondary considerations include compatibility with #10 AWG conductors and straightforward crimp termination for repeatable results.
Product Information
Extended Description
CZP-12-316-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 40A, Female, #10 AWG, Crimp, Socket, 12 shell, 600 Vac
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-316-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.25 lb
UPC
662276428867
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#10 AWG
Amperage Rating
40A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-316-SN
Eaton Specification Sheet - CZP-12-316-SN
Feature: 40 A at 600 VAC rating. Business Impact: Supports high-power machines and controllers without oversizing or additional adapters, reducing part counts and potential failure points. Application: ideal for control panels and motor-start circuits in industrial automation environments. Feature: Shell size 12 with #10 AWG contact. Business Impact: Enables direct wiring from common harnesses, improving conductor routing and reducing splice points. Application: data, signal, and power distribution within Roughneck assemblies. Feature: Socket contact with crimp termination. Business Impact: Delivers fast, vibration-resistant, repeatable terminations with standard tooling, cutting panel downtime. Application: field wiring in non-hazardous locations where reliability matters. Feature: Ordinary/Non-Hazardous Location rating. Business Impact: Simplifies compliance and procurement in typical factory floors, avoiding unnecessary safety classifications. Application: manufacturing lines, packaging, and process controls. Feature: Full documentation and compatibility. Business Impact: Reduces risk during spec-to-supply transitions with readily available installation sheets, catalogs, and UL listings. Application: system integrators deploying CZ series across multi-line equipment. Feature: UL certifications for CZ Series (US and Canada). Business Impact: Provides traceable approvals, easing regulatory audits and customer acceptance. Application: international deployments needing recognized safety credentials.
