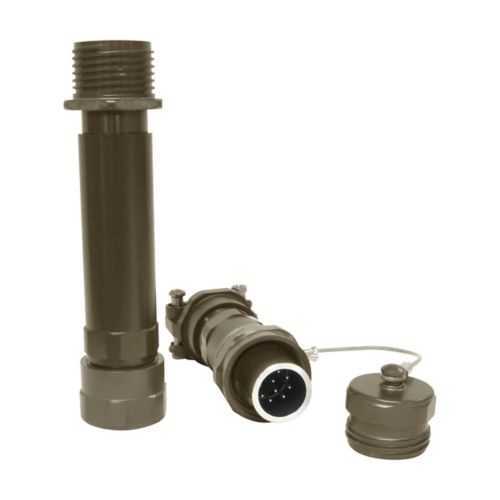

Eaton Crouse-Hinds CZP-12-322-PN Roughneck CZ insert kit - UL Listed
Part Number: CZP-12-322-PN
Quick Summary
CZP-12-322-PN Roughneck CZ insert kit provides rugged multi-pin power connections for industrial equipment. Engineers often face unreliable terminations and mis-mating issues that lead to downtime; this insert kit mitigates that with a 12-shell housing and #10 AWG crimp pins designed for secure, repeatable terminations in harsh environments. UL certification for the CZ Series supports US and Canada, and the product’s Ordinary/Non-Hazardous Locations classification helps control compliance costs. By aligning with Roughneck connectors, the solution delivers consistent performance, simplified maintenance, and scalable wiring for power, control, and data needs, delivering measurable reliability improvements across manufacturing and processing facilities. This kit complements existing Roughneck families to streamline replacement and upgrade projects.
Product Information
Extended Description
CZP-12-322-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 40A, Male, #10 AWG, Crimp, Pin, 12 shell, 4 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-322-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.25 lb
UPC
662275356093
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#10 AWG
Amperage Rating
40A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: Shell size 12 with 12-shell housing and 4 contacts. Business Impact: Enables higher-pin density and robust power distribution in compact enclosures, reducing panel footprint and part count. Application: Suitable for heavy-duty control panels and equipment racks where space is at a premium. Feature: Amperage rating 40A with #10 AWG contact size. Business Impact: Supports demanding motor and actuator circuits with ample current capability, lowering heat buildup and failure risk. Application: Industrial conveyors, pumps, and drive systems demanding reliable 40A performance. Feature: Crimp termination with pin contacts. Business Impact: Delivers repeatable, vibration-resistant joints that resist loosening and corrosion, cutting maintenance time. Application: Field wiring and cabinet terminations in non-hazardous environments. Feature: UL certification for CZ Series and Ordinary/Non-Hazardous Location classification. Business Impact: Facilitates regulatory compliance and safer procurement with documented approvals. Application: US and Canada installations requiring recognized safety standards. Feature: Compact footprint and light weight (2.42 in length, 2 in height/width, 0.25 lb). Business Impact: Easier handling, shipping, and installation in dense electrical rooms. Application: Retrofit projects and new builds where space is limited. Feature: Compatibility with Roughneck multi-pin connectors. Business Impact: Simplifies stocking and maintenance with interchangeable inserts and common tooling. Application: Industrial automation and process control networks requiring scalable connector solutions. Industry Context: Real-world deployments benefit from standardized CZ insert kits to reduce downtime during upgrades and minimize training needs for maintenance staff.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-322-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-322-PN?
Enquire Now
FAQs
Yes. CZP-12-322-PN is designed for use with Roughneck CZ insert kits and CZ-series shells. It uses a 12-shell housing with #10 AWG crimp contacts and a male pin configuration, ensuring proper mating with compatible CZP-12 family connectors. Always verify the mating shell and contact type to guarantee reliable alignment and crimped terminations. Use the recommended crimp tools and inspection procedures to ensure consistent performance in industrial environments.
The CZP-12-322-PN is rated for 40A and uses #10 AWG wire contacts. This combination supports robust power delivery for motors and control circuits while maintaining proper termination integrity. The 12-shell, pin contact design further enhances current handling by providing multiple contact points and secure crimps, reducing resistance hotspots and potential failures in vibration-prone installations.
Ideal for heavy industrial equipment and process control environments, including conveyors, motors, pumps, and control panels that require rugged, multi-pin power and data connections. The Ordinary/Non-Hazardous Location classification makes it suitable for general manufacturing floors and non-hazardous control rooms. Its compact footprint and 12-shell configuration support dense panel layouts and scalable networking across automation systems.
CZP-12-322-PN carries UL certification for the CZ Series, with US and Canada compatibility. It is classified for Ordinary/Non-Hazardous Locations, aligning with typical industrial facility safety requirements. These certifications help simplify procurement and installation planning, ensuring that the insert kit meets recognized safety standards for non-hazardous environments.
The kit’s crimped pin contacts and 12-shell design yield more reliable terminations, reducing field rework and downtime. Its compatibility with Roughneck connectors enables easier replacements and servicing, lowering lifecycle costs. By providing a standardized, UL-listed solution, it also reduces training time and accelerates project timelines for upgrades or expansions in automation and electrical infrastructure.
