Eaton CZP-12-324-PN Roughneck CZ insert kit - 30A
Part Number: CZP-12-324-PN
Quick Summary
CZP-12-324-PN insert kit from Eaton Crouse-Hinds provides rugged, multi-pin connectivity for heavy industrial equipment. In the field, assemblies frequently suffer from loose terminations and slow wiring, leading to downtime. These CZ insert kits are UL-listed for Canada and suitable for Ordinary/Non-Hazardous locations, supporting safer, compliant operation. With compact dimensions and a 30A rating using #12 AWG crimp pins, they streamline installs and reduce downtime. For engineers and procurement teams, this translates to faster assemblies, lower maintenance costs, and reliable performance in demanding environments. The data sheet and installation guides provide practical steps for safe assembly and ongoing reliability. This aligns with project timelines and total cost of ownership goals.
Product Information
Extended Description

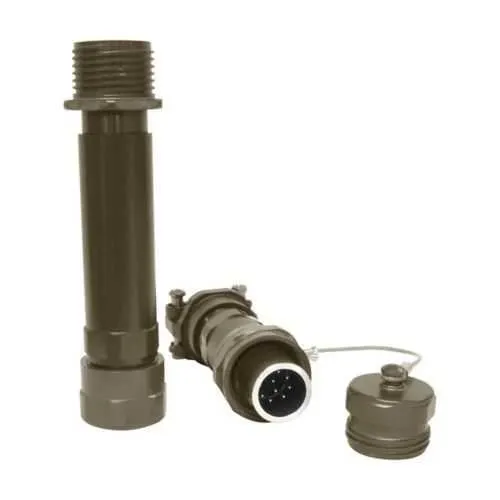

CZP-12-324-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 12 shell, 5 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-324-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.45 lb
UPC
662275337238
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating with #12 AWG contact size and 12-shell. Business Impact: Enables high-current motor and control wiring with secure crimp termination, reducing overheating and maintenance needs. Application: Heavy industrial equipment and power/control circuits in non-hazardous settings. Feature: Male pin contacts with crimp termination. Business Impact: Improves connection reliability, minimizes risk of loose connections in vibration-prone environments, and speeds field terminations. Application: On-site cable assemblies for conveyors, pumps, and processing lines. Feature: Compact footprint—2.06 in length and 1.41 in width/height, weight about 0.45 lb. Business Impact: Saves panel space, simplifies enclosure design, and lowers installation time. Application: Tight, rugged enclosures in automated systems. Feature: Compatibility with Roughneck multi-pin connectors family. Business Impact: Streamlines parts inventory and maintenance across existing CZ deployments; improves interchangeability and spare parts availability. Application: Plant-wide retrofits and new installations. Feature: Area classification Ordinary/Non-Hazardous Locations. Business Impact: Supports safe, compliant operation in general plant environments; reduces risk and simplifies documentation. Application: General manufacturing floors, non-hazardous control panels.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-324-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-324-PN?
Enquire Now
FAQs
CZP-12-324-PN is a Roughneck CZ insert kit, designed for use with 12-shell modules and standard CZ family assemblies. Always verify mating CZ components and follow catalog guidance to ensure proper fit and performance.
Use standard #12 AWG crimp pins and the appropriate crimp tool to achieve a secure, high-current connection. Ensure the wire length accommodates proper insertion into the 12-shell housing and verify a solid crimp before mating with the counterpart.
Yes. The insert kit is classified for Ordinary/Non-Hazardous Locations, making it suitable for general plant environments while delivering dependable performance in automation and power/control wiring.
Official brochures, catalog pages, and installation sheets are available, including Roughneck multipin/connectors literature and the CZP-12-324-PN datasheet. These resources help with installation, specs, and compliance considerations.
The unit features a 12-shell shell size, 30A rating, 2.06 in length, 1.41 in height and width, and a 0.45 lb weight, with #12 AWG contact termination—data important for panel space planning and wiring density.
