Eaton CZP-12-324-SN Roughneck CZ Insert Kit - 30A Socket
Part Number: CZP-12-324-SN
Quick Summary
CZP-12-324-SN is a Roughneck CZ insert kit that enables robust, removable power connections in heavy industrial equipment. Field technicians often face field repairability challenges and messy terminations when wiring rugged multi-pin connectors in harsh environments. This kit is UL-certified for the CZ Series and is suitable for Ordinary/Non-Hazardous Locations, providing code-compliant performance. Designed for #12 AWG wires with a 12-shell, crimped socket configuration, it supports streamlined maintenance and faster commissioning. Coupled with Eaton’s durable Roughneck line, it helps reduce downtime and total cost of ownership for critical plant systems. In short, you gain reliable connectivity, easier servicing, and predictable performance in demanding environments.
Product Information
Extended Description

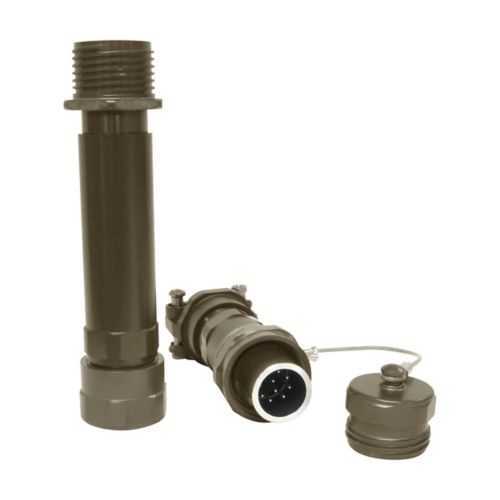

CZP-12-324-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 12 shell, 5 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-324-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662275337245
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating with socket contact and crimp termination. Business Impact: Delivers robust, high-current power delivery with secure, vibration-resistant connections, reducing downtime from loose terminations. Application: Heavy equipment panels and motor control centers where consistent current and reliability are critical. Feature: 12-shell performance with #12 AWG conductors. Business Impact: Enables multiple circuits in a single connector, simplifying harness routing and inventory management. Application: Data, control, and power interconnects in complex industrial systems. Feature: Compact footprint (2.06 in length, 1.41 in height, 1.41 in width) with a 12 shell. Business Impact: Fits into crowded control enclosures and space-constrained panels without compromising reach or integrity. Application: Panel upgrades and retrofit projects in limited spaces. Feature: 5 contact positions with socket-style contacts. Business Impact: Increases connectivity density while preserving serviceability and future expandability. Application: Multi-pin connectors for integrated automation networks. Feature: UL certification (CZ Series) and Ordinary/Non-Hazardous Location classification. Business Impact: Supports compliance and safer operation in standard industrial environments, reducing regulatory risk. Application: US/Canada facilities requiring CZ Series components in non-hazardous zones. Feature: Crimp termination compatible with #12 AWG conductors. Business Impact: Enables fast, field-installable terminations with common tooling, lowering labor time. Application: Field assemblies and service calls where rapid reconnection is essential. Feature: Compatibility with Roughneck heavy industrial multi-pin connectors. Business Impact: Simplifies sourcing and maintenance by staying within a trusted connector family. Application: Retrofit and new builds in process plants and manufacturing lines.Additional Context: Documentation such as IF 1688 installation sheets and the Roughneck catalogs support proper assembly, ensuring technicians follow best practices for safe and reliable connections.
