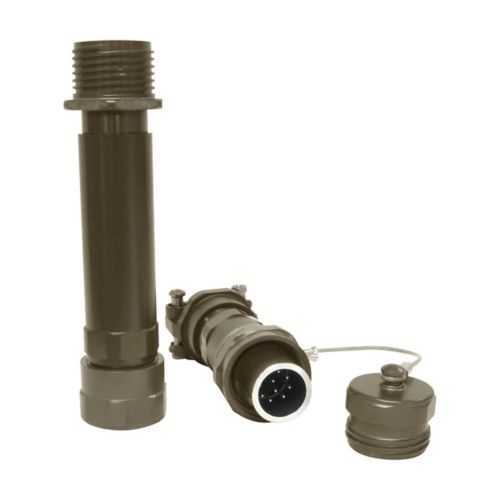

Eaton Crouse-Hinds CZP-12-327-PN Insert Kit - 30A
Part Number: CZP-12-327-PN
Quick Summary
CZP-12-327-PN is a rugged insert kit delivering 30A, #12 AWG pin connections for Roughneck CZ connectors. Engineers often grapple with tight panel spaces and the need for durable, crimped terminations that won’t loosen in vibration. This kit is UL-listed for CZ Series and is rated for ordinary/non-hazardous locations, supporting safe, compliant installation in general industrial environments. By standardizing on this insert kit, teams can streamline assembly, reduce field labor, and ensure repeatable electrical performance across control panels and machinery.
Product Information
Extended Description
CZP-12-327-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 12 shell, 3 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-327-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428874
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A current rating with #12 AWG crimp pins delivers robust power transmission for demanding equipment. Business Impact: Enables reliable continuity under vibration and high-load conditions, reducing downtime and rework. Application: Suitable for Roughneck CZ multi-pin connectors in heavy industry where consistent current performance is essential.Feature: 12-shell, male pin contact with crimp termination provides precise mating and secure connections. Business Impact: Minimizes misconnections and field termination failures, improving first-pass wiring success and long-term reliability. Application: Data, signal, and control harnesses where quick field servicing is needed.Feature: Compact dimensions (2.06 in L, 1.41 in W, 1.41 in H) save enclosure space and simplify panel layout. Business Impact: Supports denser control cabinets and easier retrofits without sacrificing performance. Application: Space-constrained industrial equipment and modular systems.Feature: Area classification: Ordinary/Non-Hazardous Locations. Business Impact: Clear safety and compliance posture for generic plant environments, reducing project risk. Application: General-purpose installations in manufacturing and processing facilities.Feature: UL-listed CZ Series compatibility. Business Impact: Streamlines procurement and supplier alignment, ensuring certified interoperability. Application: Projects requiring proven, industry-standard components in Roughneck connectors.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-327-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-327-PN?
Enquire Now
FAQs
The CZP-12-327-PN is designed for Roughneck CZ Series connectors with shell size 12 and supports #12 AWG crimped pins in a male, 12-shell configuration, ensuring proper mating and reliable performance.
Key specs include a 30A amperage rating, #12 AWG contact size, crimp termination, male contact, shell size 12, and a 3-contact arrangement within the insert kit.
No. The product is rated for ordinary/non-hazardous locations, so confirm your environment complies with this classification before use.
Use standard CZ insert tooling and compatible crimp dies for #12 AWG contacts to ensure a secure, code-compliant termination and consistent performance.
Adopting this kit reduces field wiring time, minimizes termination failures, and streamlines procurement by aligning with UL-listed CZ Series components, delivering faster commissioning and lower total cost of ownership.
