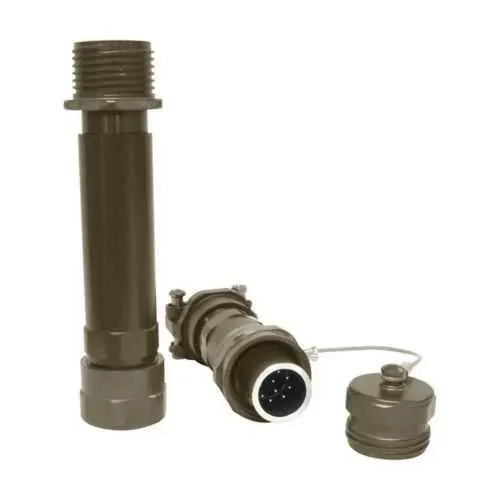

Eaton CZP-12-327-SN Roughneck CZ insert kit - 30A
Part Number: CZP-12-327-SN
Quick Summary
CZP-12-327-SN Roughneck CZ insert kit enables high-current, 30A power connections for rugged industrial machinery. Operators often struggle with unreliable terminations and mismatched connectors in harsh environments. The design supports Ordinary/Non-Hazardous Locations area classification and is linked to Canadian CZ Series certifications, supporting regulatory compliance. Crimp termination for #12 AWG within shell size 12 delivers consistent performance in data, signal, and power circuits. Choosing this insert kit reduces assembly steps and inventory complexity, while ensuring a secure, crimp-based connection. It aligns with Roughneck connector families for seamless field installations.
Product Information
Extended Description
CZP-12-327-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 12 shell, 3 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-327-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428881
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-327-SN
Eaton Specification Sheet - CZP-12-327-SN
Feature: 30A amperage rating with shell size 12 and #12 AWG contact; socket contact with crimp termination. Business Impact: Enables robust, high-current power transfer with reliable, vibration-resistant connections, reducing field failures. Application: Suitable for heavy machinery, conveyors, and power distribution in harsh industrial environments. Feature: Female socket and crimp termination streamline kit-based assembly; reduces field labor and mis-mating risk. Business Impact: Cuts installation time and error rate, accelerating project timelines. Application: Ideal for retrofit projects and new builds in automation lines. Feature: Ordinary/Non-Hazardous Locations area classification compatibility; aligned with Roughneck CZ guidelines. Business Impact: Improves regulatory compliance and simplifies safety documentation. Application: Data, control, and power circuits in non-hazardous facilities. Feature: 12 shell size with 12 AWG conductors; standardized crimp tooling compatibility. Business Impact: Lower spare parts variety and predictable performance across installations. Application: OEMs and integrators stocking CZ insert kits for common CZ series connectors. Feature: Pre-defined component configuration (30A, socket, crimp); reduces design-to-install risk. Business Impact: Improves project predictability and lifecycle maintenance planning. Application: Industrial robotics, material handling, and process control applications. Note: Proper crimp tooling and technique are essential to achieve consistent results and long-term reliability.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-327-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-327-SN?
Enquire Now
FAQs
CZP-12-327-SN is designed as a CZ insert kit for Roughneck multi-pin connectors with shell size 12. It uses a socket contact for #12 AWG conductors and terminates via crimp. Compatibility is ensured when paired with corresponding CZ series housings, providing a secure mating and consistent electrical performance in non-hazardous locations.
This insert kit is intended for high-current power connections in heavy industrial equipment, conveyors, and process control systems. Its 30A rating and 12 AWG contact make it suitable for data, signal, and power circuits within ordinary/non-hazardous environments, where rugged vibration resistance and durable crimp terminations are critical.
CZP-12-327-SN supports Ordinary/Non-Hazardous Locations area classification and is associated with Canadian CZ Series certifications, as reflected in UL/Canada certification references for Roughneck components. Always verify local regulatory requirements and cross-check with the latest UL/CSA documentation for your specific installation.
Key specs include a 30A amperage rating, shell size 12, contact size #12 AWG, and a socket contact with crimp termination. The combination ensures reliable high-current performance with a compact footprint suitable for rugged industrial environments and standardized field assemblies.
Official documentation includes the Eaton specification sheet for CZP-12-327-SN and installation guidance. Access the datasheet and related literature via Eaton’s product literature pages or the provided links in the product data: Roughneck catalog pages, installation instructions, and form/guide documents available on Eaton’s site.
