Eaton Crouse-Hinds CZP-12-333-PN Insert Kit - UL-Certified CZ Series
Part Number: CZP-12-333-PN
Quick Summary
CZP-12-333-PN is an Eaton Crouse-Hinds Roughneck CZ insert kit designed for reliable multi-pin connectivity in heavy industrial environments. It addresses common field challenges such as loose contacts, misalignment, and wear in harsh locations by delivering a robust, crimped pin connection. UL-listed for data, signal, control and power applications and classified for Ordinary/Non-Hazardous Locations, this CZ insert kit aligns with strict safety and regulatory needs. The rugged design is complemented by a compact form factor and standardized #16 AWG crimp pins, helping to reduce installation time and support predictable maintenance across large-scale facilities. For procurement teams, the combination of reliability, compatibility, and clear documentation translates into fewer rework cycles and lower total cost of ownership.
Product Information
Extended Description

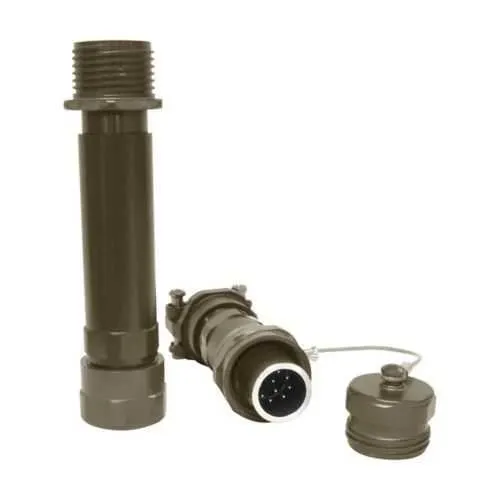

CZP-12-333-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 12 shell, 4 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-333-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428898
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-333-PN
Eaton Specification Sheet - CZP-12-333-PN
Feature → 18 A amperage rating with a 12-shell, four-contact arrangement using #16 AWG crimp pins. Business impact → Supports medium-power distribution with a small footprint, delivering stable electrical performance and reduced cabinet congestion. Application → Suitable for machine controls and data networks in non-hazardous environments where reliability is essential. Feature → Male pin contact with Crimp termination. Business impact → Ensures vibration resistance and repeatable terminations, minimizing contact creep and intermittent failures. Application → Ideal for rugged industrial connectors in demanding environments. Feature → Compact dimensions (2.06 in length, 1.41 in height and width) and a weight of 0.25 lb. Business impact → Easier panel planning and lighter field replacements, lowering service time and labor costs. Application → Helpful for retrofit projects and space-constrained enclosures. Feature → UL certification (CZ Series) and Ordinary/Non-Hazardous Location classification. Business impact → Compliance with industrial safety standards and broader regulatory acceptance. Application → Supports audits, cross-site deployments, and certified performance in data/control/power applications. Feature → Comprehensive documentation with installation guidance and compatibility data. Business impact → Reduces guesswork, speeds procurement, and aligns with standard Eaton Roughneck workflows. Application → Quick integration with CZP-12-333-PN into existing CZ connector ecosystems in plants and facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-333-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-333-PN?
Enquire Now
FAQs
CZP-12-333-PN is a Roughneck CZ insert kit designed for CZ series multi-pin connectors. It uses a 12-shell configuration with four pins, supporting #16 AWG conductors and crimp termination. It fits standard CZ insert systems and pairs with corresponding housings to form reliable, high- density connections in non-hazardous environments.
Begin by selecting the appropriate crimp tool for #16 AWG conductors and ensuring proper insulation stripping length. Insert each conductor into a labeled pin contact, crimp to specification to ensure a secure bore, and verify that each pin fully seats into the 12-shell insert. Use the provided installation instructions (IF 1688) for exact tooling and sequence to avoid mis-contacts.
Yes. CZP-12-333-PN is part of the Roughneck CZ Series with UL certifications for data, signal, control and power applications. It is listed for Ordinary/Non-Hazardous Locations, which supports compliance across typical industrial installations and simplifies regulatory approvals during audits and cross-site deployments.
This insert kit is ideal for heavy industrial environments requiring reliable multi-pin connectivity, such as manufacturing lines, process control, and machine automation. Its 18 A rating, #16 AWG crimp contacts, and 12-shell design make it suitable for non-hazardous locations where vibration resistance and quick maintenance are valued.
Using CZP-12-333-PN reduces downtime through secure, vibration-resistant connections and predictable terminations. Its compact footprint and standard crimp process streamline field replacements and maintenance, lowering labor costs and minimizing rework while ensuring compliance with UL CZ Series specifications for long-term reliability.
