Eaton CZP-12-334-SN Roughneck CZ Insert Kit - 18 A, Socket
Part Number: CZP-12-334-SN
Quick Summary
CZP-12-334-SN is a Roughneck CZ insert kit for compact power and signal connections in heavy industry. Engineers often struggle with crimp reliability and downtime when sourcing field-service connectors for harsh environments. It supports Ordinary/Non-Hazardous Locations and UL Canada certification for the CZ Series, aiding compliance. Pairing with Roughneck multi-pin connectors improves panel density and maintenance efficiency, while accommodating 12-shell, #16 AWG copper conductors. This combination delivers a reliable, field-friendly solution for control panels, wiring hubs, and industrial automation assemblies.
Product Information
Extended Description

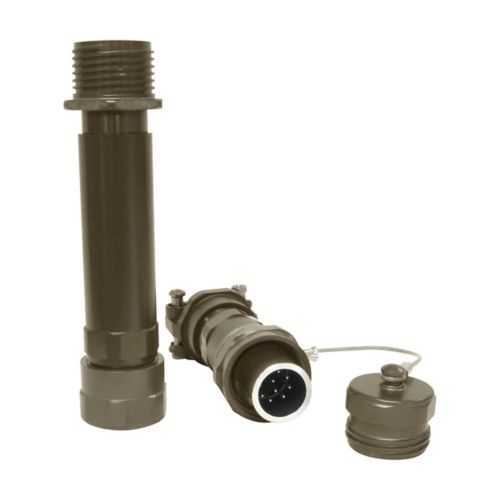

CZP-12-334-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 12 shell, 10 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-334-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.25 lb
UPC
662276428928
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Amperage rating of 18 A ensures robust power handling in control panels, reducing nuisance trips and enhancing equipment uptime in demanding environments. Paired with a compact 12-shell footprint, it enables higher enclosure density and easier wire routing, optimizing space in compact control cabinets and motor control centers. The #16 AWG contact size aligns with common control and signal wiring, improving installation efficiency and reducing the need for rework or custom harnesses during panel builds. The socket contact type with crimp termination provides a secure, vibration-tolerant connection that stands up to industrial vibration and thermal cycling, while simplifying field replacement and maintenance. With 12-shell capacity and up to 10 contacts, the kit supports multi-circuit routing in a single connector, reducing harness complexity and inventory overhead. Compatibility with Roughneck connectors and installation resources (IF 1688) streamlines installation, improves spare-part availability, and minimizes commissioning time for new and retrofit projects.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-334-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-334-SN?
Enquire Now
FAQs
Begin by confirming shell size 12 and contact size #16 AWG. Use the crimp termination to attach the socket contacts, then mate the insert kit with the corresponding Roughneck CZ connector housing. Ensure proper seating and verify that the 18 A rating is not exceeded by connected loads. Reference the IF 1688 instruction sheet for step-by-step guidance and pre-crimp torque specifications.
Key specs include an 18 A amperage rating, 12-shell size, #16 AWG contact size, socket contact type, female gender, and crimp termination. The assembly supports multi-pin configurations with a total of up to 10 contacts in the 12-shell arrangement, suitable for bundled control and power circuits in non-hazardous environments.
No. The product is classified for Ordinary/Non-Hazardous Locations. For hazardous or classified locations, consult a different CZ series or enclosure that meets the applicable explosion-proof or environmental certification requirements, and verify with the latest Eaton/UL guidelines.
It carries area classification for Ordinary/Non-Hazardous Locations and UL Canada certification for the CZ Series, providing regulatory assurance for non-hazardous industrial applications and traceability within North American markets.
Regular inspection of crimp terminations and socket connections during preventive maintenance helps prevent intermittent connections and downtime. Use the provided installation resources and manufacturer guidelines to verify proper crimp standards and to plan for spare parts. The compact 12-shell design reduces harness clutter and simplifies stock management, contributing to lower total cost of ownership.
