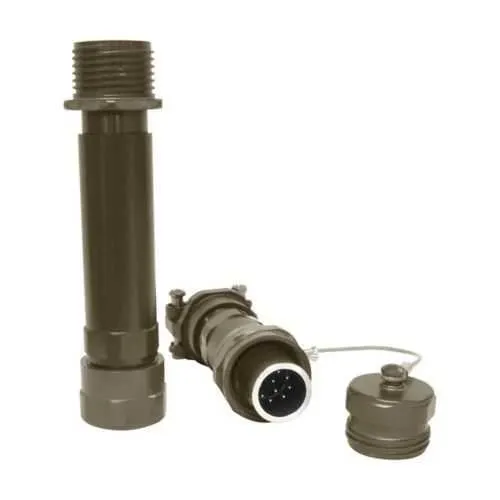

Eaton Crouse-Hinds CZP-12-348-SN Roughneck CZ Insert Kit - 18 A Socket
Part Number: CZP-12-348-SN
Quick Summary
The Eaton Crouse-Hinds Roughneck CZ insert kit CZP-12-348-SN delivers rugged, reliable 18 A socket connections for heavy industrial wiring. Engineers often grapple with connector compatibility, moisture ingress, and maintenance-heavy terminations in harsh environments. This CZ insert kit is certified for Ordinary/Non-Hazardous Locations, with Canadian certifications for the CZ Series to support regulatory compliance. By delivering a compact, 12-shell, 2.06 in length solution with #16 AWG crimp terminals, it reduces installation time and simplifies spare-part inventories for field maintenance teams.
Product Information
Extended Description
CZP-12-348-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 12 shell, 7 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-348-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662275356628
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
The CZP-12-348-SN provides a 12-shell insert kit with a 7-contact, female socket terminated for 18 A, enabling robust high-current paths in Roughneck CZ connectors. This translates to fewer field failures, faster panel builds, and lower lifecycle costs for automation projects. The crimp termination for #16 AWG wire delivers vibration-resilient connections suited to conveyors, presses, and machine controls. Its compact form factor (2.06 in L) supports dense panel layouts and clean routing of power, data, and control wiring. Compatibility with the CZ series shells streamlines spares management and reduces stock SKUs. Documentation and install guides, including IF 1688 sheets and multipin literature, aid quick, compliant installations.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-348-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-348-SN?
Enquire Now
FAQs
Yes. The CZP-12-348-SN is a CZ insert kit designed for Roughneck multi-pin connectors and mates with CZ-series shells. It uses a 12-shell, 7-contact female socket with crimp terminations, and is intended for ordinary/non-hazardous locations in rugged industrial environments.
Begin by preparing the #16 AWG conductors, strip to the correct length, and secure each conductor in the socket contacts per the crimp specification. Use an appropriate crimp tool to achieve a solid mechanical and electrical connection. Once crimped, insert the socket into the 12-shell insert and mate with the CZ-series shell.
This insert kit supports data, signal, and power paths in heavy-industrial equipment such as control panels, conveyors, and robotic systems. Its 18 A rating and 12-shell configuration deliver reliable performance in ordinary-location environments, while the #16 AWG wire supports common automation sensors and actuators.
The CZP-12-348-SN carries Ordinary/Non-Hazardous Locations area classification, and CZ-series components have Canadian certification listings. The available literature confirms compliance through UL Canada documentation for the CZ Series, aiding regulatory approval for non-hazardous industrial environments.
Using the CZP-12-348-SN reduces field maintenance through a robust crimp termination that resists vibration and moisture ingress. The standardized 12-shell, 18 A socket design streamlines spare parts, speeds assembly, and lowers inventory complexity, resulting in lower lifecycle costs and faster time-to-value on new automation projects.
