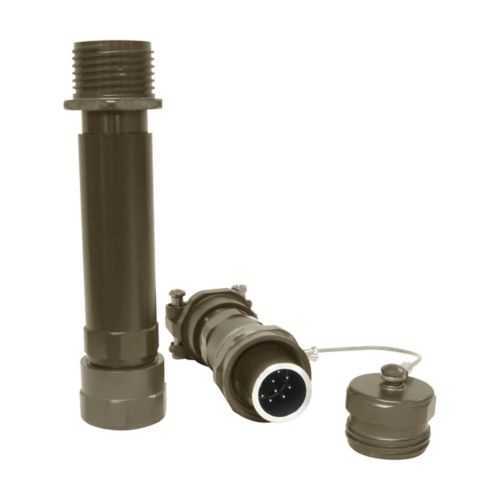

Eaton CZP-12-354-PN Insert Kit, #12 AWG Roughneck - 30A
Part Number: CZP-12-354-PN
Quick Summary
CZP-12-354-PN insert kit provides rugged, multi-pin power and signal connections for heavy industrial equipment. In the field, engineers contend with loose contacts, moisture ingress, and mis-matched terminations that cause downtime and costly rework. This solution carries UL certification for the CZ Series and is suitable for Ordinary/Non-Hazardous Locations, helping you meet essential safety standards while avoiding unnecessary compliance gaps. The kit supports a 30A rating with #12 AWG conductors and a 12-shell, 7-contact configuration, enabling reliable, scalable wiring in control cabinets and machine interfaces. For procurement and maintenance teams, this translates to faster commissioning, safer assemblies, and lower total cost of ownership through repeatable, field-ready installations.
Product Information
Extended Description
CZP-12-354-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 12 shell, 7 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-354-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428935
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A rating with 12 shell and #12 AWG contacts in a crimp termination. Business Impact: Enables high-current power distribution without bulky adapters, reducing cabinet depth and parts clutter. Application: Suitable for motor starters and power control circuits in harsh industrial environments. Feature: UL CZ Series certification and Ordinary/Non-Hazardous Location classification. Business Impact: Ensures regulatory alignment, safer procurement, and streamlined audits. Application: Data, signal, control, and power connections in non-hazardous factories. Feature: Roughneck CZ construction with robust mechanical integrity. Business Impact: Improves vibration resistance and field reliability, lowering maintenance downtime. Application: Heavy industrial machinery, conveyors, and packaging lines. Feature: Compact dimensions and light weight (2.06 in L, 1.41 in W/H, 0.25 lb). Business Impact: Easier panel routing and installation in space-constrained cabinets, reducing installation time. Application: Enclosures with limited depth and width. Feature: Crimp termination compatible with #12 AWG conductors. Business Impact: Faster, repeatable terminations with standard tooling, cutting on-site labor costs. Application: Field installation and maintenance crews. Feature: 7-contact, 12-shell configuration supporting multi-pin versatility. Business Impact: Scales to multiple signal/power needs without swapping connectors. Application: Industrial automation networks, control panels, and power distribution nodes. Objection handling: Designed to integrate with existing Roughneck CZ components, minimizing part proliferation and incompatibility risks, while providing a proven path for upgrades with standard CZ family shells.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-354-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-354-PN?
Enquire Now
FAQs
CZP-12-354-PN is designed for Roughneck CZ family assemblies with 12-shell, #12 AWG crimp pins and male contacts. Use a compatible CZ crimp tool and proper insulation to ensure a secure, vibration-resistant termination. Verify the enclosure space, ensure non-hazardous area suitability, and follow UL CZ Series references for compliant installation in data, signal, control, and power circuits.
The insert kit provides a 30A rating with #12 AWG conductors and a 12-shell, 7-contact configuration, delivering reliable high-current connections in harsh conditions. It is certified for Ordinary/Non-Hazardous Locations per UL CZ Series, supporting dependable operation in non-explosive environments and helping minimize maintenance-induced downtime.
Yes. CZP-12-354-PN is part of the Roughneck CZ multi-pin family and is designed to mate with standard CZ shell sizes and Roughneck mating interfaces. For best results, match the shell size and contact type (pin, #12 AWG crimp) with compatible CZ insert kits and connectors to maintain electrical and mechanical integrity.
CZP-12-354-PN aligns with UL CZ Series certifications and is rated for Ordinary/Non-Hazardous Locations. These certifications validate safe operation for data, signal, control, and power applications, support regulatory compliance, and simplify supplier audits when used in non-hazardous industrial facilities.
Using the CZP-12-354-PN reduces field rework by delivering reliable, repeatable crimp terminations with #12 AWG conductors. The 30A capability and compact Roughneck form factor save panel space and installation time, while UL CZ Series certification mitigates compliance risk, yielding lower maintenance downtime and faster commissioning for automation projects.
