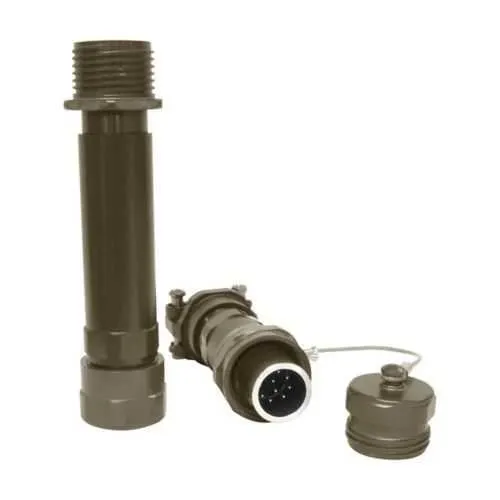

Eaton CZP-12-354-SN Roughneck insert kit - 30A
Part Number: CZP-12-354-SN
Quick Summary
CZP-12-354-SN Roughneck insert kit enables secure 30A multi-pin connections for heavy industrial equipment. Field installers often struggle with reliable mating, correct contact termination, and fast, safe field assembly. This solution aligns with critical certifications for Ordinary/Non-Hazardous Locations and UL-listed Canadian approvals, supporting safe, compliant operations. Coupled with a compact footprint and crimped 12 AWG sockets, it streamlines procurement and reduces on-site rework. Designed for compatibility with Roughneck CZ series connectors, it enables predictable performance and easier maintenance in industrial environments.
Product Information
Extended Description
CZP-12-354-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 12 shell, 7 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-354-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276428942
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating with a 12 shell size and #12 AWG contact. Business impact: supports robust power delivery for heavy equipment while maintaining a compact footprint, reducing panel crowding and wiring complexity. Application: ideal for industrial automation and control applications where space is at a premium and reliable current is critical. Feature: Female socket with crimp termination. Business impact: enables fast, secure field terminations with consistent contact performance, lowering rework and warranty risk. Application: data, signal, and power distribution in conveyors, motors, and robotics. Feature: 12-shell, 7-contact arrangement in a Roughneck CZ insert kit. Business impact: expands channel density without sacrificing reliability, improving wiring flexibility and system density. Application: multi-pin interconnects in harsh factory environments. Feature: Ordinary/Non-Hazardous Locations area classification. Business impact: ensures compliance with common industrial environments, simplifying procurement and installation planning. Application: standard manufacturing floors and non-hazardous facilities. Feature: Availability of literature and installation guidance (IF 1688, catalogs, datasheets). Business impact: accelerates design verification and reduces onboarding time for maintenance teams. Application: engineering validation and field deployment across plant floors.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-354-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-354-SN?
Enquire Now
FAQs
To install the CZP-12-354-SN, you’ll need a suitable crimping tool capable of terminating #12 AWG contacts into sockets, plus the standard Roughneck installation accessories referenced in the IF 1688 sheet. Ensure proper tool calibration and follow the catalog guidelines to achieve a solid, code-compliant termination. Having the correct tool reduces rework and improves repeatable electrical performance in harsh industrial environments.
CZP-12-354-SN is rated for 30A with a shell size 12 and contact size #12 AWG. It uses a female socket with crimp termination, designed for 12-shell assemblies. These specs support reliable power distribution for heavy equipment while maintaining compatibility with Roughneck CZ connectors.
Yes. The CZP-12-354-SN is approved for Ordinary/Non-Hazardous Locations, making it suitable for data, signal, control, and power applications in standard industrial environments. Its Roughneck CZ series design ensures durable interconnects in manufacturing floors, packaging lines, and other non-hazardous facilities.
The CZP-12-354-SN carries Ordinary/Non-Hazardous Location classification and UL Canada certifications associated with the CZ Series. These certifications support compliance for common industrial installations, simplify procurement approvals, and help meet regulatory expectations for non-hazardous plant environments.
The CZP-12-354-SN offers quicker, consistent field terminations with crimped #12 AWG sockets, reducing troubleshooting time and rework. Its compatibility with Roughneck CZ connectors enables standardized maintenance, lowers downtime, and improves overall system reliability in automated production lines and power/control distributions.
