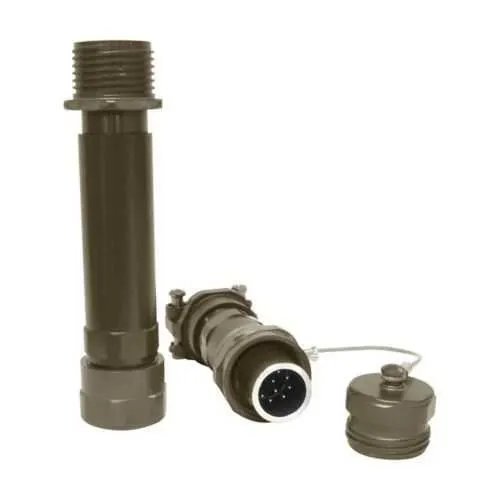

Eaton Crouse-Hinds CZP-12-354D-PN Roughneck insert kit - UL
Part Number: CZP-12-354D-PN
Quick Summary
CZP-12-354D-PN insert kit enables 30A, crimped #12 AWG Roughneck connections in control panels. Engineers often struggle with polarity mistakes and unreliable mating in harsh industrial environments. UL certification documentation accompanies the CZ Series, and the product supports ordinary/non-hazardous locations. This kit delivers reliable, fast assembly and safer, consistent polarity, while reducing rework. Using this insert kit also helps standardize wiring with 12-shell, 30A, crimp-ready connectors, cutting installation time and risk.
Product Information
Extended Description
CZP-12-354D-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 12 shell, Special polarity
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-354D-PN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276459557
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Special features
Special polarity
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating and 12-shell design supports high-current, rugged circuitry. Business Impact: Reduces wiring complexity while delivering robust power handling, improving overall panel reliability. Application: Ideal for Roughneck CZ connectors in control panels, conveyors, and machine tool power feeds. Feature: Crimp termination for pin contacts. Business Impact: Delivers vibration-resistant, durable connections that resist loosening in harsh environments. Application: Suitable for heavy equipment wiring and data/control circuits in manufacturing plants. Feature: Special polarity. Business Impact: Prevents incorrect mating that leads to shorts or miswiring, improving safety and uptime. Application: Critical during panel installations with multiple CZ connectors. Feature: Compact dimensions (2.06 in L, 1.41 in H x W). Business Impact: Facilitates easy installation in tight panels and harness routes, reducing enclosure size. Application: Fits small control cabinets and crowded junction boxes. Feature: UL certification and ordinary/non-hazardous suitability. Business Impact: Supports regulatory compliance and field acceptance across regions. Application: Standard choice for general industrial applications in non-hazardous locations. Feature: Compatibility with Roughneck CZ series. Business Impact: Streamlines spare parts and maintenance, preserving inventory and reducing downtime. Application: Replacement insert kit for CZP-12-354D-PN in new builds or refurbishments.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-354D-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-354D-PN?
Enquire Now
FAQs
The CZP-12-354D-PN is a 12-shell insert kit designed for CZ Roughneck multi-pin and single-pole connectors. It uses #12 AWG contacts and a 30A rating with crimp termination and a male pin configuration, making it compatible with the CZ Series assemblies used in harsh industrial environments.
Install by preparing the #12 AWG conductors, performing a proper crimp termination on the pins, and mating the insert into the CZ shell, ensuring correct polarity. Verify that the shell size is 12 and that the connector is securely seated to prevent vibration-related loosening in service.
Yes. The product is documented for Ordinary/Non-Hazardous Locations and carries UL certification for the CZ Series, aligning with common industrial environments that do not require explosion-proof or hazardous-area ratings.
The CZP-12-354D-PN includes UL certification documentation for the CZ Series and is suitable for ordinary/non-hazardous locations per area classification. Region-specific CE or IP certifications may vary; consult local regulatory requirements for your installation site.
Investing in this insert kit reduces field wiring errors through polarity protection, speeds up installation with a crimp-based, reliable connection, and simplifies maintenance by using standard Roughneck CZ components, leading to lower downtime and predictable panel performance.
