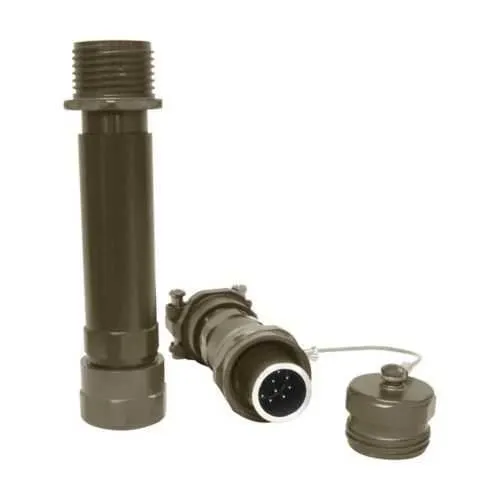

Eaton Crouse-Hinds CZP-12-354D-SN Roughneck insert kit - UL CZ Series
Part Number: CZP-12-354D-SN
Quick Summary
CZP-12-354D-SN is a rugged insert kit for Roughneck CZ multi-pin connectors used in heavy industrial power distribution. When wiring in dense panels or remote equipment, choosing the wrong polarity or termination method can lead to costly rework and safety risks. This kit carries UL certification for the CZ Series and is suitable for Ordinary/Non-Hazardous Locations, with listings that cover US and Canada. With its compact 12-shell housing, crimped #12 AWG socket contacts, and a 30A rating, it delivers reliable power while simplifying panel installations. Designed for seamless compatibility with Eaton Crouse-Hinds Roughneck systems, it supports efficient procurement, regulatory compliance, and safer electrical assemblies.
Product Information
Extended Description
CZP-12-354D-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 12 shell, Special polarity
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-354D-SN
Product Length/Depth
2.06 in
Product Height
1.41 in
Product Width
1.41 in
Product Weight
0.25 lb
UPC
662276459564
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Special features
Special polarity
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-354D-SN
Eaton Specification Sheet - CZP-12-354D-SN
Feature: 30A rating with #12 AWG crimp socket contacts in a 12-shell CZ insert. Business impact: enables robust, high-current power transmission with proper polarity, reducing miswiring and field rework. Application: motor control centers, heavy machinery panels, and line-side distribution where dependable power is essential. Feature: Female socket contact with crimp termination and special polarity. Business impact: ensures correct mating orientation and secure terminations, lowering contact resistance and failure risk. Application: critical control circuits in automation panels and data-center infrastructure where reliable connections matter. Feature: Compact footprint (2.06 in length, 1.41 in height, 1.41 in width). Business impact: saves panel space and simplifies routing in densely packed cabinets. Application: compact control enclosures and multi-panel assemblies in manufacturing lines. Feature: UL CZ Series certification and Ordinary/Non-Hazardous Location classification. Business impact: regulatory compliance streamlines approvals and reduces risk of non-compliance penalties. Application: industrial facilities, warehouses, and process lines requiring safe, code-compliant connectors. Feature: Weight of 0.25 lb and easy handling. Business impact: lowers inventory and installer fatigue, improving field installation speed. Application: field-service teams deploying multiple inserts across lines or retrofit projects. Feature: Compatible with Roughneck CZ multi-pin connectors and standard 12-shell system. Business impact: simplifies sourcing and swap-outs, reducing downtime during maintenance. Application: system upgrades, panel refurbishments, and new installations in aggressive industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-354D-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-354D-SN?
Enquire Now
FAQs
CZP-12-354D-SN is designed for Eaton Crouse-Hinds Roughneck CZ multi-pin connectors. It uses a 12-shell housing with a female socket contact rated at 30A for #12 AWG wires and features a crimp termination with special polarity. It integrates with CZ series inserts and is ideal for high-density, plug-in power applications.
No. The CZP-12-354D-SN is classified for Ordinary/Non-Hazardous Locations. It should not be used in Class I, II hazardous environments. For hazardous locations, select CZ insert kits specifically rated for those conditions and consult the relevant certifications and install requirements.
Use a proper crimp tool suitable for #12 AWG conductors and verify correct polarity before mating. Ensure the shell is fully seated, crimps are secure, and the mating surfaces align with the CZ series housing. Proper torque, inspection, and documentation help maintain UL compliance and reliable ongoing performance in automation panels.
Key resources include the Eaton CZP specification sheet, installation sheets like IF 1688, and UL certification pages for the CZ Series. The Roughneck catalog page provides context for system compatibility, while the CZP-12-354D-SN spec sheet confirms electrical ratings and material compatibility for qualified procurement decisions.
Durable CZ insert kits reduce downtime by enabling faster field terminations and fewer re-wires. Their 30A rating supports reliable power distribution, lowering failure-related maintenance costs. Compatibility with Roughneck systems simplifies spares inventory and training, delivering measurable efficiency gains over the equipment lifecycle.
