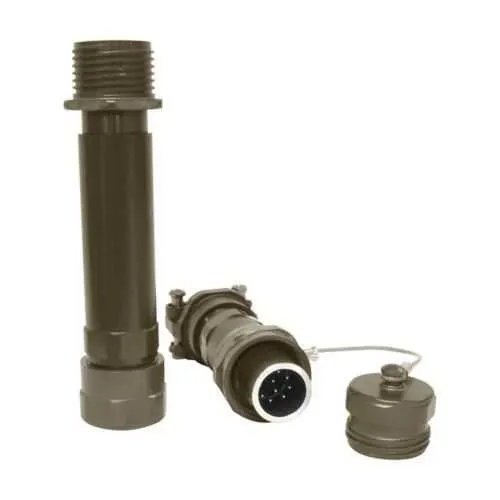

Eaton Crouse-Hinds CZP-12-355-SN Insert Kit - 12 Shell
Part Number: CZP-12-355-SN
Quick Summary
Roughneck CZ insert kit is a rugged connector solution for heavy industrial wiring and control panels. Engineers often face unreliable crimps and space constraints in harsh environments, leading to downtime and rework. This CZP-12-355-SN supports a 12-shell configuration with socket contacts, #16 AWG conductors, 18 A, and 240 V, designed for ordinary/non-hazardous locations. For procurement and maintenance teams, its compatibility with the Roughneck family and UL Canadian certification simplifies sourcing, reduces project risk, and accelerates installation. In short, it combines robust performance with practical, field-friendly deployment in typical manufacturing settings while aligning with common industry standards.
Product Information
Extended Description
CZP-12-355-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 12 shell, 10 contacts, 240 Vac
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-12-355-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276428966
Area classification
Ordinary/Non-Hazardous Locations
Shell size
12
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-12-355-SN
Eaton Specification Sheet - CZP-12-355-SN
Feature → Business Impact → Application: The CZP-12-355-SN uses a 12-shell shell size to deliver high-density, compact multi-pin connectivity, enabling panel builders to maximize space while maintaining reliable power and signal distribution. This translates to measurable efficiency gains during wiring and assembly, reducing cabinet footprint and assembly time in data, signal, and control networks. Application: ideal for tight control panels and machine enclosures where space is at a premium, delivering consistent performance across multiple channels. Feature → Business Impact → Application: 18 A amperage rating supports typical industrial load demands without overdesigning, lowering overall wiring costs and eliminating unnecessary overspec. Application: suitable for motors, actuators, and control circuits in harsh environments with dependable current handling. Feature → Business Impact → Application: Crimp termination and socket contact design provide vibration-resistant, leak-free connections that minimize maintenance and rework. Application: long-term reliability in machinery subject to vibration and temperature cycling. Feature → Business Impact → Application: 240 V AC capability covers standard power distribution needs in manufacturing lines, enabling straightforward integration with existing power rails. Application: power, data, and control distribution in Roughneck multi-pin systems. Feature → Business Impact → Application: Ordinary/Non-Hazardous Area Classification alignment reduces compliance complexity and accelerates procurement. Application: suitable for general industrial locations where safety and regulatory adherence are essential. Feature → Business Impact → Application: 12-shell, #16 AWG compatibility ensures a common conductor size across channels, simplifying stocking and field splicing considerations. Application: connector assemblies for data, control, and instrumentation networks within rough industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-12-355-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-12-355-SN?
Enquire Now
FAQs
The CZP-12-355-SN is designed specifically for the Roughneck CZ family, featuring a 12-shell shell size and socket contacts intended for #16 AWG conductors with crimp termination. This ensures seamless mating with existing CZ components, simplifying panel layouts and reducing substitution risks during procurement or field installations.
Key specs include an 18 A amperage rating and 240 Vac operation. Termination is crimp, and the contact type is socket, with female connectors. These specs support reliable, vibration-resistant connections suitable for heavy-industrial panels and equipment controls.
Yes. The product lists Area classification as Ordinary/Non-Hazardous Locations, making it appropriate for standard manufacturing and processing environments where typical electrical safety and regulatory requirements apply, without specialized explosion-proof or hazardous-area ratings.
The connector system is documented with Canadian UL certifications for the CZ Series, supporting regulatory compliance in non-hazardous environments. This helps streamline sourcing and approval in regions that rely on UL certification for safety and performance verification.
Reliable crimp terminations and vibration-resistant socket contacts reduce intermittent failures and rework. The 12-shell, compact design simplifies field servicing, while compatibility with the Roughneck family supports scalable, modular deployments across multiple machines, lowering total cost of ownership and downtime.
