Eaton Crouse-Hinds CZP-16-312-PN Roughneck CZ Insert Kit - Non-Hazardous
Part Number: CZP-16-312-PN
Quick Summary
CZP-16-312-PN Roughneck insert kit provides rugged, 30A multi-pin connectivity for heavy industrial control panels. Maintenance teams often battle field-termination reliability and downtime during panel upgrades, making a dependable insert kit essential. Certified for Ordinary/Non-Hazardous Locations with UL Canada support for the CZ Series, this solution aligns with the Roughneck family while delivering faster installs. By leveraging a crimped #12 AWG pin system in a 16-shell housing, it offers streamlined wiring, lower spare-part inventories, and tighter control over panel assembly lead times for electrical pros.
Product Information
Extended Description

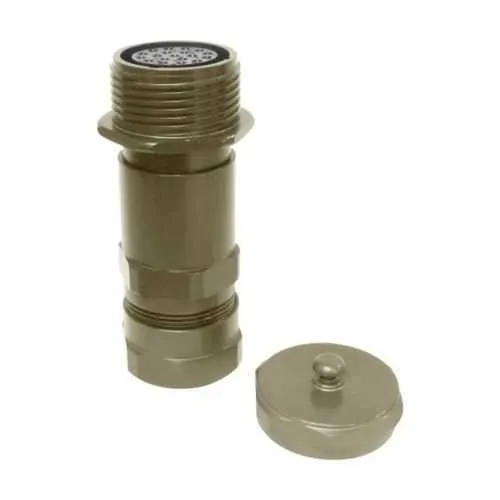

CZP-16-312-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 16 shell, 19 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-312-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276428973
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-312-PN
Eaton Specification Sheet - CZP-16-312-PN
Feature: 30A amperage rating with #12 AWG contact size. Business Impact: Supports robust power delivery with reduced voltage drop and greater margin for motor and control circuits. Application: Heavy-duty control panels and motor starters in medium- to high-current applications. Feature: 16-shell housing with 19 contacts and pin-type connections. Business Impact: Enables high-density wiring and cleaner enclosure layouts, improving serviceability and traceability. Application: Data and power distribution in rugged industrial cabinets. Feature: Male connector with crimp termination. Business Impact: Ensures secure mating, vibration resistance, and reliable field termination, cutting rework time. Application: Panel-mounted connectors in vibration-prone environments. Feature: Area classification Ordinary/Non-Hazardous Locations. Business Impact: Simplifies compliance and reduces risk in standard manufacturing floors and offices. Application: General purpose industrial facilities needing compliant connectors. Feature: Compatibility with Roughneck CZ insert family. Business Impact: Retrofit-friendly and inventory-friendly, easing spares planning and upgrades. Application: Upgrading legacy CZ connectors or expanding multi-pin networks in existing cabinets. Feature: Supplemental installation resources and datasheets. Business Impact: Shortens training time for technicians and reduces commissioning risk. Application: Field technicians, integrators, and maintenance teams integrating CZ insert kits into new or existing panels.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-312-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-312-PN?
Enquire Now
FAQs
Yes. CZP-16-312-PN is designed to integrate with the Roughneck CZ insert family, featuring a 16-shell housing, pin-type contacts, and crimp termination that align with standard CZ-series practices. When upgrading, verify shell size and contact termination to ensure a proper mate and consistent electrical performance.
Install in ordinary locations per facility guidelines and use the IF 1688 instructions for Roughneck non-hazardous multi-pin connectors. Ensure proper securement to panels, verify crimp integrity on #12 AWG conductors, and follow UL Canada certification requirements for CZ Series components to maintain compliance.
The CZP-16-312-PN supports 30A, uses #12 AWG contacts, and is a crimp-type, pin-contact connector with a 16-shell configuration. It is certified for Ordinary/Non-Hazardous Locations and UL Canada certified within the CZ Series, providing reliable performance in standard industrial environments.
Absolutely. The CZP-16-312-PN is compatible with the Roughneck CZ insert lineup, enabling retrofits and expansions in current panels. When retrofitting, check shell size, mating interface, and ensure crimp termination quality to preserve vibration resistance and current carrying capacity.
The kit reduces field labor during terminations, shortens commissioning with proven Crimped #12 AWG connections, and lowers spare-part complexity thanks to a single, compatible CZ insert family. These factors translate to reduced downtime, faster repairs, and improved inventory management for ongoing maintenance.
