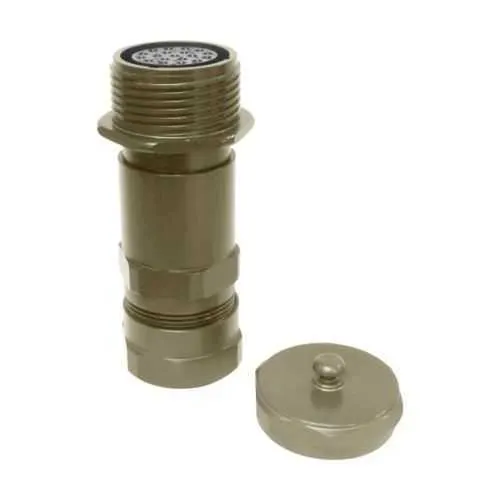

Eaton Crouse-Hinds CZP-16-312-SN Roughneck CZ Insert Kit - 30A
Part Number: CZP-16-312-SN
Quick Summary
CZP-16-312-SN Roughneck CZ insert kit delivers a rugged, 30A connector for heavy industrial power and control panels, designed to endure demanding environments. Engineers often battle slow field assembly, missing components, and moisture ingress, which can trigger costly downtime and rework in critical line applications. This kit carries UL-listed for Canada (CZ Series) and is appropriate for Ordinary/Non-Hazardous Locations, providing regulatory confidence across electrical installations. It uses a 16-shell housing with #12 AWG crimp sockets and female contact terminations, enabling fast, consistent terminations with minimized risk of loose connections. Together with accessible installation guides and datasheets, CZP-16-312-SN supports faster deployment and measurable efficiency gains on motor controls and power distribution panels.
Product Information
Extended Description
CZP-16-312-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 16 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-312-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276428980
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating with #12 AWG contact size in a 16-shell, female socket configuration. → Business Impact: Supports high-current motor starters and heavy power applications with reliable terminations, reducing overheating risks and rework. → Application: Marine-grade motors, conveyors, and heavy control panels in non-hazardous environments. Feature: Crimp termination for socket contacts. → Business Impact: Speeds up field assembly, lowers installation labor costs, and improves consistency across connections. → Application: Field service upgrades and retrofit projects where time is critical. Feature: Roughneck CZ shell and insert kit design (Shell size 16). → Business Impact: Interoperable with other CZ components, enabling modular, scalable power and signal distribution. → Application: Data centers, manufacturing lines, and distributed control architectures. Feature: UL Canada certification and Ordinary/Non-Hazardous Location suitability. → Business Impact: Reduces regulatory risk and accelerates approval workflows for regulated facilities. → Application: Canadian facilities and multinational sites with strict compliance requirements. Feature: Documentation availability (brochures, datasheets, installation instructions). → Business Impact: Improves training, supports QA and audit trails, and lowers commissioning errors. → Application: Installer training programs, maintenance planning, and supplier alignment for rugged industrial connectors.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-312-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-312-SN?
Enquire Now
FAQs
To install, verify the shell size is 16 and the contact size is #12 AWG. Prepare conductors, apply a suitable crimp to the #12 AWG contacts, and insert the crimped sockets into the 16-shell CZ insert kit. Mate with the corresponding Roughneck plug, then perform a continuity test to ensure a secure, repeatable connection. Use the IF 1688 instructions for step-by-step guidance and ensure compliance with non-hazardous location requirements.
The CZP-16-312-SN is rated for 30A with #12 AWG contacts, featuring a socket contact type and crimp termination in a female configuration. It uses a 16-shell housing and is designed for ordinary, non-hazardous locations. These specs support reliable power distribution and control signaling in demanding industrial environments.
No. The product is classified for Ordinary/Non-Hazardous Locations. For installations in hazardous areas, consult alternative CZ series components and verify the appropriate certification and location rating before deployment. Always align with site safety standards and regulatory requirements.
A comprehensive set of documents is available, including Roughneck brochures, catalog pages, Canadian UL certification details, installation sheets (IF 1688), and multipin connector specifications. These resources help with design decisions, procurement, and installer training, ensuring correct use and regulatory compliance.
The kit reduces field installation time through a crimp-based, solder-free termination, improves connection reliability, and lowers maintenance requirements by providing a standardized, compliant 30A 16-shell connector solution. This translates to lower downtime, faster deployments, and consistent performance across motor control and power distribution applications.
