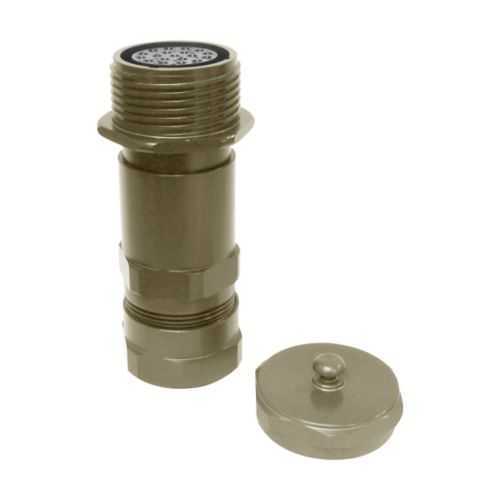

CZP-16-321-PN Eaton Roughneck Insert Kit - 18 A
Part Number: CZP-16-321-PN
Quick Summary
CZP-16-321-PN is an Eaton Crouse-Hinds Roughneck insert kit for rugged, multi-pin industrial connections. Engineers often face unreliable terminations in harsh environments, and this kit delivers with crimped #16 AWG pins in a compact 16-shell assembly to ensure repeatable, vibration-resistant performance. The design supports ordinary/non-hazardous location classifications and aligns with CZ-series certifications, helping simplify audits and supplier validation. By standardizing on the Roughneck family, maintenance teams reduce inventory fragmentation and field failures, while enabling faster assemblies. In practice, this means improved uptime, predictable electrical performance, and streamlined procurement across motor control, packaging lines, and process automation projects.
Product Information
Extended Description
CZP-16-321-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 16 shell, 37 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-321-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276428997
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 18 A amperage rating and #16 AWG contacts enable robust power handling. Business Impact: Supports higher load applications with reliable crimped connections, reducing overheating risk and maintenance costs. Application: Heavy-duty control circuits and machine feeds in industrial automation. Feature: Shell size 16 with a male pin configuration ensures proper mating to Roughneck CZ housings. Business Impact: Simplifies inventory and replacement planning, lowers installation errors, and speeds panel wiring. Application: Multi-pin harnesses and control panels in manufacturing environments. Feature: Crimp termination delivers vibration-resistant, field-installable connections. Business Impact: Improves long-term reliability and reduces rework from loose terminations. Application: On-site assembly in harsh or dynamic environments where connectors endure movement. Feature: 2.42 in length, 2 in width/height with 37 contacts per kit provides high-density connectivity. Business Impact: Fewer components needed and streamlined harness management, lowering total cost of ownership. Application: Complex signal and power distribution networks in industrial facilities. Feature: Ordinary/Non-Hazardous location compliance supports safe, compliant deployments. Business Impact: Smoother regulatory audits and lower certification overhead. Application: Standard production floors and non-hazardous processing plants. Feature: Comprehensive documentation and compatibility with Roughneck multi-pin connectors. Business Impact: Reduces learning curves, accelerates training, and improves maintenance planning. Application: New installations and upgrades in industrial automation and heavy machinery settings.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-321-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-321-PN?
Enquire Now
FAQs
CZP-16-321-PN is a Roughneck CZ insert kit designed for Eaton Crouse-Hinds CZ multi-pin connectors with shell size 16. It uses male pins and crimp termination for #16 AWG conductors, and should mate with the corresponding CZ-series receptacles. Always confirm shell size and pin count match for a reliable connection.
The insert kit provides an 18 A amperage rating with #16 AWG contact size. It uses crimp termination on a male pin configuration and supports up to 37 contacts in the assembly, enabling dense, high-current harnessing within Roughneck multi-pin connectors.
No. The product is classified for Ordinary/Non-Hazardous Locations, which means it’s designed for standard industrial environments. For hazardous locations, consult CZ Series variants with appropriate certifications and approvals and verify with local compliance requirements.
The CZ Series, including this insert kit, aligns with UL Canada certifications for data, signal and power applications. See the product literature and certification pages linked in the downloads for specific listing details and to ensure regulatory compliance in your region.
Follow the IF 1688 Roughneck installation sheet and the multipin connectors spec guide when terminating #16 AWG crimp pins. Use the recommended crimp tooling, plan the harness layout in advance, and keep a small inventory of CZ insert kits to minimize on-site delays and rework during panel wiring.
