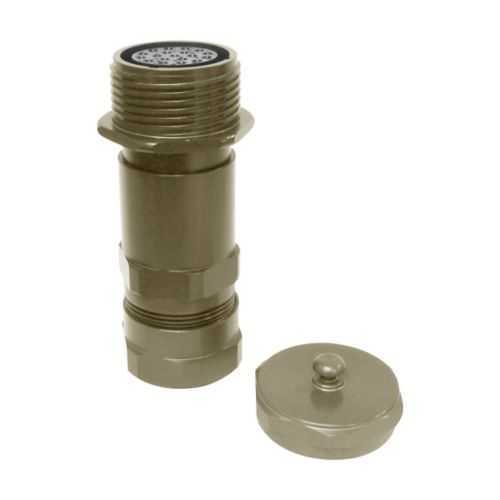

Eaton CZP-16-325-PN Roughneck CZ insert kit - 18 A
Part Number: CZP-16-325-PN
Quick Summary
CZP-16-325-PN Roughneck CZ insert kit is a rugged, 18 A, 16-shell, 16-contact insert designed for crimped #16 AWG cables in heavy industrial power, control, and data applications. It minimizes downtime and wiring errors by providing a clearly defined, plug-and-play interface that field technicians can trust. This kit is designed for ordinary/non-hazardous locations and carries UL Canada CZ Series certifications, backed by Eaton’s specification resources. With a compact footprint—2.42 in long, 2 in wide and 2 in high—it fits tight panels and reduces enclosure size requirements. The 18 A amperage rating and crimp pin termination on #16 AWG conductors deliver dependable power transfer in demanding environments. Installation is streamlined by standard practices and compatibility with other Roughneck connectors, helping teams reduce spare parts and shorten install times while improving system reliability.
Product Information
Extended Description
CZP-16-325-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 16 shell, 16 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-325-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276429017
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-325-PN
Eaton Specification Sheet - CZP-16-325-PN
Feature: 18 A amperage rating paired with a 16-shell insert supports standard industrial loads without overheating. Business Impact: higher reliability reduces unplanned downtime and maintenance costs. Application: motors, drives, and control circuits in manufacturing and heavy equipment environments. Feature: #16 AWG crimp termination with male pins delivers a robust, vibration-resistant connection. Business Impact: improved retention under vibration minimizes re-termination and service calls. Application: power and signal paths in conveyors, robotics, and process controls. Feature: Compact footprint at 2.42 in length, 2 in width, and 2 in height with a light 0.45 lb weight. Business Impact: easier panel integration, smaller enclosures, and faster field servicing. Application: space-constrained control cabinets and modular installations. Feature: Defined shell size 16 and contact size #16 AWG with documented area classification and UL Canada CZ Series certifications. Business Impact: simplifies procurement, improves traceability, and supports regulatory compliance. Application: multi-pin connector assemblies across non-hazardous locations. Feature: Plug-and-play Roughneck interface across the CZ family. Business Impact: reduces wiring errors and speeds installation, delivering faster project rollouts. Application: upgrades and retrofits in existing systems with minimal engineering changes. Feature: Comprehensive documentation and compatibility with other Roughneck connectors. Business Impact: standardized tooling and spares management lower total cost of ownership. Application: large-scale installations in manufacturing and process industries. These features collectively enable efficient deployment, predictable performance, and measurable uptime improvements while aligning with industry expectations for rugged, industrial-grade connector systems.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-325-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-325-PN?
Enquire Now
FAQs
Begin by confirming shell size and contact type match your CZ connector family. Use crimp terminals for #16 AWG conductors and mate with the corresponding male pins. Follow Eaton installation guides (IF 1688) for crimp tooling and torque guidelines, then test continuity and insulation resistance after assembly to ensure a reliable, vibration-resistant connection.
The insert kit is rated for 18 A and uses #16 AWG contact terminology with crimp termination, delivering stable current handling and robust contact retention. This combination supports typical industrial loads and minimizes overheating risks in motors, drives, and control circuits.
Yes. It is applicable to ordinary/non-hazardous locations and leverages UL Canada CZ Series certifications for data, signal, control, and power applications. This regulatory alignment helps with audits and ensures safer operation within non-hazardous environments.
Contacts are crimped into the CZ insert and are not typically replaced individually in the field. For reliability and traceability, Eaton recommends using replacement parts through approved kits or ordering a new CZ insert kit when wear is detected, ensuring consistent performance and warranty coverage.
Benefits include reduced downtime from plug-and-play installation, fewer mis-wirings due to standardized, clearly defined interfaces, and lower spare-parts inventory since kits use standardized contact and shell configurations. Over time, these gains translate to faster deployments, easier maintenance, and lower total cost of ownership in manufacturing and processing plants.
