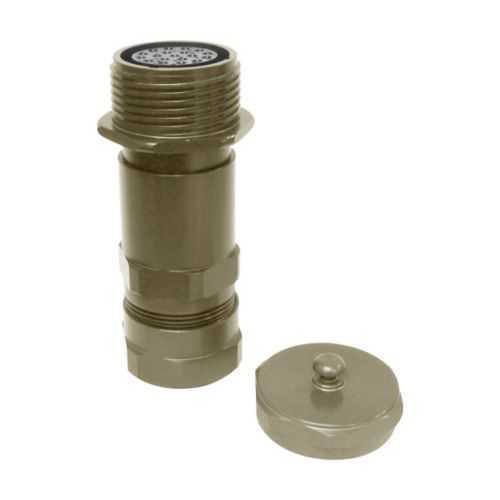

Eaton Crouse-Hinds CZP-16-325-SN Roughneck CZ insert kit - 18 A Socket
Part Number: CZP-16-325-SN
Quick Summary
CZP-16-325-SN insert kit delivers rugged, high-current connectivity for Roughneck CZ multi-pin assemblies in harsh industrial environments. Engineers often face unreliable terminations and field inconsistencies when wiring high-current loads, leading to downtime and rework. This solution adheres to Ordinary/Non-Hazardous Locations classifications, and related CZ Series Canadian certifications are documented in Eaton literature, providing regulatory confidence. By leveraging a 16 shell, #16 AWG contacts, and an 18 A rating, the kit delivers dependable performance while simplifying installation. The result is faster assembly, reduced BOM complexity, and improved uptime across manufacturing, process, and data-center wiring applications, with compatibility that supports streamlined procurement and maintenance workflows.
Product Information
Extended Description
CZP-16-325-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 16 shell, 16 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-325-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276429024
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-325-SN
Eaton Specification Sheet - CZP-16-325-SN
Feature: 18 A amperage rating provides power-handling headroom for motor start-up and control circuits. Business impact: reduces the need for oversized conductors or multiple connectors, lowering material costs and improving system reliability. Application: heavy-duty control panels and machinery wiring in non-hazardous facilities. Feature: Shell size 16 and #16 AWG contact size ensure a precise mechanical fit with existing Roughneck CZ connectors. Business impact: minimizes misalignment risk and streamlines inventory with standardized components. Application: field replacements and spares programs in manufacturing lines. Feature: Socket contact with crimp termination delivers durable, vibration-resistant connections. Business impact: enhances retention under shock and vibration, reducing field failures and maintenance time. Application: portable equipment, conveyors, and process instrumentation. Feature: Compact form factor (2.42 in L, 2 in W, 2 in H) supports dense panel layouts. Business impact: enables higher connector density and easier routing in cabinets. Application: control cabinets and junction boxes with limited space. Feature: Area classification Ordinary/Non-Hazardous Locations provides clear deployment guidance. Business impact: simplifies compliance planning and procurement for standard industrial sites. Application: general industry environments. Feature: Compatibility with Roughneck CZ inserts and multi-pin connectors enables quick integration. Business impact: faster installation, lower training requirements, and reduced total-cost-of-ownership. Application: new installations or retrofit projects in factories and processing facilities.
