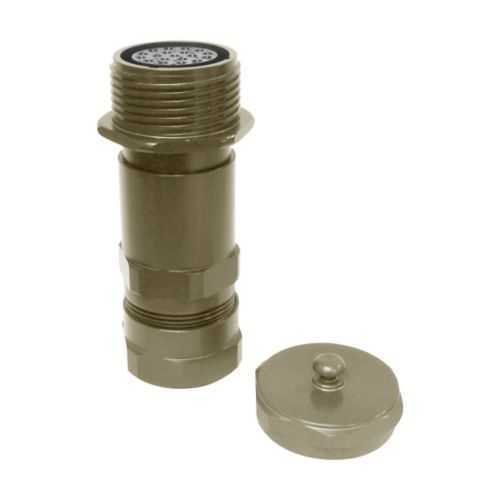

Eaton CZP-16-328-SN Insert Kit - 55A, Socket, 16 Shell
Part Number: CZP-16-328-SN
Quick Summary
The CZP-16-328-SN insert kit delivers reliable 55 A socket connections for Roughneck multi-pin connectors used in demanding industrial power distribution across process automation and equipment rooms. Field technicians often face crimping variations, mis-mating risks, and slow on-site assembly when upgrading control panels in tight spaces. UL Canada certification for the CZ Series and the Ordinary/Non-Hazardous Location classification help ensure regulatory alignment and safer operation. By leveraging standardized CZ components with a compact form factor, this insert kit reduces procurement complexity, accelerates installation, and lowers lifecycle costs while supporting dependable uptime in harsh industrial environments.
Product Information
Extended Description
CZP-16-328-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 55A, Female, #8 AWG, Crimp, Socket, 16 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-328-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662275356208
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#8 AWG
Amperage Rating
55 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-328-SN
Eaton Specification Sheet - CZP-16-328-SN
Feature: 55 A amperage rating with #8 AWG contact size. Business impact: Enables reliable high-current connections in a compact 16-shell housing, reducing the number of required connectors and minimizing heat buildup. Application: Heavy-duty power distribution in Roughneck systems for data centers, manufacturing floors, and process lines. Feature: Shell size 16 and socket-style, female crimp termination. Business impact: Standardized mating interfaces that simplify field upgrades and stocking. Application: Quick field replacements in control panels and machine cabinets. Feature: Crimp termination with crimp-ready contacts. Business impact: Faster, repeatable installations with reduced risk of improper terminations. Application: On-site wiring and panel assembly with consistent performance. Feature: Compact dimensions—2.42 in length, 2 in height and width, 0.45 lb weight. Business impact: Space-saving footprint improves panel density and ease of handling. Application: Tight-panel installations and serviceability in industrial environments. Feature: Certifications and compliance—UL Canada CZ Series, Ordinary/Non-Hazardous Locations. Business impact: Regulatory alignment and safer operation in non-hazardous facilities. Application: Industries with strict wiring standards and safety requirements. Feature: Compatibility with Roughneck ecosystem and CZ shell sizes. Business impact: Streamlined integration with existing CZ connectors and mating interfaces. Application: Upgrading or expanding data, signal, control, and power distributions across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-328-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-328-SN?
Enquire Now
FAQs
The CZP-16-328-SN is a Roughneck CZ insert kit designed for 16-shell connectors and uses #8 AWG crimp contacts. It provides a female socket termination for secure, high-current power, data, and control wiring. This combination supports standardized field assemblies and consistent mating with existing CZ series components.
The insert kit is rated for 55 A and uses a shell size of 16 with a socket contact arrangement. The product supports crimp-term contact termination for reliable connections with #8 AWG conductors, suitable for heavy-duty industrial wiring in non-hazardous environments.
CZP-16-328-SN carries UL Canada certification for the CZ Series, with components certified for data, signal, control, and power applications. It is also classified for Ordinary/Non-Hazardous Locations, aiding regulatory compliance in standard industrial facilities.
The insert kit measures 2.42 inches in length, 2 inches in height, and 2 inches in width, with a weight of 0.45 pounds. The compact footprint supports dense panel layouts and easy routing in control cabinets and machinery enclosures.
Resources include Eaton’s Roughneck literature and spec sheets, installation sheets such as IF 1688 for Roughneck non-hazardous multi-pin connectors, and the CZP-16-328-SN datasheets. Access brochures, catalog pages, and certification PDFs to ensure correct installation and regulatory compliance.
