Eaton CZP-16-335-PN Roughneck CZ insert kit - Non-Hazardous
Part Number: CZP-16-335-PN
Quick Summary
CZP-16-335-PN is a rugged Roughneck CZ insert kit designed for reliable power and signal connections in harsh industrial environments. When field wiring must be fast, secure, and resistant to mis-termination, technicians need a crimp-based solution with consistent contact performance and minimal rework. This insert kit carries the Ordinary/Non-Hazardous Locations area classification and UL Canada certification context, ensuring compliance across global installations. In practice, engineers value its 18 A rating, #16 AWG contact size, and compact 2.42 in length for tight panel spaces, while the 16 shell and 27 contacts offer scalable wiring options for complex multi-pin assemblies. For procurement and installation, this solution aligns with Wiring & Connectivity needs and supports rapid maintenance or replacement cycles.
Product Information
Extended Description
CZP-16-335-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 16 shell, 27 contacts
Product Name

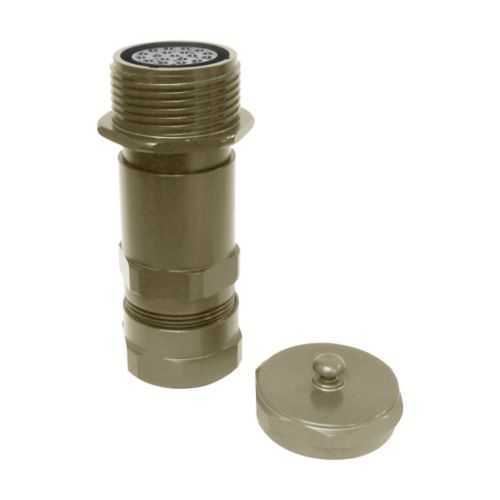

Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-335-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662275337252
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-335-PN
Eaton Specification Sheet - CZP-16-335-PN
Feature → Business Impact → Application: The CZP-16-335-PN uses a 16-shell and #16 AWG contact set, enabling secure, high-integrity crimp terminations for up to 18 A loads. This translates to reliable power delivery and reduced field failure rates in heavy industrial wiring, particularly for rough environment applications where conduit vibration can loosen connections. Application-wise, it fits Roughneck CZ multi-pin connectors, simplifying installation in control panels and machine enclosures while maintaining consistent contact density with 27 contacts available. Feature → Business Impact → Application: The 2.42 in length and 2 in height/width dimensions support compact, space-constrained installations, enabling on-site routing in limited panel bays and easier retrofit of legacy systems. Feature → Business Impact → Application: The crimp termination method minimizes field soldering, enhancing safety and speed while reducing maintenance costs over the equipment lifecycle. Feature → Business Impact → Application: Certified for Ordinary/Non-Hazardous Locations and UL Canada contexts, the CZP-16-335-PN reduces compliance risk and supports cross-border deployments in industrial facilities following common safety standards. Feature → Business Impact → Application: Compatibility with CZ Series Roughneck connectors offers scalable spares and rapid replacements, lowering downtime during upgrades or repairs and improving overall project ROI. Feature → Business Impact → Application: The combination of 18 A rating and rugged shell design addresses high-demand applications in material handling, water treatment, and packaging lines, delivering dependable performance under vibration and environmental exposure. Feature → Business Impact → Application: The insert kit’s 27-contact configuration supports complex signal, control, and power distribution tasks, enabling designers to consolidate harnesses and reduce panel wiring complexity, with measurable gains in installation efficiency and traceability.
