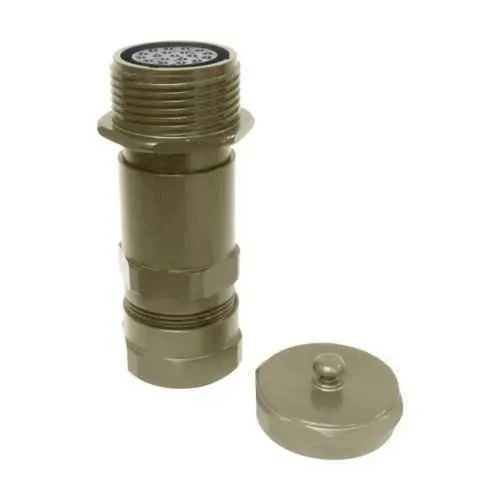

Eaton Crouse-Hinds CZP-16-355-PN Roughneck insert kit - 18A
Part Number: CZP-16-355-PN
Quick Summary
CZP-16-355-PN Roughneck insert kit is a rugged, high-density connector solution for harsh industrial environments. Engineers face downtime and mis-matched assemblies when wiring pinouts aren’t clearly defined; this kit provides a precise 16-shell, 16 AWG, crimp-pin solution that fits seamlessly into existing Roughneck systems. The product carries UL certifications for the CZ Series and is rated for Ordinary/Non-Hazardous Locations, helping meet safety and compliance requirements in data, signal, and power applications. By standardizing on this insert kit, procurement gains better component traceability and installation efficiency, while maintenance teams benefit from simplified field terminations and consistent crimp performance. This supports overall project ROI and improves ongoing equipment uptime.
Product Information
Extended Description
CZP-16-355-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 16 shell, 19 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-355-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276429031
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-355-PN
Eaton Specification Sheet - CZP-16-355-PN
Feature: Shell size 16, amperage rating 18 A, contact size #16 AWG. Business impact: Ensures compatibility with Roughneck CZ connectors and robust power handling, reducing rework and inventory complexity. Application: Ideal for heavy industrial control panels and equipment enclosures where space is at a premium. Feature: Crimp termination with male pin configuration. Business impact: Delivers secure mating and vibration resistance, lowering connector looseness in harsh environments. Application: Field installation on automation cabinets and remote I/O assemblies. Feature: Compact footprint with 2.42 in length and 2 in height/width, weight 0.45 lb. Business impact: Minimizes panel depth and allows cleaner cable routing, speeding up commissioning. Application: Limited-space control rooms and machine hubs. Feature: UL certification and Ordinary/Non-Hazardous Location classification. Business impact: Provides compliance alignment for safety and regulatory requirements, reducing audit risk. Application: Suitable for data, signal, and power applications in standard industrial settings. Feature: Access to full documentation and resources (brochures, datasheets, installation instructions). Business impact: Streamlines procurement and maintenance planning, enabling faster troubleshooting and consistency across projects. Application: Helpful for spec-driven procurement and technician training.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-355-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-355-PN?
Enquire Now
FAQs
The CZP-16-355-PN uses a 16-shell size with a #16 AWG contact and crimp termination in a male pin configuration, designed to drop into standard Roughneck CZ mating interfaces. This ensures seamless compatibility with existing CZ-series housings, reduces the risk of mismatched components, and supports consistent mating performance across multi-pin assemblies in industrial control panels.
Key specs include an 18 A amperage rating, #16 AWG contact size, crimp termination, and a male pin contact type within a 16-shell shell. These parameters support reliable power distribution and signal integrity in non-hazardous environments, while enabling compact, high-density wiring within rugged Roughneck connectors.
Yes, the CZP-16-355-PN is classified for Ordinary/Non-Hazardous Locations, aligning with typical factory floor, data-center, and process automation environments. This classification helps ensure compliance with safety standards while delivering rugged performance for non-explosive, standard industrial settings.
CZP-16-355-PN aligns with UL certification for Roughneck Heavy Industrial Multi-pin Connectors (CZ Series), supporting compliance for data, signal, control, and power applications. The UL listings are complemented by documentation such as catalog pages and datasheets, which assist in regulatory audits and cross-site standardization.
Using the CZP-16-355-PN reduces installation time through a standardized pin-to-shell fit, simplifying crimp termination and mating at each connector, which lowers field errors. The consistent 16 AWG, 18 A configuration improves maintenance predictability, supports simplified spare parts stocking, and enhances overall equipment uptime and ROI in manufacturing environments.
