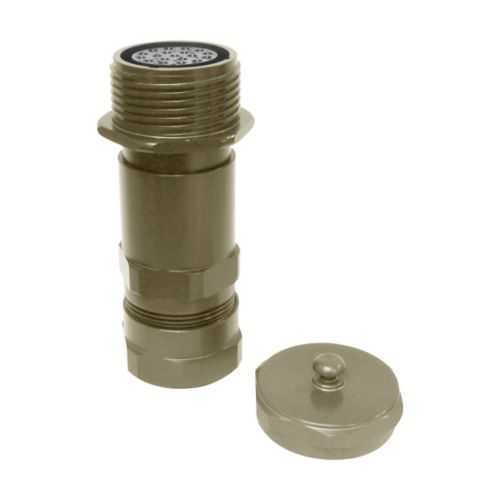

CZP-16-355-SN Eaton Roughneck Insert Kit - 18A
Part Number: CZP-16-355-SN
Quick Summary
CZP-16-355-SN is an Eaton Crouse-Hinds Roughneck insert kit designed for rugged, high-current connections in heavy industrial wiring applications. Designers and maintenance teams face wear, misalignment, and slow field assembly that jeopardize contact integrity. This CZ insert kit carries UL certification for the Roughneck CZ series applicable to US and Canada, and is suitable for data, signal, control, and power use in ordinary/non-hazardous locations. With an 18 A rating, a 16-shell and crimped #16 AWG socket, it delivers reliable, code-compliant performance right on the shop floor. The combination of robust connector design with straightforward installation reduces downtime, lowers maintenance costs, and supports scalable, service-friendly electrical systems in industrial facilities.
Product Information
Extended Description
CZP-16-355-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 16 shell, 19 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-355-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662276429048
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 18 A rating with #16 AWG socket and crimp termination. Business Impact: Enables high-current, secure connections in a compact package, reducing resistance and heat buildup. Application: Perfect for motor control and power/data runs in Roughneck CZ assemblies. Feature: Shell size 16 with 2.42 in depth and 2 in width/height, 0.45 lb. Business Impact: Provides a space-efficient footprint for crowded control panels and enclosures, simplifying panel routing and installation. Application: Field deployments where space is at a premium in harsh industrial environments. Feature: Female socket contact. Business Impact: Improves mating reliability and reduces wear from repeated connections. Application: Harsh-wactory industrial harnesses requiring durable, gender-assigned contacts. Feature: UL certifications for CZ Series and availability of brochures/datasheets. Business Impact: Supports regulatory compliance and procurement confidence with tested performance data. Application: Specifications-driven projects and audits in data, signal, control, and power workflows. Feature: Area classification Ordinary/Non-Hazardous Locations. Business Impact: Safe to deploy in standard industrial facilities without special hazard considerations. Application: Wiring setups in non-hazardous plant zones, minimizing compliance overhead. Feature: Comprehensive documentation (IF 1688 instruction sheet, spec guides, catalogs, and certifications). Business Impact: Streamlines installation and reduces field errors with authoritative guidance. Application: Technician onboarding and contractor deployments needing clear, accessible references.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-355-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-355-SN?
Enquire Now
FAQs
When installing CZP-16-355-SN, ensure the shell size is 16 and the contact termination uses crimp with #16 AWG conductors. Use the appropriate crimp tool and follow the IF 1688 instruction sheet for step-by-step mating, alignment, and secure-gate practices. The kit is designed for rugged industrial environments, so verify enclosure fit and connector orientation before final tightening.
CZP-16-355-SN is specified for Ordinary/Non-Hazardous Locations, aligning with typical plant electrical installations. It also carries UL certifications for the CZ Series, including US and Canada, providing verified safety and performance data. This makes it a dependable choice for data, signal, control, and power circuits without additional hazard-specific protections.
Key specs include an 18 A amperage rating, socket contact type using #16 AWG conductors, a female connector configuration, and crimp termination. The product length is 2.42 inches with a 2 x 2 inch footprint and a weight of 0.45 lb, supporting compact, high-current multi-pin assemblies in industrial environments.
Official documents include the Roughneck brochure, catalog page for heavy industrial multi-pin connectors, UL certification references for the CZ Series, IF 1688 installation instructions, and the Multi-pin Connectors specifications guide. These resources support compliance checks, procurement validation, and on-site installation planning.
Using CZ insert kits delivers reliable, high-current connections with easy field assembly, reducing downtime and maintenance costs. Compliance with UL CZ Series standards supports audits and procurement confidence, while the compact 16-shell design saves space in control cabinets, enabling scalable, service-friendly electrical systems in industrial facilities.
