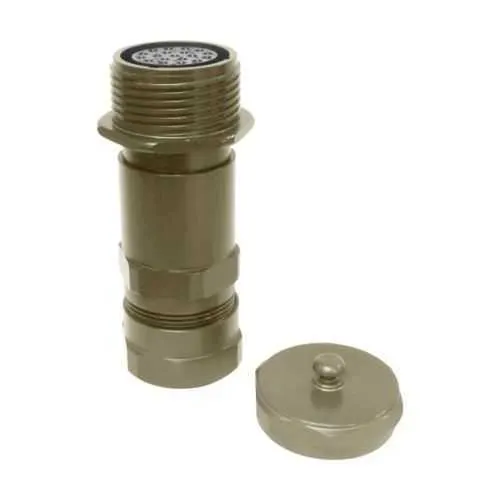

Eaton CZP-16-376-PN Roughneck CZ insert kit - UL
Part Number: CZP-16-376-PN
Quick Summary
CZP-16-376-PN Roughneck CZ insert kit delivers rugged, 30A power connections for data, control, and power applications in harsh industrial environments. Engineers often struggle with reliable, field-installable connectors that withstand vibration, moisture, and non-hazardous factory floors. UL listing ensures safety for Roughneck CZ series in Ordinary/Non-Hazardous locations, while compatibility with standard 16-shell housings streamlines upgrades. This kit supports #12 AWG conductors and crimp terminations, reducing wiring errors and downtime. From a procurement perspective, the insert kit lowers total cost of ownership by simplifying stocking, training, and installation. In short, it combines robust performance, regulatory confidence, and ease of integration into existing Wiring & Connectivity architectures.
Product Information
Extended Description
CZP-16-376-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 16 shell, 10 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-376-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662275358417
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-376-PN
Eaton Specification Sheet - CZP-16-376-PN
Feature: 30A amperage rating with a male pin contact. Business impact: provides a robust high-current path, reducing the need for parallel conductors and simplifying protection schemes. Application: motor drives and power feeds in conveyors and processing lines. Feature: Shell size 16 with #12 AWG contact size. Business impact: compatibility with standard industrial cables and crimp tooling, enabling faster field assembly. Application: control panels and field junctions in harsh environments. Feature: Crimp termination. Business impact: secure, repeatable connections that resist loosening under vibration. Application: on-site wiring in rugged facilities and maintenance shops. Feature: UL certification and Ordinary/Non-Hazardous area classification. Business impact: regulatory confidence and safer deployments across typical manufacturing floors. Application: data, signal, control, and power connectors in non-hazardous zones. Feature: 16-shell arrangement with 10 contacts and PIN-type contacts. Business impact: streamlined channeling of multiple signals and power paths, reducing harness complexity. Application: multi-pin assemblies in Roughneck connectors for complex equipment.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-376-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-376-PN?
Enquire Now
FAQs
Use the 16-shell housing with #12 AWG crimp pins and the included crimp termination process. Refer to the IF 1688 Roughneck instruction sheet for step-by-step field assembly and correct mating sequence with compatible CZ series connectors.
Amperage rating is 30A, contact size is #12 AWG, connector gender is Male, and contact type is Pin with Crimp termination, designed for 16-shell assemblies.
Yes. The product is classified for Ordinary/Non-Hazardous Locations and UL-listed for Roughneck CZ series, making it appropriate for typical manufacturing floors and controlled environments.
UL certification is provided for the CZ series, with documented compliance for non-hazardous locations. Always verify the latest UL listing pages and literature for Canada/US applicability.
Crimp reliability and a compact 16-shell design reduce field failures and harness complexity, lowering downtime, training time, and stocking diversity while improving overall project ROI in industrial wiring and connectivity.
