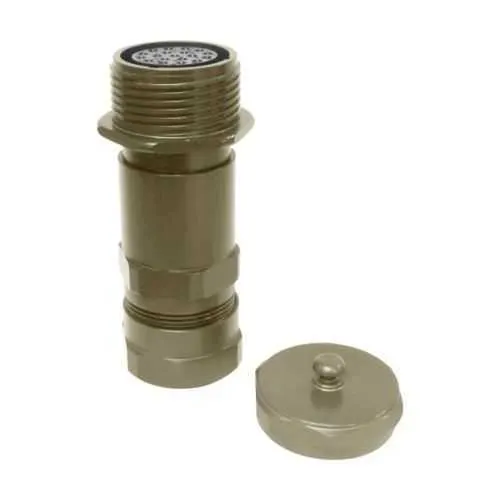

Eaton CZP-16-376-SN Roughneck CZ Insert Kit - 30A
Part Number: CZP-16-376-SN
Quick Summary
CZP-16-376-SN is a rugged Roughneck CZ insert kit designed for dependable multi-pin power and signal connections in harsh industrial environments. This kit addresses field assembly challenges by delivering a compact, crimp-ready socket solution for #12 AWG conductors, reducing installation time and rework. The product is certified for ordinary/non-hazardous locations and supported by UL Canada certifications for the CZ Series, providing regulatory confidence across North American facilities. With a 30A amperage rating and a 16-shell footprint, it enables secure connections in panel and enclosure applications. Selecting this insert kit yields predictable performance, streamlined maintenance, and standardized components that align with existing Roughneck systems and documentation for faster project execution.
Product Information
Extended Description
CZP-16-376-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 16 shell, 10 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-376-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662275358424
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-16-376-SN
Eaton Specification Sheet - CZP-16-376-SN
Feature → Business Impact → Application: The CZP-16-376-SN uses a 16 shell size and a 30A rating to handle moderate power loads with low resistance, translating to improved efficiency and reduced heat in high-duty environments. This supports reliable motor control, lighting, and power distribution on demanding manufacturing lines. Application: panel-mounted control cabinets and remote enclosures where space is constrained and robust power contacts are required. Feature → Business Impact → Application: The socket contact with crimp termination for #12 AWG wires ensures secure, vibration-resistant terminations, lowering field failure rates and maintenance costs. Application: field terminations on conveyors and material-handling systems in non-hazardous settings. Feature → Business Impact → Application: The kit’s compact dimensions (2.42 in length, 2 in width, 2 in height) enable easy installation in cramped panels, reducing enclosure footprint and installation time. Application: compact control panels and space-limited electrical cabinets. Feature → Business Impact → Application: 10-contact configuration within a 16-shell CZ insert supports more complex wiring schemes, enabling richer signal and control architectures without accessory housings. Application: multi-function control blocks in industrial automation. Feature → Business Impact → Application: Compatibility with Roughneck connectors and installation guidance (IF 1688) shortens commissioning time and reduces mis-matches during upgrades. Application: retrofit projects and new builds in heavy industries. Feature → Business Impact → Application: Area classification of Ordinary/Non-Hazardous Locations and UL Canada CZ Series certifications provide regulatory alignment, reducing risk during audits. Application: general manufacturing environments and product lines requiring Canadian compliance. Feature → Business Impact → Application: 30A, crimped socket connection minimizes maintenance intervals and improves overall equipment reliability. Application: power distribution in machine centers and packaging lines.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-376-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-376-SN?
Enquire Now
FAQs
The CZP-16-376-SN is designed for Eaton Crouse-Hinds Roughneck CZ insert systems, utilizing shell size 16, a 30A rating, and #12 AWG crimp sockets in a female configuration for multi-pin connectivity.
It is certified for Ordinary/Non-Hazardous Locations and carries UL Canada CZ Series certifications, making it suitable for general industrial facilities that require compliant, robust connections.
Install with crimp tools for #12 AWG conductors, ensuring proper socket engagement. Refer to the IF 1688 Roughneck instruction sheet for step-by-step guidance and follow standard safety practices during panel and enclosure terminations.
Key certifications include Area Classification for Ordinary/Non-Hazardous Locations and UL Canada certification for the CZ Series, providing regulatory acceptance in Canadian and general industrial environments.
The kit delivers faster field assembly, secure crimped terminations, and improved reliability, reducing downtime and rework while supporting standardized components across Roughneck systems and ongoing maintenance programs.
