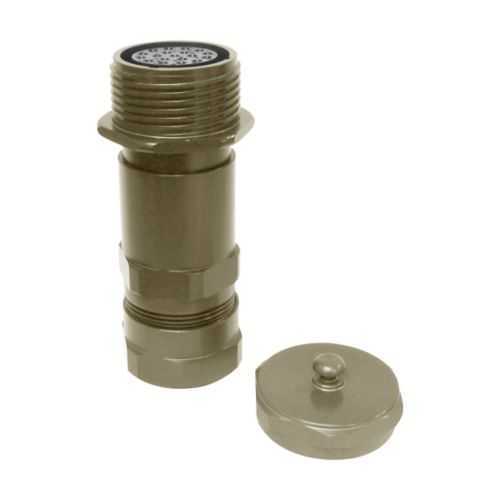

Eaton CZP-16-378-PNK Roughneck CZ insert kit UL
Part Number: CZP-16-378-PNK
Quick Summary
CZP-16-378-PNK is a Roughneck CZ insert kit designed for reliable 30A power and signal connections in harsh industrial environments. It reduces field wiring errors and lengthy setup times when assembling multi-pin connectors in tight spaces. UL-listed for US and Canada and classified for Ordinary/Non-Hazardous locations, this kit helps meet stringent safety and regulatory demands. With gold-plated pins and crimp termination for #12 AWG, it delivers dependable performance alongside business value like reduced downtime and rework. The compact design, shell size 16, and 2.42 inch depth support quick panel mounting and straightforward cable routing, making it a practical choice for today’s automation projects.
Product Information
Extended Description
CZP-16-378-PNK Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 16 shell, Gold plating
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-378-PNK
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.45 lb
UPC
662275377517
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Special features
Gold plating
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating enables safe powering of medium-load devices within control panels, delivering improved protection against overcurrent events and enabling compliant conductor sizing. Business Impact: Reduces risk of thermal issues in cabinets and lowers commissioning time by standardizing a single, robust insert kit across multiple assemblies. Application: Ideal for automation cabinets and motor control centers where consistent 30A performance is required. The result is lower downtime and more predictable maintenance cycles. Feature: Shell size 16 and contact size #12 AWG ensure compatibility with the Roughneck CZ ecosystem and standard wire gauges. Business Impact: Simplifies part selection, reduces spare-part inventory, and accelerates sourcing. Application: Works seamlessly with CZ family shells in harsh-industrial installations. Feature: Pin contact with crimp termination offers rapid, repeatable terminations. Business Impact: Improves field wiring quality, minimizes mis-crimp events, and shortens installation duration. Application: Useful for assembly lines, panel building, and on-site upgrades. Feature: Gold plating enhances corrosion resistance and long-term conductivity. Business Impact: Extends service life in challenging environments, reducing maintenance costs. Application: Beneficial in dusty, humid, or chemically active plant floors. Feature: UL certification and Ordinary/Non-Hazardous location classification provide regulatory confidence. Business Impact: Supports compliance audits and safer installations with proven certification. Application: Suitable for data, signal, control and power roles in non-hazardous settings. Feature: Compact form factor with 2.0 in width, 2.0 in height, and 2.42 in depth aids dense panel layouts. Business Impact: Improves packaging density and cable routing efficiency. Application: Great for space-constrained control panels and junction boxes. The combined effect is a dependable, scalable solution for rugged industrial connectivity.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-378-PNK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-378-PNK?
Enquire Now
FAQs
Power must be off before starting. Select shell size 16, prepare #12 AWG conductors, and crimp pins according to the CZ insertion guide. Insert crimped pins into the CZ shell with correct orientation, verify pin seating and polarity, then secure the assembly with the housing. Test continuity and insulation after assembly to confirm a reliable connection in the panel.
The insert kit is rated 30A and uses a #12 AWG contact size with gold-plated copper pins, delivering low contact resistance and robust current capability. This combination supports safe, durable power delivery in control panels and motor-control applications, reducing the risk of overheating and ensuring stable operation under typical automation loads.
Yes. The CZP-16-378-PNK is designed for multi-pin, rugged connections used across data, signal, control, and power roles in ordinary non-hazardous environments. The 16-shell, 30A, #12 AWG configuration provides a versatile solution for mixed-use assemblies in industrial automation and process control.
The kit is UL-listed for US and Canada and classified for Ordinary/Non-Hazardous locations. This supports safety compliance and regulatory alignment for panel builds and field installations in non-hazardous settings, with UL documentation available for audit and reference.
Using the CZP-16-378-PNK reduces wiring errors and installation time through standardized, reliable crimp termination and a compact form factor. The result is shorter assembly cycles, less rework, fewer field failures, and lower maintenance costs—translating to higher equipment availability and improved overall line throughput.
