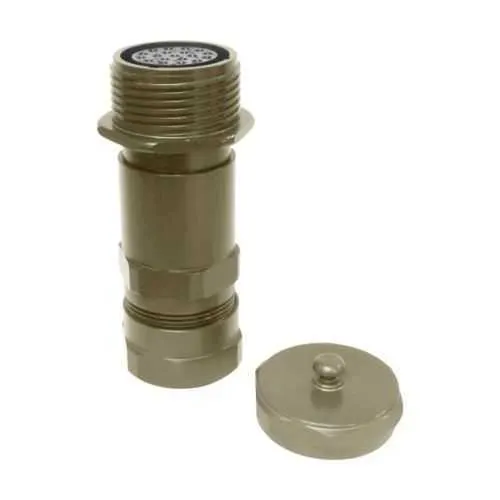

Eaton CZP-16-378-SNK Roughneck CZ Insert Kit - Gold Plating
Part Number: CZP-16-378-SNK
Quick Summary
CZP-16-378-SNK is a Roughneck CZ insert kit designed for heavy-duty, multi-pin connections in industrial controls. When projects demand reliable mating and straightforward field assembly, inconsistent crimps and corrosion risk costly downtime. This solution aligns with ordinary/non-hazardous area classifications and is supported by Canadian UL certifications for the CZ series, helping you meet local regulatory requirements. The 30A rating paired with #12 AWG crimp sockets delivers dependable power transfer, while gold plating enhances contact longevity and resistance to oxidation. Its compact 2.42 in depth and 2.5 in square footprint offer flexible installation in tight enclosures, reducing back-panel space and improving maintenance efficiency.
Product Information
Extended Description
CZP-16-378-SNK Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 16 shell, Gold plating
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-16-378-SNK
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662275377500
Area classification
Ordinary/Non-Hazardous Locations
Shell size
16
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Special features
Gold plating
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature → Business Impact → Application: Amperage rating and shell size enable standardized power delivery for motors and control circuits; this reduces custom harnessing and accelerates time-to-install. Application: use in machine builders and panel assemblies to streamline procurement and inventory. Feature → Business Impact → Application: Female socket with crimp termination provides a field-installable, secure connection that resists accidental disconnection; improves reliability in vibration-prone environments. Application: suitable for rugged automation racks and remote I/O panels where quick field assembly saves downtime. Feature → Business Impact → Application: Gold plating offers enhanced corrosion resistance and lower contact resistance over time; lowers maintenance frequency and replacement costs. Application: ideal for moisture-prone or harsh industrial settings. Feature → Business Impact → Application: Compact footprint (2.42 in L, 2.5 in W/H) and modest weight enable flexible mounting in tight enclosures; simplifies retrofit projects. Application: data/signal/power harnesses in compact control cabinets. Feature → Business Impact → Application: Ordinary/non-hazardous area classification and UL Canada certification provide regulatory alignment and risk mitigation; reduces the need for alternate, more expensive certifications. Application: projects in OEM machines and packaging lines seeking compliant, standardized CZ connectors. Feature → Business Impact → Application: Compatibility with Roughneck CZ components ensures plug-and-play integration with existing CZ insert kits, lowering total cost of ownership and improving spare-part availability. Application: expansion or redesign of multi-pin connector systems in industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-16-378-SNK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-16-378-SNK?
Enquire Now
FAQs
To install CZP-16-378-SNK, align the 16-shell insert with the corresponding Roughneck CZ housing, ensuring the Socket, crimp-terminated #12 AWG conductors are seated firmly in the crimp contacts. Use the recommended crimp tool to ensure proper compression and verify continuity with a test harness. The kit supports straightforward field assembly, reducing rework and enabling faster panel integration in heavy industrial equipment.
Key specs include a 30A amperage rating, shell size 16, contact size #12 AWG, connector gender Female, contact type Socket, and crimp termination with gold plating. These parameters define reliable power, signal, and control connections in industrial environments, while maintaining compatibility with standard Roughneck CZ components.
Yes. The insert kit specifies ordinary/non-hazardous area classification, making it appropriate for typical manufacturing floors, data centers, and non-hazardous process environments. For regulators and end users, this classification simplifies compliance planning while ensuring robust performance for everyday industrial applications.
The CZ Series products carry Canadian certification references (UL) for data, signal, control and power applications, as well as area classifications indicating suitability for ordinary/non-hazardous locations. This provides regulatory alignment for projects in Canada and similar markets, supporting risk-managed deployment of Roughneck connectors.
Maintenance benefits come from gold-plated contacts that resist corrosion, reducing contact resistance over time and extending service life. ROI is driven by standardized 30A power handling, field-installable crimp connections, and compatibility with existing CZ insert kits, which lowers spare-parts inventory, reduces downtime, and accelerates expansions or redesigns of control panels.
